| void | setup () override |
| |
| void | write_state (light::LightState *state) override |
| |
| float | get_setup_priority () const override |
| |
| int32_t | size () const override |
| |
| light::LightTraits | get_traits () override |
| |
| void | set_pin (uint8_t pin) |
| |
| void | set_inverted (bool inverted) |
| |
| void | set_num_leds (uint16_t num_leds) |
| |
| void | set_is_rgbw (bool is_rgbw) |
| |
| void | set_is_wrgb (bool is_wrgb) |
| |
| void | set_use_dma (bool use_dma) |
| |
| void | set_use_psram (bool use_psram) |
| |
| void | set_max_refresh_rate (uint32_t interval_us) |
| | Set a maximum refresh rate in µs as some lights do not like being updated too often.
|
| |
| void | set_led_params (uint32_t bit0_high, uint32_t bit0_low, uint32_t bit1_high, uint32_t bit1_low, uint32_t reset_time_high, uint32_t reset_time_low) |
| |
| void | set_rgb_order (RGBOrder rgb_order) |
| |
| void | set_rmt_symbols (uint32_t rmt_symbols) |
| |
| void | clear_effect_data () override |
| |
| void | dump_config () override |
| |
| ESPColorView | operator[] (int32_t index) const |
| |
| ESPColorView | get (int32_t index) |
| |
| ESPRangeView | range (int32_t from, int32_t to) |
| |
| ESPRangeView | all () |
| |
| ESPRangeIterator | begin () |
| |
| ESPRangeIterator | end () |
| |
| void | shift_left (int32_t amnt) |
| |
| void | shift_right (int32_t amnt) |
| |
| bool | is_effect_active () const |
| |
| void | set_effect_active (bool effect_active) |
| |
| std::unique_ptr< LightTransformer > | create_default_transition () override |
| |
| void | set_correction (float red, float green, float blue, float white=1.0f) |
| |
| void | setup_state (LightState *state) override |
| |
| void | update_state (LightState *state) override |
| |
| void | schedule_show () |
| |
| void | set_power_supply (power_supply::PowerSupply *power_supply) |
| |
| void | call_setup () override |
| |
| virtual void | loop () |
| | This method will be called repeatedly.
|
| |
| float | get_actual_setup_priority () const |
| |
| void | set_setup_priority (float priority) |
| |
| void | call () |
| |
| virtual void | on_shutdown () |
| |
| virtual void | on_safe_shutdown () |
| |
| virtual bool | teardown () |
| | Called during teardown to allow component to gracefully finish operations.
|
| |
| virtual void | on_powerdown () |
| | Called after teardown is complete to power down hardware.
|
| |
| uint8_t | get_component_state () const |
| |
| void | reset_to_construction_state () |
| | Reset this component back to the construction state to allow setup to run again.
|
| |
| bool | is_in_loop_state () const |
| | Check if this component has completed setup and is in the loop state.
|
| |
| bool | is_idle () const |
| | Check if this component is idle.
|
| |
| void | mark_failed () |
| | Mark this component as failed.
|
| |
| | ESPDEPRECATED ("Use mark_failed(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void mark_failed(const char *message) |
| |
| void | mark_failed (const LogString *message) |
| |
| void | disable_loop () |
| | Disable this component's loop.
|
| |
| void | enable_loop () |
| | Enable this component's loop.
|
| |
| void | enable_loop_soon_any_context () |
| | Thread and ISR-safe version of enable_loop() that can be called from any context.
|
| |
| bool | is_failed () const |
| |
| bool | is_ready () const |
| |
| virtual bool | can_proceed () |
| |
| bool | status_has_warning () const |
| |
| bool | status_has_error () const |
| |
| void | status_set_warning () |
| |
| void | status_set_warning (const char *message) |
| |
| void | status_set_warning (const LogString *message) |
| |
| void | status_set_error () |
| |
| | ESPDEPRECATED ("Use status_set_error(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void status_set_error(const char *message) |
| |
| void | status_set_error (const LogString *message) |
| |
| void | status_clear_warning () |
| |
| void | status_clear_error () |
| |
| void | status_momentary_warning (const char *name, uint32_t length=5000) |
| | Set warning status flag and automatically clear it after a timeout.
|
| |
| void | status_momentary_error (const char *name, uint32_t length=5000) |
| | Set error status flag and automatically clear it after a timeout.
|
| |
| bool | has_overridden_loop () const |
| |
| const LogString * | get_component_log_str () const ESPHOME_ALWAYS_INLINE |
| | Get the integration where this component was declared as a LogString for logging.
|
| |
| bool | should_warn_of_blocking (uint32_t blocking_time) |
| |
|
| light::ESPColorView | get_view_internal (int32_t index) const override |
| |
| size_t | get_buffer_size_ () const |
| |
| void | mark_shown_ () |
| |
| friend | void::setup () |
| |
| friend | void::original_setup () |
| |
| void | set_component_source_ (uint8_t index) |
| | Set where this component was loaded from for some debug messages.
|
| |
| void | call_dump_config_ () |
| |
| void | enable_loop_slow_path_ () |
| |
| void | set_component_state_ (uint8_t state) |
| | Helper to set component state (clears state bits and sets new state)
|
| |
| bool | set_status_flag_ (uint8_t flag) |
| | Helper to set a status LED flag on both this component and the app.
|
| |
| void | set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f) |
| | Set an interval function with a numeric ID (zero heap allocation).
|
| |
| void | set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f) |
| |
| void | set_interval (uint32_t interval, std::function< void()> &&f) |
| |
| bool | cancel_interval (uint32_t id) |
| |
| bool | cancel_interval (InternalSchedulerID id) |
| |
| ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std | ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const char *name |
| |
| | ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t id |
| |
| | ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t initial_wait_time |
| |
| ESPDEPRECATED("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const std | ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const char *name) |
| |
| | ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(uint32_t id) |
| |
| void | set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f) |
| | Set a timeout function with a numeric ID (zero heap allocation).
|
| |
| void | set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f) |
| |
| void | set_timeout (uint32_t timeout, std::function< void()> &&f) |
| |
| bool | cancel_timeout (uint32_t id) |
| |
| bool | cancel_timeout (InternalSchedulerID id) |
| |
| void | defer (std::function< void()> &&f) |
| | Defer a callback to the next loop() call.
|
| |
| void | defer (uint32_t id, std::function< void()> &&f) |
| | Defer a callback with a numeric ID (zero heap allocation)
|
| |
| bool | cancel_defer (uint32_t id) |
| |
| void | status_clear_warning_slow_path_ () |
| |
| void | status_clear_error_slow_path_ () |
| |
|
| uint8_t * | buf_ {nullptr} |
| |
| uint8_t * | effect_data_ {nullptr} |
| |
| LedParams | params_ |
| |
| rmt_channel_handle_t | channel_ {nullptr} |
| |
| rmt_encoder_handle_t | encoder_ {nullptr} |
| |
| uint8_t * | rmt_buf_ {nullptr} |
| |
| rmt_symbol_word_t * | rmt_buf_ {nullptr} |
| |
| uint32_t | rmt_symbols_ {48} |
| |
| uint8_t | pin_ |
| |
| uint16_t | num_leds_ |
| |
| bool | is_rgbw_ {false} |
| |
| bool | is_wrgb_ {false} |
| |
| bool | use_dma_ {false} |
| |
| bool | use_psram_ {false} |
| |
| bool | invert_out_ {false} |
| |
| RGBOrder | rgb_order_ {ORDER_RGB} |
| |
| uint32_t | last_refresh_ {0} |
| |
| optional< uint32_t > | max_refresh_rate_ {} |
| |
| ESPColorCorrection | correction_ {} |
| |
| LightState * | state_parent_ {nullptr} |
| |
| power_supply::PowerSupplyRequester | power_ |
| |
| bool | effect_active_ {false} |
| |
| ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_interval(const std voi | set_interval )(const char *name, uint32_t interval, std::function< void()> &&f) |
| | Set an interval function with a unique name.
|
| |
| ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_interval(const std boo | cancel_interval )(const char *name) |
| | Cancel an interval function.
|
| |
| ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t | initial_wait_time |
| |
| ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t | max_attempts |
| |
| ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> && | f |
| |
| ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> float | backoff_increase_factor = 1.0f) |
| |
| uint32_t | initial_wait_time |
| |
| uint32_t uint8_t | max_attempts |
| |
| uint32_t uint8_t std::function< RetryResult(uint8_t)> && | f |
| |
| uint32_t uint8_t std::function< RetryResult(uint8_t)> float | backoff_increase_factor = 1.0f) |
| |
| uint8_t | max_attempts |
| |
| uint8_t std::function< RetryResult(uint8_t)> && | f |
| |
| uint8_t std::function< RetryResult(uint8_t)> float | backoff_increase_factor = 1.0f) |
| |
| ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_timeout(const std voi | set_timeout )(const char *name, uint32_t timeout, std::function< void()> &&f) |
| | Set a timeout function with a unique name.
|
| |
| ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_timeout(const std boo | cancel_timeout )(const char *name) |
| | Cancel a timeout function.
|
| |
| ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") void defer(const std voi | defer )(const char *name, std::function< void()> &&f) |
| | Defer a callback to the next loop() call.
|
| |
| ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_defer(const std boo | cancel_defer )(const char *name) |
| | Cancel a defer callback using the specified name, name must not be empty.
|
| |
| uint8_t | component_source_index_ {0} |
| | Index into component source PROGMEM lookup table (0 = not set)
|
| |
| uint8_t | warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS} |
| | Warn threshold in centiseconds (max 2550ms)
|
| |
| uint8_t | component_state_ {0x00} |
| | State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.
|
| |
| volatile bool | pending_enable_loop_ {false} |
| | ISR-safe flag for enable_loop_soon_any_context.
|
| |
| ComponentRuntimeStats | runtime_stats_ |
| |
Definition at line 33 of file led_strip.h.

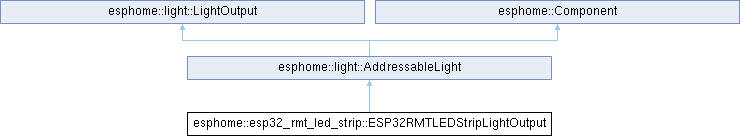

Public Member Functions inherited from esphome::light::AddressableLight
