#include <proto.h>

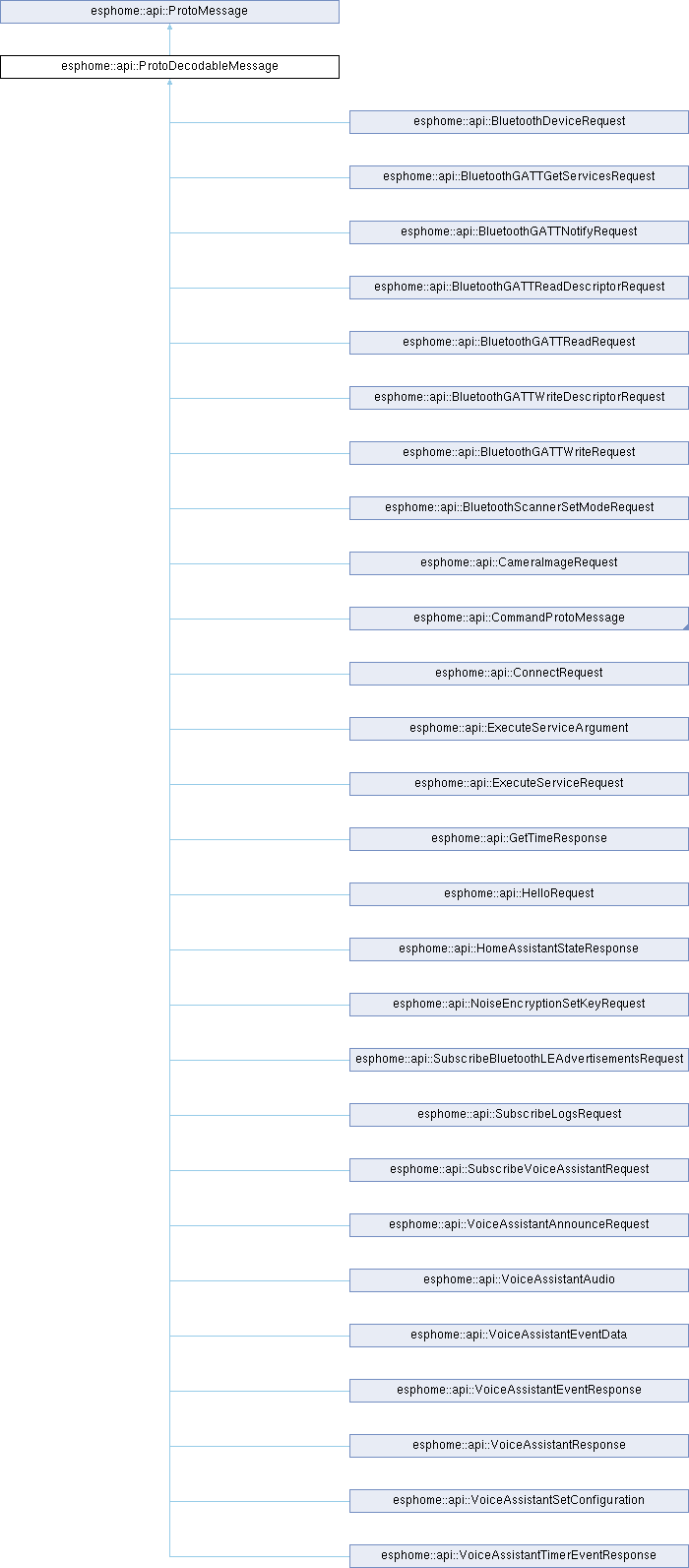

Inheritance diagram for esphome::api::ProtoDecodableMessage:

Public Types
using	DecodeFieldFn = void ()(void msg, uint32_t tag, const uint8_t *data, proto_varint_value_t scalar)
	Stores one decoded field into `msg`; generated per message type.

Static Public Member Functions
static void	decode_fields (void msg, const uint8_t buffer, size_t length, DecodeFieldFn field)
	Walk `buffer` and hand every field to `field`.

static uint32_t	count_repeated_field (const uint8_t *buffer, size_t length, uint32_t target_field_id)
	Count occurrences of a repeated field in a protobuf buffer.

Static Public Member Functions inherited from esphome::api::ProtoMessage
static uint8_t *	encode_msg (const void self, uint8_t pos PROTO_ENCODE_DEBUG_PARAM)

static uint32_t	calc_size_msg (const void *self)

Additional Inherited Members
Public Member Functions inherited from esphome::api::ProtoMessage
uint8_t *	encode (ProtoWriteBuffer &buffer PROTO_ENCODE_DEBUG_PARAM) const

uint32_t	calculate_size () const

virtual const char *	dump_to (DumpBuffer &out) const =0

virtual const LogString *	message_name () const

Protected Member Functions inherited from esphome::api::ProtoMessage
	~ProtoMessage ()=default

Detailed Description

Definition at line 745 of file proto.h.

Member Typedef Documentation

◆ DecodeFieldFn

using esphome::api::ProtoDecodableMessage::DecodeFieldFn = void (*)(void *msg, uint32_t tag, const uint8_t *data, proto_varint_value_t scalar)

Stores one decoded field into msg; generated per message type.

scalar is the varint or fixed32 value, or the length of the length-delimited payload at data. An unknown field or wrong wire type matches no case and is skipped.

Definition at line 750 of file proto.h.

Member Function Documentation

◆ count_repeated_field()

uint32_t esphome::api::ProtoDecodableMessage::count_repeated_field	(	const uint8_t *	buffer,
		size_t	length,
		uint32_t	target_field_id )

static

Count occurrences of a repeated field in a protobuf buffer.

This is a lightweight scan that only parses tags and skips field data.

Parameters

buffer	Pointer to the protobuf buffer
length	Length of the buffer in bytes
target_field_id	The field ID to count

Returns: Number of times the field appears in the buffer

Definition at line 60 of file proto.cpp.

◆ decode_fields()

void esphome::api::ProtoDecodableMessage::decode_fields	(	void *	msg,
		const uint8_t *	buffer,
		size_t	length,
		DecodeFieldFn	field )

static

Walk buffer and hand every field to field.

The generated decode() passes the message's own decode_field, so decodable messages carry no vtable.

Definition at line 205 of file proto.cpp.

The documentation for this class was generated from the following files:

esphome/components/api/proto.h
esphome/components/api/proto.cpp
