#include <atm90e32.h>

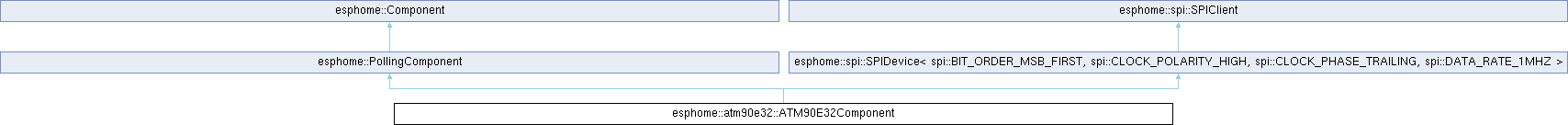

Inheritance diagram for esphome::atm90e32::ATM90E32Component:

Data Structures
struct	ATM90E32Phase

struct	GainCalibration

struct	OffsetCalibration

struct	PowerOffsetCalibration

Public Member Functions
void	loop () override

void	setup () override

void	dump_config () override

float	get_setup_priority () const override

void	update () override

void	set_voltage_sensor (int phase, sensor::Sensor *obj)

void	set_current_sensor (int phase, sensor::Sensor *obj)

void	set_power_sensor (int phase, sensor::Sensor *obj)

void	set_reactive_power_sensor (int phase, sensor::Sensor *obj)

void	set_apparent_power_sensor (int phase, sensor::Sensor *obj)

void	set_forward_active_energy_sensor (int phase, sensor::Sensor *obj)

void	set_reverse_active_energy_sensor (int phase, sensor::Sensor *obj)

void	set_power_factor_sensor (int phase, sensor::Sensor *obj)

void	set_phase_angle_sensor (int phase, sensor::Sensor *obj)

void	set_harmonic_active_power_sensor (int phase, sensor::Sensor *obj)

void	set_peak_current_sensor (int phase, sensor::Sensor *obj)

void	set_volt_gain (int phase, uint16_t gain)

void	set_ct_gain (int phase, uint16_t gain)

void	set_voltage_offset (uint8_t phase, int16_t offset)

void	set_current_offset (uint8_t phase, int16_t offset)

void	set_active_power_offset (uint8_t phase, int16_t offset)

void	set_reactive_power_offset (uint8_t phase, int16_t offset)

void	set_freq_sensor (sensor::Sensor *freq_sensor)

void	set_peak_current_signed (bool flag)

void	set_chip_temperature_sensor (sensor::Sensor *chip_temperature_sensor)

void	set_line_freq (int freq)

void	set_current_phases (int phases)

void	set_pga_gain (uint16_t gain)

void	run_offset_calibrations ()

void	run_power_offset_calibrations ()

void	clear_offset_calibrations ()

void	clear_power_offset_calibrations ()

void	clear_gain_calibrations ()

void	set_enable_offset_calibration (bool flag)

void	set_enable_gain_calibration (bool flag)

int16_t	calibrate_offset (uint8_t phase, bool voltage)

int16_t	calibrate_power_offset (uint8_t phase, bool reactive)

void	run_gain_calibrations ()

void	set_reference_voltage (uint8_t phase, number::Number *ref_voltage)

void	set_reference_current (uint8_t phase, number::Number *ref_current)

float	get_reference_voltage (uint8_t phase)

float	get_reference_current (uint8_t phase)

void	check_phase_status ()

void	check_freq_status ()

void	check_over_current ()

void	set_phase_status_text_sensor (uint8_t phase, text_sensor::TextSensor *sensor)

void	set_freq_status_text_sensor (text_sensor::TextSensor *sensor)

uint16_t	calculate_voltage_threshold (int line_freq, uint16_t ugain, float multiplier)

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

uint32_t	get_component_state () const

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message="unspecified")

void	status_set_error (const char *message="unspecified")

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Public Member Functions inherited from esphome::spi::SPIDevice< spi::BIT_ORDER_MSB_FIRST, spi::CLOCK_POLARITY_HIGH, spi::CLOCK_PHASE_TRAILING, spi::DATA_RATE_1MHZ >
	SPIDevice ()

	SPIDevice (SPIComponent parent, GPIOPin cs_pin)

void	spi_setup () override

void	spi_teardown () override

void	set_spi_parent (SPIComponent *parent)

void	set_cs_pin (GPIOPin *cs)

void	set_data_rate (uint32_t data_rate)

void	set_bit_order (SPIBitOrder order)

void	set_mode (SPIMode mode)

uint8_t	read_byte ()

void	read_array (uint8_t *data, size_t length)

void	write (uint16_t data, size_t num_bits)
	Write a single data item, up to 32 bits.

void	write_cmd_addr_data (size_t cmd_bits, uint32_t cmd, size_t addr_bits, uint32_t address, const uint8_t *data, size_t length, uint8_t bus_width=1)

void	write_byte (uint8_t data)

void	transfer_array (uint8_t *data, size_t length)
	Write the array data, replace with received data.

void	transfer_array (std::array< uint8_t, N > &data)

uint8_t	transfer_byte (uint8_t data)

void	write_byte16 (uint16_t data)
	Write 16 bit data.

void	write_array16 (const uint16_t *data, size_t length)
	Write an array of data as 16 bit values, byte-swapping if required.

void	enable ()

void	disable ()

void	write_array (const uint8_t *data, size_t length)

void	write_array (const std::array< uint8_t, N > &data)

void	write_array (const std::vector< uint8_t > &data)

Public Member Functions inherited from esphome::spi::SPIClient
	SPIClient (SPIBitOrder bit_order, SPIMode mode, uint32_t data_rate)

bool	spi_is_ready ()

Data Fields
const char *	phase_labels [3] = {"A", "B", "C"}

const uint16_t	voltage_gain_registers [3]

const uint16_t	current_gain_registers [3]

const uint16_t	voltage_offset_registers [3]

const uint16_t	current_offset_registers [3]

const uint16_t	power_offset_registers [3]

const uint16_t	reactive_power_offset_registers [3]

const uint16_t	over_voltage_flags [3]

const uint16_t	voltage_sag_flags [3]

const uint16_t	phase_loss_flags [3]

bool	using_saved_calibrations_ = false

int32_t	last_periodic_millis = millis()

Static Public Attributes
static const uint8_t	PHASEA = 0

static const uint8_t	PHASEB = 1

static const uint8_t	PHASEC = 2

Protected Member Functions
uint16_t	read16_ (uint16_t a_register)

int	read32_ (uint16_t addr_h, uint16_t addr_l)

void	write16_ (uint16_t a_register, uint16_t val)

float	get_local_phase_voltage_ (uint8_t phase)

float	get_local_phase_current_ (uint8_t phase)

float	get_local_phase_active_power_ (uint8_t phase)

float	get_local_phase_reactive_power_ (uint8_t phase)

float	get_local_phase_apparent_power_ (uint8_t phase)

float	get_local_phase_power_factor_ (uint8_t phase)

float	get_local_phase_forward_active_energy_ (uint8_t phase)

float	get_local_phase_reverse_active_energy_ (uint8_t phase)

float	get_local_phase_angle_ (uint8_t phase)

float	get_local_phase_harmonic_active_power_ (uint8_t phase)

float	get_local_phase_peak_current_ (uint8_t phase)

float	get_phase_voltage_ (uint8_t phase)

float	get_phase_voltage_avg_ (uint8_t phase)

float	get_phase_current_ (uint8_t phase)

float	get_phase_current_avg_ (uint8_t phase)

float	get_phase_active_power_ (uint8_t phase)

float	get_phase_reactive_power_ (uint8_t phase)

float	get_phase_apparent_power_ (uint8_t phase)

float	get_phase_power_factor_ (uint8_t phase)

float	get_phase_forward_active_energy_ (uint8_t phase)

float	get_phase_reverse_active_energy_ (uint8_t phase)

float	get_phase_angle_ (uint8_t phase)

float	get_phase_harmonic_active_power_ (uint8_t phase)

float	get_phase_peak_current_ (uint8_t phase)

float	get_frequency_ ()

float	get_chip_temperature_ ()

bool	get_publish_interval_flag_ ()

void	set_publish_interval_flag_ (bool flag)

void	restore_offset_calibrations_ ()

void	restore_power_offset_calibrations_ ()

void	restore_gain_calibrations_ ()

void	save_gain_calibration_to_memory_ ()

void	write_offsets_to_registers_ (uint8_t phase, int16_t voltage_offset, int16_t current_offset)

void	write_power_offsets_to_registers_ (uint8_t phase, int16_t p_offset, int16_t q_offset)

void	write_gains_to_registers_ ()

bool	verify_gain_writes_ ()

bool	validate_spi_read_ (uint16_t expected, const char *context=nullptr)

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_dump_config ()

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
number::Number *	ref_voltages_ [3] {nullptr, nullptr, nullptr}

number::Number *	ref_currents_ [3] {nullptr, nullptr, nullptr}

struct esphome::atm90e32::ATM90E32Component::ATM90E32Phase	phase_ [3]

struct esphome::atm90e32::ATM90E32Component::OffsetCalibration	offset_phase_ [3]

struct esphome::atm90e32::ATM90E32Component::PowerOffsetCalibration	power_offset_phase_ [3]

struct esphome::atm90e32::ATM90E32Component::GainCalibration	gain_phase_ [3]

ESPPreferenceObject	offset_pref_

ESPPreferenceObject	power_offset_pref_

ESPPreferenceObject	gain_calibration_pref_

sensor::Sensor *	freq_sensor_ {nullptr}

text_sensor::TextSensor *	phase_status_text_sensor_ [3] {nullptr}

text_sensor::TextSensor *	freq_status_text_sensor_ {nullptr}

sensor::Sensor *	chip_temperature_sensor_ {nullptr}

uint16_t	pga_gain_ {0x15}

int	line_freq_ {60}

int	current_phases_ {3}

bool	publish_interval_flag_ {false}

bool	peak_current_signed_ {false}

bool	enable_offset_calibration_ {false}

bool	enable_gain_calibration_ {false}

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
uint32_t	component_state_ {0x0000}
	State of this component.

float	setup_priority_override_ {NAN}

const char *	component_source_ {nullptr}

uint32_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}

std::string	error_message_ {}

Protected Attributes inherited from esphome::spi::SPIClient
SPIBitOrder	bit_order_ {BIT_ORDER_MSB_FIRST}

SPIMode	mode_ {MODE0}

uint32_t	data_rate_ {1000000}

SPIComponent *	parent_ {nullptr}

GPIOPin *	cs_ {nullptr}

SPIDelegate *	delegate_ {SPIDelegate::NULL_DELEGATE}

Detailed Description

Definition at line 15 of file atm90e32.h.

Member Function Documentation

◆ calculate_voltage_threshold()

uint16_t esphome::atm90e32::ATM90E32Component::calculate_voltage_threshold	(	int	line_freq,
		uint16_t	ugain,
		float	multiplier )

Definition at line 845 of file atm90e32.cpp.

◆ calibrate_offset()

int16_t esphome::atm90e32::ATM90E32Component::calibrate_offset	(	uint8_t	phase,
		bool	voltage )

Definition at line 732 of file atm90e32.cpp.

◆ calibrate_power_offset()

int16_t esphome::atm90e32::ATM90E32Component::calibrate_power_offset	(	uint8_t	phase,
		bool	reactive )

Definition at line 748 of file atm90e32.cpp.

◆ check_freq_status()

void esphome::atm90e32::ATM90E32Component::check_freq_status ( )

Definition at line 808 of file atm90e32.cpp.

◆ check_over_current()

void esphome::atm90e32::ATM90E32Component::check_over_current ( )

Definition at line 827 of file atm90e32.cpp.

◆ check_phase_status()

void esphome::atm90e32::ATM90E32Component::check_phase_status ( )

Definition at line 779 of file atm90e32.cpp.

◆ clear_gain_calibrations()

void esphome::atm90e32::ATM90E32Component::clear_gain_calibrations ( )

Definition at line 688 of file atm90e32.cpp.

◆ clear_offset_calibrations()

void esphome::atm90e32::ATM90E32Component::clear_offset_calibrations ( )

Definition at line 712 of file atm90e32.cpp.

◆ clear_power_offset_calibrations()

void esphome::atm90e32::ATM90E32Component::clear_power_offset_calibrations ( )

Definition at line 722 of file atm90e32.cpp.

◆ dump_config()

void esphome::atm90e32::ATM90E32Component::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 216 of file atm90e32.cpp.

◆ get_chip_temperature_()

float esphome::atm90e32::ATM90E32Component::get_chip_temperature_ ( )

protected

Definition at line 438 of file atm90e32.cpp.

◆ get_frequency_()

float esphome::atm90e32::ATM90E32Component::get_frequency_ ( )

protected

Definition at line 433 of file atm90e32.cpp.

◆ get_local_phase_active_power_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_active_power_ ( uint8_t phase )

protected

Definition at line 308 of file atm90e32.cpp.

◆ get_local_phase_angle_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_angle_ ( uint8_t phase )

protected

Definition at line 324 of file atm90e32.cpp.

◆ get_local_phase_apparent_power_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_apparent_power_ ( uint8_t phase )

protected

Definition at line 312 of file atm90e32.cpp.

◆ get_local_phase_current_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_current_ ( uint8_t phase )

protected

Definition at line 306 of file atm90e32.cpp.

◆ get_local_phase_forward_active_energy_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_forward_active_energy_ ( uint8_t phase )

protected

Definition at line 316 of file atm90e32.cpp.

◆ get_local_phase_harmonic_active_power_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_harmonic_active_power_ ( uint8_t phase )

protected

Definition at line 326 of file atm90e32.cpp.

◆ get_local_phase_peak_current_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_peak_current_ ( uint8_t phase )

protected

Definition at line 330 of file atm90e32.cpp.

◆ get_local_phase_power_factor_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_power_factor_ ( uint8_t phase )

protected

Definition at line 314 of file atm90e32.cpp.

◆ get_local_phase_reactive_power_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_reactive_power_ ( uint8_t phase )

protected

Definition at line 310 of file atm90e32.cpp.

◆ get_local_phase_reverse_active_energy_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_reverse_active_energy_ ( uint8_t phase )

protected

Definition at line 320 of file atm90e32.cpp.

◆ get_local_phase_voltage_()

float esphome::atm90e32::ATM90E32Component::get_local_phase_voltage_ ( uint8_t phase )

protected

Definition at line 304 of file atm90e32.cpp.

◆ get_phase_active_power_()

float esphome::atm90e32::ATM90E32Component::get_phase_active_power_ ( uint8_t phase )

protected

Definition at line 372 of file atm90e32.cpp.

◆ get_phase_angle_()

float esphome::atm90e32::ATM90E32Component::get_phase_angle_ ( uint8_t phase )

protected

Definition at line 420 of file atm90e32.cpp.

◆ get_phase_apparent_power_()

float esphome::atm90e32::ATM90E32Component::get_phase_apparent_power_ ( uint8_t phase )

protected

Definition at line 382 of file atm90e32.cpp.

◆ get_phase_current_()

float esphome::atm90e32::ATM90E32Component::get_phase_current_ ( uint8_t phase )

protected

Definition at line 366 of file atm90e32.cpp.

◆ get_phase_current_avg_()

float esphome::atm90e32::ATM90E32Component::get_phase_current_avg_ ( uint8_t phase )

protected

Definition at line 352 of file atm90e32.cpp.

◆ get_phase_forward_active_energy_()

float esphome::atm90e32::ATM90E32Component::get_phase_forward_active_energy_ ( uint8_t phase )

protected

Definition at line 393 of file atm90e32.cpp.

◆ get_phase_harmonic_active_power_()

float esphome::atm90e32::ATM90E32Component::get_phase_harmonic_active_power_ ( uint8_t phase )

protected

Definition at line 415 of file atm90e32.cpp.

◆ get_phase_peak_current_()

float esphome::atm90e32::ATM90E32Component::get_phase_peak_current_ ( uint8_t phase )

protected

Definition at line 425 of file atm90e32.cpp.

◆ get_phase_power_factor_()

float esphome::atm90e32::ATM90E32Component::get_phase_power_factor_ ( uint8_t phase )

protected

Definition at line 387 of file atm90e32.cpp.

◆ get_phase_reactive_power_()

float esphome::atm90e32::ATM90E32Component::get_phase_reactive_power_ ( uint8_t phase )

protected

Definition at line 377 of file atm90e32.cpp.

◆ get_phase_reverse_active_energy_()

float esphome::atm90e32::ATM90E32Component::get_phase_reverse_active_energy_ ( uint8_t phase )

protected

Definition at line 404 of file atm90e32.cpp.

◆ get_phase_voltage_()

float esphome::atm90e32::ATM90E32Component::get_phase_voltage_ ( uint8_t phase )

protected

Definition at line 332 of file atm90e32.cpp.

◆ get_phase_voltage_avg_()

float esphome::atm90e32::ATM90E32Component::get_phase_voltage_avg_ ( uint8_t phase )

protected

Definition at line 338 of file atm90e32.cpp.

◆ get_publish_interval_flag_()

bool esphome::atm90e32::ATM90E32Component::get_publish_interval_flag_ ( )

inlineprotected

Definition at line 157 of file atm90e32.h.

◆ get_reference_current()

float esphome::atm90e32::ATM90E32Component::get_reference_current ( uint8_t phase )

inline

Definition at line 103 of file atm90e32.h.

◆ get_reference_voltage()

float esphome::atm90e32::ATM90E32Component::get_reference_voltage ( uint8_t phase )

inline

Definition at line 96 of file atm90e32.h.

◆ get_setup_priority()

float esphome::atm90e32::ATM90E32Component::get_setup_priority ( ) const

overridevirtual

Reimplemented from esphome::Component.

Definition at line 260 of file atm90e32.cpp.

◆ loop()

void esphome::atm90e32::ATM90E32Component::loop ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 10 of file atm90e32.cpp.

◆ read16_()

uint16_t esphome::atm90e32::ATM90E32Component::read16_ ( uint16_t a_register )

protected

Definition at line 265 of file atm90e32.cpp.

◆ read32_()

int esphome::atm90e32::ATM90E32Component::read32_	(	uint16_t	addr_h,
		uint16_t	addr_l )

protected

Definition at line 282 of file atm90e32.cpp.

◆ restore_gain_calibrations_()

void esphome::atm90e32::ATM90E32Component::restore_gain_calibrations_ ( )

protected

Definition at line 633 of file atm90e32.cpp.

◆ restore_offset_calibrations_()

void esphome::atm90e32::ATM90E32Component::restore_offset_calibrations_ ( )

protected

Definition at line 658 of file atm90e32.cpp.

◆ restore_power_offset_calibrations_()

void esphome::atm90e32::ATM90E32Component::restore_power_offset_calibrations_ ( )

protected

Definition at line 673 of file atm90e32.cpp.

◆ run_gain_calibrations()

void esphome::atm90e32::ATM90E32Component::run_gain_calibrations ( )

Definition at line 443 of file atm90e32.cpp.

◆ run_offset_calibrations()

void esphome::atm90e32::ATM90E32Component::run_offset_calibrations ( )

Definition at line 550 of file atm90e32.cpp.

◆ run_power_offset_calibrations()

void esphome::atm90e32::ATM90E32Component::run_power_offset_calibrations ( )

Definition at line 569 of file atm90e32.cpp.

◆ save_gain_calibration_to_memory_()

void esphome::atm90e32::ATM90E32Component::save_gain_calibration_to_memory_ ( )

protected

Definition at line 539 of file atm90e32.cpp.

◆ set_active_power_offset()

void esphome::atm90e32::ATM90E32Component::set_active_power_offset	(	uint8_t	phase,
		int16_t	offset )

inline

Definition at line 68 of file atm90e32.h.

◆ set_apparent_power_sensor()

void esphome::atm90e32::ATM90E32Component::set_apparent_power_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 51 of file atm90e32.h.

◆ set_chip_temperature_sensor()

void esphome::atm90e32::ATM90E32Component::set_chip_temperature_sensor ( sensor::Sensor * chip_temperature_sensor )

inline

Definition at line 76 of file atm90e32.h.

◆ set_ct_gain()

void esphome::atm90e32::ATM90E32Component::set_ct_gain	(	int	phase,
		uint16_t	gain )

inline

Definition at line 65 of file atm90e32.h.

◆ set_current_offset()

void esphome::atm90e32::ATM90E32Component::set_current_offset	(	uint8_t	phase,
		int16_t	offset )

inline

Definition at line 67 of file atm90e32.h.

◆ set_current_phases()

void esphome::atm90e32::ATM90E32Component::set_current_phases ( int phases )

inline

Definition at line 80 of file atm90e32.h.

◆ set_current_sensor()

void esphome::atm90e32::ATM90E32Component::set_current_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 48 of file atm90e32.h.

◆ set_enable_gain_calibration()

void esphome::atm90e32::ATM90E32Component::set_enable_gain_calibration ( bool flag )

inline

Definition at line 88 of file atm90e32.h.

◆ set_enable_offset_calibration()

void esphome::atm90e32::ATM90E32Component::set_enable_offset_calibration ( bool flag )

inline

Definition at line 87 of file atm90e32.h.

◆ set_forward_active_energy_sensor()

void esphome::atm90e32::ATM90E32Component::set_forward_active_energy_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 52 of file atm90e32.h.

◆ set_freq_sensor()

void esphome::atm90e32::ATM90E32Component::set_freq_sensor ( sensor::Sensor * freq_sensor )

inline

Definition at line 74 of file atm90e32.h.

◆ set_freq_status_text_sensor()

void esphome::atm90e32::ATM90E32Component::set_freq_status_text_sensor ( text_sensor::TextSensor * sensor )

inline

Definition at line 118 of file atm90e32.h.

◆ set_harmonic_active_power_sensor()

void esphome::atm90e32::ATM90E32Component::set_harmonic_active_power_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 60 of file atm90e32.h.

◆ set_line_freq()

void esphome::atm90e32::ATM90E32Component::set_line_freq ( int freq )

inline

Definition at line 79 of file atm90e32.h.

◆ set_peak_current_sensor()

void esphome::atm90e32::ATM90E32Component::set_peak_current_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 63 of file atm90e32.h.

◆ set_peak_current_signed()

void esphome::atm90e32::ATM90E32Component::set_peak_current_signed ( bool flag )

inline

Definition at line 75 of file atm90e32.h.

◆ set_pga_gain()

void esphome::atm90e32::ATM90E32Component::set_pga_gain ( uint16_t gain )

inline

Definition at line 81 of file atm90e32.h.

◆ set_phase_angle_sensor()

void esphome::atm90e32::ATM90E32Component::set_phase_angle_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 59 of file atm90e32.h.

◆ set_phase_status_text_sensor()

void esphome::atm90e32::ATM90E32Component::set_phase_status_text_sensor	(	uint8_t	phase,
		text_sensor::TextSensor *	sensor )

inline

Definition at line 115 of file atm90e32.h.

◆ set_power_factor_sensor()

void esphome::atm90e32::ATM90E32Component::set_power_factor_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 58 of file atm90e32.h.

◆ set_power_sensor()

void esphome::atm90e32::ATM90E32Component::set_power_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 49 of file atm90e32.h.

◆ set_publish_interval_flag_()

void esphome::atm90e32::ATM90E32Component::set_publish_interval_flag_ ( bool flag )

inlineprotected

Definition at line 158 of file atm90e32.h.

◆ set_reactive_power_offset()

void esphome::atm90e32::ATM90E32Component::set_reactive_power_offset	(	uint8_t	phase,
		int16_t	offset )

inline

Definition at line 71 of file atm90e32.h.

◆ set_reactive_power_sensor()

void esphome::atm90e32::ATM90E32Component::set_reactive_power_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 50 of file atm90e32.h.

◆ set_reference_current()

void esphome::atm90e32::ATM90E32Component::set_reference_current	(	uint8_t	phase,
		number::Number *	ref_current )

inline

Definition at line 94 of file atm90e32.h.

◆ set_reference_voltage()

void esphome::atm90e32::ATM90E32Component::set_reference_voltage	(	uint8_t	phase,
		number::Number *	ref_voltage )

inline

Definition at line 93 of file atm90e32.h.

◆ set_reverse_active_energy_sensor()

void esphome::atm90e32::ATM90E32Component::set_reverse_active_energy_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 55 of file atm90e32.h.

◆ set_volt_gain()

void esphome::atm90e32::ATM90E32Component::set_volt_gain	(	int	phase,
		uint16_t	gain )

inline

Definition at line 64 of file atm90e32.h.

◆ set_voltage_offset()

void esphome::atm90e32::ATM90E32Component::set_voltage_offset	(	uint8_t	phase,
		int16_t	offset )

inline

Definition at line 66 of file atm90e32.h.

◆ set_voltage_sensor()

void esphome::atm90e32::ATM90E32Component::set_voltage_sensor	(	int	phase,
		sensor::Sensor *	obj )

inline

Definition at line 47 of file atm90e32.h.

◆ setup()

void esphome::atm90e32::ATM90E32Component::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 110 of file atm90e32.cpp.

◆ update()

void esphome::atm90e32::ATM90E32Component::update ( )

overridevirtual

Implements esphome::PollingComponent.

Definition at line 95 of file atm90e32.cpp.

◆ validate_spi_read_()

bool esphome::atm90e32::ATM90E32Component::validate_spi_read_	(	uint16_t	expected,
		const char *	context = nullptr )

protected

Definition at line 859 of file atm90e32.cpp.

◆ verify_gain_writes_()

bool esphome::atm90e32::ATM90E32Component::verify_gain_writes_ ( )

protected

Definition at line 763 of file atm90e32.cpp.

◆ write16_()

void esphome::atm90e32::ATM90E32Component::write16_	(	uint16_t	a_register,
		uint16_t	val )

protected

Definition at line 295 of file atm90e32.cpp.

◆ write_gains_to_registers_()

void esphome::atm90e32::ATM90E32Component::write_gains_to_registers_ ( )

protected

Definition at line 590 of file atm90e32.cpp.

◆ write_offsets_to_registers_()

void esphome::atm90e32::ATM90E32Component::write_offsets_to_registers_	(	uint8_t	phase,
		int16_t	voltage_offset,
		int16_t	current_offset )

protected

Definition at line 601 of file atm90e32.cpp.

◆ write_power_offsets_to_registers_()

void esphome::atm90e32::ATM90E32Component::write_power_offsets_to_registers_	(	uint8_t	phase,
		int16_t	p_offset,
		int16_t	q_offset )

protected

Definition at line 617 of file atm90e32.cpp.

Field Documentation

◆ chip_temperature_sensor_

sensor::Sensor* esphome::atm90e32::ATM90E32Component::chip_temperature_sensor_ {nullptr}

protected

Definition at line 226 of file atm90e32.h.

◆ current_gain_registers

const uint16_t esphome::atm90e32::ATM90E32Component::current_gain_registers[3]

Initial value:

= {ATM90E32_REGISTER_IGAINA, ATM90E32_REGISTER_IGAINB,

ATM90E32_REGISTER_IGAINC}

Definition at line 26 of file atm90e32.h.

◆ current_offset_registers

const uint16_t esphome::atm90e32::ATM90E32Component::current_offset_registers[3]

Initial value:

= {ATM90E32_REGISTER_IOFFSETA, ATM90E32_REGISTER_IOFFSETB,

ATM90E32_REGISTER_IOFFSETC}

Definition at line 30 of file atm90e32.h.

◆ current_phases_

int esphome::atm90e32::ATM90E32Component::current_phases_ {3}

protected

Definition at line 229 of file atm90e32.h.

◆ enable_gain_calibration_

bool esphome::atm90e32::ATM90E32Component::enable_gain_calibration_ {false}

protected

Definition at line 233 of file atm90e32.h.

◆ enable_offset_calibration_

bool esphome::atm90e32::ATM90E32Component::enable_offset_calibration_ {false}

protected

Definition at line 232 of file atm90e32.h.

◆ freq_sensor_

sensor::Sensor* esphome::atm90e32::ATM90E32Component::freq_sensor_ {nullptr}

protected

Definition at line 221 of file atm90e32.h.

◆ freq_status_text_sensor_

text_sensor::TextSensor* esphome::atm90e32::ATM90E32Component::freq_status_text_sensor_ {nullptr}

protected

Definition at line 224 of file atm90e32.h.

◆ gain_calibration_pref_

ESPPreferenceObject esphome::atm90e32::ATM90E32Component::gain_calibration_pref_

protected

Definition at line 219 of file atm90e32.h.

◆ gain_phase_

struct esphome::atm90e32::ATM90E32Component::GainCalibration esphome::atm90e32::ATM90E32Component::gain_phase_[3]

protected

◆ last_periodic_millis

int32_t esphome::atm90e32::ATM90E32Component::last_periodic_millis = millis()

Definition at line 121 of file atm90e32.h.

◆ line_freq_

int esphome::atm90e32::ATM90E32Component::line_freq_ {60}

protected

Definition at line 228 of file atm90e32.h.

◆ offset_phase_

struct esphome::atm90e32::ATM90E32Component::OffsetCalibration esphome::atm90e32::ATM90E32Component::offset_phase_[3]

protected

◆ offset_pref_

ESPPreferenceObject esphome::atm90e32::ATM90E32Component::offset_pref_

protected

Definition at line 217 of file atm90e32.h.

◆ over_voltage_flags

const uint16_t esphome::atm90e32::ATM90E32Component::over_voltage_flags[3]

Initial value:

= {ATM90E32_STATUS_S0_OVPHASEAST, ATM90E32_STATUS_S0_OVPHASEBST,

ATM90E32_STATUS_S0_OVPHASECST}

Definition at line 36 of file atm90e32.h.

◆ peak_current_signed_

bool esphome::atm90e32::ATM90E32Component::peak_current_signed_ {false}

protected

Definition at line 231 of file atm90e32.h.

◆ pga_gain_

uint16_t esphome::atm90e32::ATM90E32Component::pga_gain_ {0x15}

protected

Definition at line 227 of file atm90e32.h.

◆ phase_

struct esphome::atm90e32::ATM90E32Component::ATM90E32Phase esphome::atm90e32::ATM90E32Component::phase_[3]

protected

◆ phase_labels

const char* esphome::atm90e32::ATM90E32Component::phase_labels[3] = {"A", "B", "C"}

Definition at line 22 of file atm90e32.h.

◆ phase_loss_flags

const uint16_t esphome::atm90e32::ATM90E32Component::phase_loss_flags[3]

Initial value:

= {ATM90E32_STATUS_S1_PHASELOSSAST, ATM90E32_STATUS_S1_PHASELOSSBST,

ATM90E32_STATUS_S1_PHASELOSSCST}

Definition at line 40 of file atm90e32.h.

◆ phase_status_text_sensor_

text_sensor::TextSensor* esphome::atm90e32::ATM90E32Component::phase_status_text_sensor_[3] {nullptr}

protected

Definition at line 223 of file atm90e32.h.

◆ PHASEA

const uint8_t esphome::atm90e32::ATM90E32Component::PHASEA = 0

static

Definition at line 19 of file atm90e32.h.

◆ PHASEB

const uint8_t esphome::atm90e32::ATM90E32Component::PHASEB = 1

static

Definition at line 20 of file atm90e32.h.

◆ PHASEC

const uint8_t esphome::atm90e32::ATM90E32Component::PHASEC = 2

static

Definition at line 21 of file atm90e32.h.

◆ power_offset_phase_

struct esphome::atm90e32::ATM90E32Component::PowerOffsetCalibration esphome::atm90e32::ATM90E32Component::power_offset_phase_[3]

protected

◆ power_offset_pref_

ESPPreferenceObject esphome::atm90e32::ATM90E32Component::power_offset_pref_

protected

Definition at line 218 of file atm90e32.h.

◆ power_offset_registers

const uint16_t esphome::atm90e32::ATM90E32Component::power_offset_registers[3]

Initial value:

= {ATM90E32_REGISTER_POFFSETA, ATM90E32_REGISTER_POFFSETB,

ATM90E32_REGISTER_POFFSETC}

Definition at line 32 of file atm90e32.h.

◆ publish_interval_flag_

bool esphome::atm90e32::ATM90E32Component::publish_interval_flag_ {false}

protected

Definition at line 230 of file atm90e32.h.

◆ reactive_power_offset_registers

const uint16_t esphome::atm90e32::ATM90E32Component::reactive_power_offset_registers[3]

Initial value:

= {ATM90E32_REGISTER_QOFFSETA, ATM90E32_REGISTER_QOFFSETB,

ATM90E32_REGISTER_QOFFSETC}

Definition at line 34 of file atm90e32.h.

◆ ref_currents_

number::Number* esphome::atm90e32::ATM90E32Component::ref_currents_[3] {nullptr, nullptr, nullptr}

protected

Definition at line 126 of file atm90e32.h.

◆ ref_voltages_

number::Number* esphome::atm90e32::ATM90E32Component::ref_voltages_[3] {nullptr, nullptr, nullptr}

protected

Definition at line 125 of file atm90e32.h.

◆ using_saved_calibrations_

bool esphome::atm90e32::ATM90E32Component::using_saved_calibrations_ = false

Definition at line 110 of file atm90e32.h.

◆ voltage_gain_registers

const uint16_t esphome::atm90e32::ATM90E32Component::voltage_gain_registers[3]

Initial value:

= {ATM90E32_REGISTER_UGAINA, ATM90E32_REGISTER_UGAINB,

ATM90E32_REGISTER_UGAINC}

Definition at line 24 of file atm90e32.h.

◆ voltage_offset_registers

const uint16_t esphome::atm90e32::ATM90E32Component::voltage_offset_registers[3]

Initial value:

= {ATM90E32_REGISTER_UOFFSETA, ATM90E32_REGISTER_UOFFSETB,

ATM90E32_REGISTER_UOFFSETC}

Definition at line 28 of file atm90e32.h.

◆ voltage_sag_flags

const uint16_t esphome::atm90e32::ATM90E32Component::voltage_sag_flags[3]

Initial value:

= {ATM90E32_STATUS_S1_SAGPHASEAST, ATM90E32_STATUS_S1_SAGPHASEBST,

ATM90E32_STATUS_S1_SAGPHASECST}

Definition at line 38 of file atm90e32.h.

The documentation for this class was generated from the following files:

esphome/components/atm90e32/atm90e32.h
esphome/components/atm90e32/atm90e32.cpp

Data Structures

Public Member Functions

Data Fields

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ calculate_voltage_threshold()

◆ calibrate_offset()

◆ calibrate_power_offset()

◆ check_freq_status()

◆ check_over_current()

◆ check_phase_status()

◆ clear_gain_calibrations()

◆ clear_offset_calibrations()

◆ clear_power_offset_calibrations()

◆ dump_config()

◆ get_chip_temperature_()

◆ get_frequency_()

◆ get_local_phase_active_power_()

◆ get_local_phase_angle_()

◆ get_local_phase_apparent_power_()

◆ get_local_phase_current_()

◆ get_local_phase_forward_active_energy_()

◆ get_local_phase_harmonic_active_power_()

◆ get_local_phase_peak_current_()

◆ get_local_phase_power_factor_()

◆ get_local_phase_reactive_power_()

◆ get_local_phase_reverse_active_energy_()

◆ get_local_phase_voltage_()

◆ get_phase_active_power_()

◆ get_phase_angle_()

◆ get_phase_apparent_power_()

◆ get_phase_current_()

◆ get_phase_current_avg_()

◆ get_phase_forward_active_energy_()

◆ get_phase_harmonic_active_power_()

◆ get_phase_peak_current_()

◆ get_phase_power_factor_()

◆ get_phase_reactive_power_()

◆ get_phase_reverse_active_energy_()

◆ get_phase_voltage_()

◆ get_phase_voltage_avg_()

◆ get_publish_interval_flag_()

◆ get_reference_current()

◆ get_reference_voltage()

◆ get_setup_priority()

◆ loop()

◆ read16_()

◆ read32_()

◆ restore_gain_calibrations_()

◆ restore_offset_calibrations_()

◆ restore_power_offset_calibrations_()

◆ run_gain_calibrations()

◆ run_offset_calibrations()

◆ run_power_offset_calibrations()

◆ save_gain_calibration_to_memory_()

◆ set_active_power_offset()

◆ set_apparent_power_sensor()

◆ set_chip_temperature_sensor()

◆ set_ct_gain()

◆ set_current_offset()

◆ set_current_phases()

◆ set_current_sensor()

◆ set_enable_gain_calibration()

◆ set_enable_offset_calibration()

◆ set_forward_active_energy_sensor()

◆ set_freq_sensor()

◆ set_freq_status_text_sensor()

◆ set_harmonic_active_power_sensor()

◆ set_line_freq()

◆ set_peak_current_sensor()

◆ set_peak_current_signed()

◆ set_pga_gain()

◆ set_phase_angle_sensor()

◆ set_phase_status_text_sensor()

◆ set_power_factor_sensor()

◆ set_power_sensor()

◆ set_publish_interval_flag_()
