esphome::display::Display Class Reference

#include <display.h>

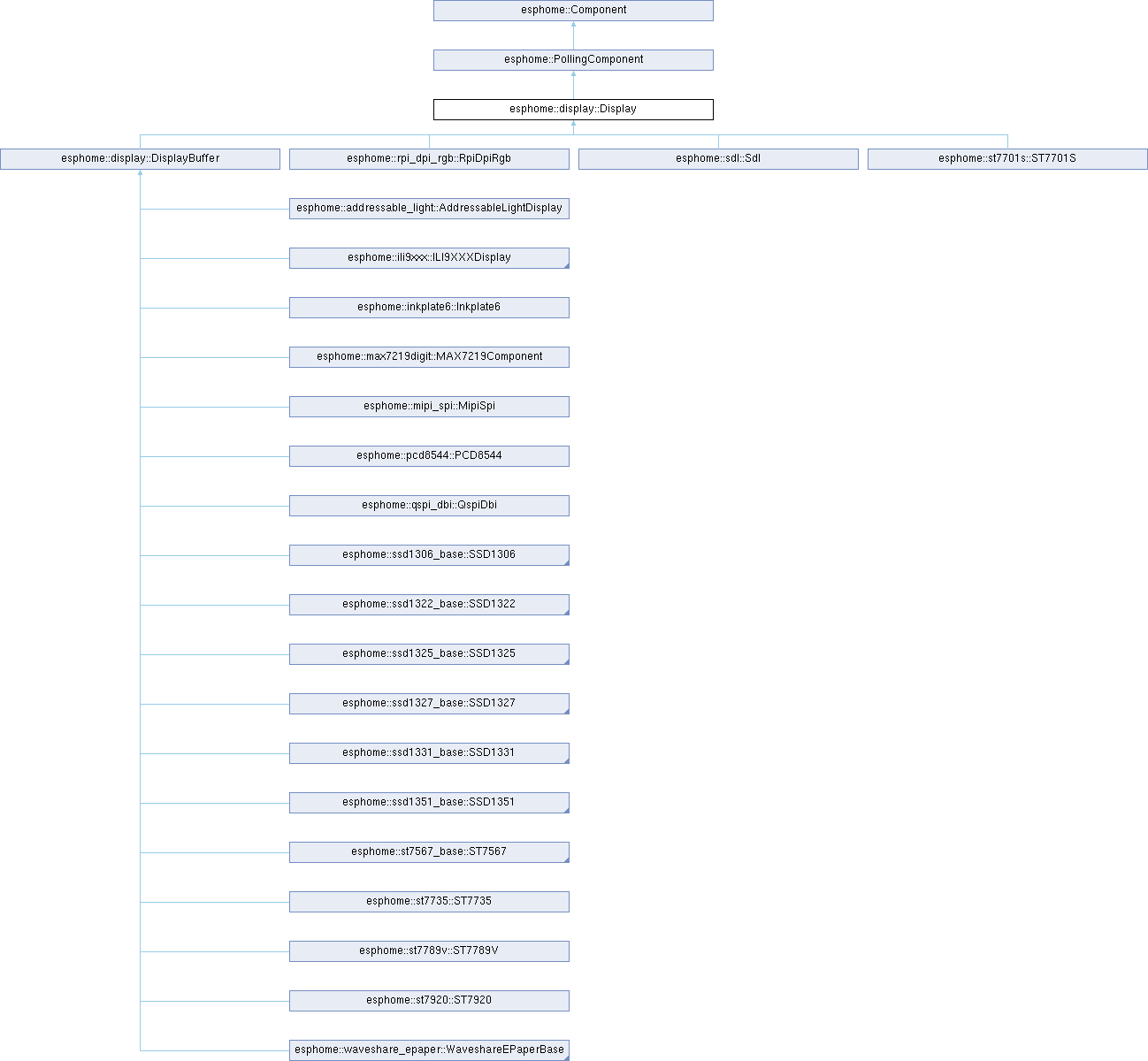

Inheritance diagram for esphome::display::Display:

Public Member Functions
virtual void	fill (Color color)
	Fill the entire screen with the given color.
virtual void	clear ()
	Clear the entire screen by filling it with OFF pixels.
virtual int	get_width ()
	Get the calculated width of the display in pixels with rotation applied.
virtual int	get_height ()
	Get the calculated height of the display in pixels with rotation applied.
int	get_native_width ()
	Get the native (original) width of the display in pixels.
int	get_native_height ()
	Get the native (original) height of the display in pixels.
void	draw_pixel_at (int x, int y)
	Set a single pixel at the specified coordinates to default color.
virtual void	draw_pixel_at (int x, int y, Color color)=0
	Set a single pixel at the specified coordinates to the given color.
virtual void	draw_pixels_at (int x_start, int y_start, int w, int h, const uint8_t *ptr, ColorOrder order, ColorBitness bitness, bool big_endian, int x_offset, int y_offset, int x_pad)
	Given an array of pixels encoded in the nominated format, draw these into the display's buffer.
void	draw_pixels_at (int x_start, int y_start, int w, int h, const uint8_t *ptr, ColorOrder order, ColorBitness bitness, bool big_endian)
	Convenience overload for base case where the pixels are packed into the buffer with no gaps (e.g. suits LVGL.)
void	line (int x1, int y1, int x2, int y2, Color color=COLOR_ON)
	Draw a straight line from the point [x1,y1] to [x2,y2] with the given color.
void	line_at_angle (int x, int y, int angle, int length, Color color=COLOR_ON)
	Draw a straight line at the given angle based on the origin [x, y] for a specified length with the given color.
void	line_at_angle (int x, int y, int angle, int start_radius, int stop_radius, Color color=COLOR_ON)
	Draw a straight line at the given angle based on the origin [x, y] from a specified start and stop radius with the given color.
void	horizontal_line (int x, int y, int width, Color color=COLOR_ON)
	Draw a horizontal line from the point [x,y] to [x+width,y] with the given color.
void	vertical_line (int x, int y, int height, Color color=COLOR_ON)
	Draw a vertical line from the point [x,y] to [x,y+width] with the given color.
void	rectangle (int x1, int y1, int width, int height, Color color=COLOR_ON)
	Draw the outline of a rectangle with the top left point at [x1,y1] and the bottom right point at [x1+width,y1+height].
void	filled_rectangle (int x1, int y1, int width, int height, Color color=COLOR_ON)
	Fill a rectangle with the top left point at [x1,y1] and the bottom right point at [x1+width,y1+height].
void	circle (int center_x, int center_xy, int radius, Color color=COLOR_ON)
	Draw the outline of a circle centered around [center_x,center_y] with the radius radius with the given color.
void	filled_circle (int center_x, int center_y, int radius, Color color=COLOR_ON)
	Fill a circle centered around [center_x,center_y] with the radius radius with the given color.
void	filled_ring (int center_x, int center_y, int radius1, int radius2, Color color=COLOR_ON)
	Fill a ring centered around [center_x,center_y] between two circles with the radius1 and radius2 with the given color.
void	filled_gauge (int center_x, int center_y, int radius1, int radius2, int progress, Color color=COLOR_ON)
	Fill a half-ring "gauge" centered around [center_x,center_y] between two circles with the radius1 and radius2 with he given color and filled up to 'progress' percent.
void	triangle (int x1, int y1, int x2, int y2, int x3, int y3, Color color=COLOR_ON)
	Draw the outline of a triangle contained between the points [x1,y1], [x2,y2] and [x3,y3] with the given color.
void	filled_triangle (int x1, int y1, int x2, int y2, int x3, int y3, Color color=COLOR_ON)
	Fill a triangle contained between the points [x1,y1], [x2,y2] and [x3,y3] with the given color.
void	get_regular_polygon_vertex (int vertex_id, int *vertex_x, int *vertex_y, int center_x, int center_y, int radius, int edges, RegularPolygonVariation variation=VARIATION_POINTY_TOP, float rotation_degrees=ROTATION_0_DEGREES)
	Get the specified vertex (x,y) coordinates for the regular polygon inscribed in the circle centered on [center_x,center_y] with the given radius.
void	regular_polygon (int x, int y, int radius, int edges, RegularPolygonVariation variation=VARIATION_POINTY_TOP, float rotation_degrees=ROTATION_0_DEGREES, Color color=COLOR_ON, RegularPolygonDrawing drawing=DRAWING_OUTLINE)
	Draw the outline of a regular polygon inscribed in the circle centered on [x,y] with the given radius and color.
void	regular_polygon (int x, int y, int radius, int edges, RegularPolygonVariation variation, Color color, RegularPolygonDrawing drawing=DRAWING_OUTLINE)
void	regular_polygon (int x, int y, int radius, int edges, Color color, RegularPolygonDrawing drawing=DRAWING_OUTLINE)
void	filled_regular_polygon (int x, int y, int radius, int edges, RegularPolygonVariation variation=VARIATION_POINTY_TOP, float rotation_degrees=ROTATION_0_DEGREES, Color color=COLOR_ON)
	Fill a regular polygon inscribed in the circle centered on [x,y] with the given radius and color.
void	filled_regular_polygon (int x, int y, int radius, int edges, RegularPolygonVariation variation, Color color)
void	filled_regular_polygon (int x, int y, int radius, int edges, Color color)
void	print (int x, int y, BaseFont *font, Color color, TextAlign align, const char *text, Color background=COLOR_OFF)
	Print text with the anchor point at [x,y] with font.
void	print (int x, int y, BaseFont *font, Color color, const char *text, Color background=COLOR_OFF)
	Print text with the top left at [x,y] with font.
void	print (int x, int y, BaseFont *font, TextAlign align, const char *text)
	Print text with the anchor point at [x,y] with font.
void	print (int x, int y, BaseFont *font, const char *text)
	Print text with the top left at [x,y] with font.
void	printf (int x, int y, BaseFont *font, Color color, Color background, TextAlign align, const char *format,...) __attribute__((format(printf
	Evaluate the printf-format format and print the result with the anchor point at [x,y] with font.
void void	printf (int x, int y, BaseFont *font, Color color, TextAlign align, const char *format,...) __attribute__((format(printf
	Evaluate the printf-format format and print the result with the anchor point at [x,y] with font.
void void void	printf (int x, int y, BaseFont *font, Color color, const char *format,...) __attribute__((format(printf
	Evaluate the printf-format format and print the result with the top left at [x,y] with font.
void void void void	printf (int x, int y, BaseFont *font, TextAlign align, const char *format,...) __attribute__((format(printf
	Evaluate the printf-format format and print the result with the anchor point at [x,y] with font.
void void void void void	printf (int x, int y, BaseFont *font, const char *format,...) __attribute__((format(printf
	Evaluate the printf-format format and print the result with the top left at [x,y] with font.
void void void void void void	strftime (int x, int y, BaseFont *font, Color color, Color background, TextAlign align, const char *format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format format and print the result with the anchor point at [x,y] with font.
void void void void void void void	strftime (int x, int y, BaseFont *font, Color color, TextAlign align, const char *format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format format and print the result with the anchor point at [x,y] with font.
void void void void void void void void	strftime (int x, int y, BaseFont *font, Color color, const char *format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format format and print the result with the top left at [x,y] with font.
void void void void void void void void void	strftime (int x, int y, BaseFont *font, TextAlign align, const char *format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format format and print the result with the anchor point at [x,y] with font.
void void void void void void void void void void	strftime (int x, int y, BaseFont *font, const char *format, ESPTime time) __attribute__((format(strftime
	Evaluate the strftime-format format and print the result with the top left at [x,y] with font.
void void void void void void void void void void void	image (int x, int y, BaseImage *image, Color color_on=COLOR_ON, Color color_off=COLOR_OFF)
	Draw the image with the top-left corner at [x,y] to the screen.
void	image (int x, int y, BaseImage *image, ImageAlign align, Color color_on=COLOR_ON, Color color_off=COLOR_OFF)
	Draw the image at [x,y] to the screen.
void	graph (int x, int y, graph::Graph *graph, Color color_on=COLOR_ON)
	Draw the graph with the top-left corner at [x,y] to the screen.
void	legend (int x, int y, graph::Graph *graph, Color color_on=COLOR_ON)
	Draw the legend for graph with the top-left corner at [x,y] to the screen.
void	qr_code (int x, int y, qr_code::QrCode *qr_code, Color color_on=COLOR_ON, int scale=1)
	Draw the qr_code with the top-left corner at [x,y] to the screen.
void	menu (int x, int y, graphical_display_menu::GraphicalDisplayMenu *menu, int width, int height)
void	get_text_bounds (int x, int y, const char *text, BaseFont *font, TextAlign align, int *x1, int *y1, int *width, int *height)
	Get the text bounds of the given string.
void	set_writer (display_writer_t &&writer)
	Internal method to set the display writer lambda.
void	show_page (DisplayPage *page)
void	show_next_page ()
void	show_prev_page ()
void	set_pages (std::vector< DisplayPage * > pages)
const DisplayPage *	get_active_page () const
void	add_on_page_change_trigger (DisplayOnPageChangeTrigger *t)
virtual void	set_rotation (DisplayRotation rotation)
	Internal method to set the display rotation with.
void	set_auto_clear (bool auto_clear_enabled)
DisplayRotation	get_rotation () const
virtual DisplayType	get_display_type ()=0
	Get the type of display that the buffer corresponds to.
void	start_clipping (Rect rect)
	Set the clipping rectangle for further drawing.
void	start_clipping (int16_t left, int16_t top, int16_t right, int16_t bottom)
void	extend_clipping (Rect rect)
	Add a rectangular region to the invalidation region.
void	extend_clipping (int16_t left, int16_t top, int16_t right, int16_t bottom)
void	shrink_clipping (Rect rect)
	substract a rectangular region to the invalidation region
void	shrink_clipping (uint16_t left, uint16_t top, uint16_t right, uint16_t bottom)
void	end_clipping ()
	Reset the invalidation region.
Rect	get_clipping () const
	Get the current the clipping rectangle.
bool	is_clipping () const
bool	clip (int x, int y)
	Check if pixel is within region of display.
void	test_card ()
void	show_test_card ()
Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()
	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.
void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.
virtual void	update ()=0
void	call_setup () override
virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.
void	start_poller ()
void	stop_poller ()
Public Member Functions inherited from esphome::Component
virtual void	setup ()
	Where the component's initialization should happen.
virtual void	loop ()
	This method will be called repeatedly.
virtual void	dump_config ()
virtual float	get_setup_priority () const
	priority of setup().
float	get_actual_setup_priority () const
void	set_setup_priority (float priority)
void	call ()
virtual void	on_shutdown ()
virtual void	on_safe_shutdown ()
virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.
virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.
uint8_t	get_component_state () const
void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.
bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.
bool	is_idle () const
	Check if this component is idle.
void	mark_failed ()
	Mark this component as failed.
	ESPDEPRECATED ("Use mark_failed(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void mark_failed(const char *message)
void	mark_failed (const LogString *message)
void	disable_loop ()
	Disable this component's loop.
void	enable_loop ()
	Enable this component's loop.
void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.
bool	is_failed () const
bool	is_ready () const
virtual bool	can_proceed ()
bool	status_has_warning () const
bool	status_has_error () const
void	status_set_warning ()
void	status_set_warning (const char *message)
void	status_set_warning (const LogString *message)
void	status_set_error ()
	ESPDEPRECATED ("Use status_set_error(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void status_set_error(const char *message)
void	status_set_error (const LogString *message)
void	status_clear_warning ()
void	status_clear_error ()
void	status_momentary_warning (const char *name, uint32_t length=5000)
	Set warning status flag and automatically clear it after a timeout.
void	status_momentary_error (const char *name, uint32_t length=5000)
	Set error status flag and automatically clear it after a timeout.
bool	has_overridden_loop () const
const LogString *	get_component_log_str () const ESPHOME_ALWAYS_INLINE
	Get the integration where this component was declared as a LogString for logging.
bool	should_warn_of_blocking (uint32_t blocking_time)

Protected Member Functions
bool	clamp_x_ (int x, int w, int &min_x, int &max_x)
bool	clamp_y_ (int y, int h, int &min_y, int &max_y)
void	vprintf_ (int x, int y, BaseFont *font, Color color, Color background, TextAlign align, const char *format, va_list arg)
void	do_update_ ()
void	clear_clipping_ ()
virtual int	get_height_internal ()=0
virtual int	get_width_internal ()=0
void	filled_flat_side_triangle_ (int x1, int y1, int x2, int y2, int x3, int y3, Color color)
	This method fills a triangle using only integer variables by using a modified bresenham algorithm.
void	sort_triangle_points_by_y_ (int *x1, int *y1, int *x2, int *y2, int *x3, int *y3)
Protected Member Functions inherited from esphome::Component
friend	void::setup ()
friend	void::original_setup ()
void	set_component_source_ (uint8_t index)
	Set where this component was loaded from for some debug messages.
void	call_dump_config_ ()
void	enable_loop_slow_path_ ()
void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)
bool	set_status_flag_ (uint8_t flag)
	Helper to set a status LED flag on both this component and the app.
void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).
void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)
void	set_interval (uint32_t interval, std::function< void()> &&f)
bool	cancel_interval (uint32_t id)
bool	cancel_interval (InternalSchedulerID id)
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const char *name
	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t id
	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t initial_wait_time
ESPDEPRECATED("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const std	ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const char *name)
	ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(uint32_t id)
void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).
void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)
void	set_timeout (uint32_t timeout, std::function< void()> &&f)
bool	cancel_timeout (uint32_t id)
bool	cancel_timeout (InternalSchedulerID id)
void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.
void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)
bool	cancel_defer (uint32_t id)
void	status_clear_warning_slow_path_ ()
void	status_clear_error_slow_path_ ()

Protected Attributes
DisplayRotation	rotation_ {DISPLAY_ROTATION_0_DEGREES}
display_writer_t	writer_ {}
DisplayPage *	page_ {nullptr}
DisplayPage *	previous_page_ {nullptr}
std::vector< DisplayOnPageChangeTrigger * >	on_page_change_triggers_
bool	auto_clear_enabled_ {true}
std::vector< Rect >	clipping_rectangle_
bool	show_test_card_ {false}
Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_
Protected Attributes inherited from esphome::Component
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_interval(const std voi	set_interval )(const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_interval(const std boo	cancel_interval )(const char *name)
	Cancel an interval function.
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t	initial_wait_time
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t	max_attempts
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> &&	f
ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)
uint32_t	initial_wait_time
uint32_t uint8_t	max_attempts
uint32_t uint8_t std::function< RetryResult(uint8_t)> &&	f
uint32_t uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)
uint8_t	max_attempts
uint8_t std::function< RetryResult(uint8_t)> &&	f
uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_timeout(const std voi	set_timeout )(const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_timeout(const std boo	cancel_timeout )(const char *name)
	Cancel a timeout function.
ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") void defer(const std voi	defer )(const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call.
ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_defer(const std boo	cancel_defer )(const char *name)
	Cancel a defer callback using the specified name, name must not be empty.
uint8_t	component_source_index_ {0}
	Index into component source PROGMEM lookup table (0 = not set)
uint8_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS}
	Warn threshold in centiseconds (max 2550ms)
uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.
volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.
ComponentRuntimeStats	runtime_stats_

Detailed Description

Definition at line 317 of file display.h.

Member Function Documentation

add_on_page_change_trigger()

void esphome::display::Display::add_on_page_change_trigger ( DisplayOnPageChangeTrigger * t )

inline

Definition at line 703 of file display.h.

circle()

void HOT esphome::display::Display::circle	(	int	center_x,
		int	center_xy,
		int	radius,
		Color	color = COLOR_ON )

Draw the outline of a circle centered around [center_x,center_y] with the radius radius with the given color.

Definition at line 113 of file display.cpp.

clamp_x_()

bool esphome::display::Display::clamp_x_ ( int x, int w, int & min_x, int & max_x )

protected

Definition at line 783 of file display.cpp.

clamp_y_()

bool esphome::display::Display::clamp_y_ ( int y, int h, int & min_y, int & max_y )

protected

Definition at line 799 of file display.cpp.

clear()

void esphome::display::Display::clear ( )

virtual

Clear the entire screen by filling it with OFF pixels.

Reimplemented in esphome::epaper_spi::EPaperBase, esphome::epaper_spi::EPaperSpectraE6, and esphome::epaper_spi::EPaperWeAct3C.

Definition at line 14 of file display.cpp.

clear_clipping_()

void esphome::display::Display::clear_clipping_ ( )

protected

Definition at line 773 of file display.cpp.

clip()

bool esphome::display::Display::clip	(	int	x,
		int	y )

Check if pixel is within region of display.

Definition at line 775 of file display.cpp.

do_update_()

void esphome::display::Display::do_update_ ( )

protected

Definition at line 690 of file display.cpp.

draw_pixel_at() [1/2]

void esphome::display::Display::draw_pixel_at ( int x, int y )

inline

Set a single pixel at the specified coordinates to default color.

Definition at line 335 of file display.h.

draw_pixel_at() [2/2]

virtual void esphome::display::Display::draw_pixel_at ( int x, int y, Color color )

pure virtual

Set a single pixel at the specified coordinates to the given color.

Implemented in esphome::display::DisplayBuffer, esphome::epaper_spi::EPaperBase, esphome::epaper_spi::EPaperJD79660, esphome::epaper_spi::EPaperSpectraE6, esphome::epaper_spi::EPaperWeAct3C, esphome::hub75::HUB75Display, esphome::mipi_dsi::MIPI_DSI, esphome::mipi_rgb::MipiRgb, esphome::mipi_spi::MipiSpi< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION >, esphome::mipi_spi::MipiSpiBuffer< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION, FRACTION, ROUNDING >, esphome::rpi_dpi_rgb::RpiDpiRgb, esphome::sdl::Sdl, and esphome::st7701s::ST7701S.

draw_pixels_at() [1/2]

void esphome::display::Display::draw_pixels_at ( int x_start, int y_start, int w, int h, const uint8_t * ptr, ColorOrder order, ColorBitness bitness, bool big_endian )

inline

Convenience overload for base case where the pixels are packed into the buffer with no gaps (e.g. suits LVGL.)

Definition at line 363 of file display.h.

draw_pixels_at() [2/2]

void esphome::display::Display::draw_pixels_at ( int x_start, int y_start, int w, int h, const uint8_t * ptr, ColorOrder order, ColorBitness bitness, bool big_endian, int x_offset, int y_offset, int x_pad )

virtual

Given an array of pixels encoded in the nominated format, draw these into the display's buffer.

The naive implementation here will work in all cases, but can be overridden by sub-classes in order to optimise the procedure. The parameters describe a rectangular block of pixels, potentially within a larger buffer.

Parameters

x_start	The starting destination x position
y_start	The starting destination y position
w	the width of the pixel block
h	the height of the pixel block
ptr	A pointer to the start of the data to be copied
order	The ordering of the colors
bitness	Defines the number of bits and their format for each pixel
big_endian	True if 16 bit values are stored big-endian
x_offset	The initial x-offset into the source buffer.
y_offset	The initial y-offset into the source buffer.
x_pad	How many pixels are in each line after the end of the pixels to be copied.

The length of each source buffer line (stride) will be x_offset + w + x_pad.

Reimplemented in esphome::hub75::HUB75Display, esphome::ili9xxx::ILI9XXXDisplay, esphome::mipi_dsi::MIPI_DSI, esphome::mipi_rgb::MipiRgb, esphome::mipi_spi::MipiSpi< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION >, esphome::qspi_dbi::QspiDbi, esphome::rpi_dpi_rgb::RpiDpiRgb, esphome::sdl::Sdl, and esphome::st7701s::ST7701S.

Definition at line 53 of file display.cpp.

end_clipping()

void esphome::display::Display::end_clipping

(

)

Reset the invalidation region.

Definition at line 741 of file display.cpp.

extend_clipping() [1/2]

void esphome::display::Display::extend_clipping ( int16_t left, int16_t top, int16_t right, int16_t bottom )

inline

Definition at line 735 of file display.h.

extend_clipping() [2/2]

void esphome::display::Display::extend_clipping

(

Rect

rect

)

Add a rectangular region to the invalidation region.

• This is usually called when an element has been modified

Parameters

[in]

rect

Rectangle to add to the invalidation region

Definition at line 749 of file display.cpp.

fill()

void esphome::display::Display::fill ( Color color )

virtual

Fill the entire screen with the given color.

Reimplemented in esphome::epaper_spi::EPaperBase, esphome::epaper_spi::EPaperJD79660, esphome::epaper_spi::EPaperSpectraE6, esphome::epaper_spi::EPaperWeAct3C, esphome::hub75::HUB75Display, esphome::ili9xxx::ILI9XXXDisplay, esphome::inkplate::Inkplate, esphome::mipi_dsi::MIPI_DSI, esphome::mipi_rgb::MipiRgb, esphome::mipi_spi::MipiSpiBuffer< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION, FRACTION, ROUNDING >, esphome::pcd8544::PCD8544, esphome::ssd1306_base::SSD1306, esphome::ssd1322_base::SSD1322, esphome::ssd1325_base::SSD1325, esphome::ssd1327_base::SSD1327, esphome::ssd1331_base::SSD1331, esphome::ssd1351_base::SSD1351, esphome::st7567_base::ST7567, esphome::st7920::ST7920, esphome::waveshare_epaper::WaveshareEPaper7C, esphome::waveshare_epaper::WaveshareEPaper, and esphome::waveshare_epaper::WaveshareEPaperBWR.

Definition at line 13 of file display.cpp.

filled_circle()

void esphome::display::Display::filled_circle	(	int	center_x,
		int	center_y,
		int	radius,
		Color	color = COLOR_ON )

Fill a circle centered around [center_x,center_y] with the radius radius with the given color.

Definition at line 137 of file display.cpp.

filled_flat_side_triangle_()

void esphome::display::Display::filled_flat_side_triangle_ ( int x1, int y1, int x2, int y2, int x3, int y3, Color color )

protected

This method fills a triangle using only integer variables by using a modified bresenham algorithm.

It is mandatory that [x2,y2] and [x3,y3] lie on the same horizontal line, so y2 must be equal to y3.

Definition at line 336 of file display.cpp.

filled_gauge()

void esphome::display::Display::filled_gauge	(	int	center_x,
		int	center_y,
		int	radius1,
		int	radius2,
		int	progress,
		Color	color = COLOR_ON )

Fill a half-ring "gauge" centered around [center_x,center_y] between two circles with the radius1 and radius2 with he given color and filled up to 'progress' percent.

Definition at line 221 of file display.cpp.

filled_rectangle()

void esphome::display::Display::filled_rectangle	(	int	x1,
		int	y1,
		int	width,
		int	height,
		Color	color = COLOR_ON )

Fill a rectangle with the top left point at [x1,y1] and the bottom right point at [x1+width,y1+height].

Definition at line 106 of file display.cpp.

filled_regular_polygon() [1/3]

void esphome::display::Display::filled_regular_polygon	(	int	x,
		int	y,
		int	radius,
		int	edges,
		Color	color )

Definition at line 501 of file display.cpp.

filled_regular_polygon() [2/3]

void esphome::display::Display::filled_regular_polygon	(	int	x,
		int	y,
		int	radius,
		int	edges,
		RegularPolygonVariation	variation,
		Color	color )

Definition at line 496 of file display.cpp.

filled_regular_polygon() [3/3]

void esphome::display::Display::filled_regular_polygon	(	int	x,
		int	y,
		int	radius,
		int	edges,
		RegularPolygonVariation	variation = VARIATION_POINTY_TOP,
		float	rotation_degrees = ROTATION_0_DEGREES,
		Color	color = COLOR_ON )

Fill a regular polygon inscribed in the circle centered on [x,y] with the given radius and color.

Use the edges constants (e.g.: EDGES_HEXAGON) or any integer to specify the number of edges of the polygon. Use the variation to switch between the flat-topped or the pointy-topped variation of the polygon. Use the rotation in degrees to rotate the shape clockwise.

Definition at line 491 of file display.cpp.

filled_ring()

void esphome::display::Display::filled_ring	(	int	center_x,
		int	center_y,
		int	radius1,
		int	radius2,
		Color	color = COLOR_ON )

Fill a ring centered around [center_x,center_y] between two circles with the radius1 and radius2 with the given color.

Definition at line 164 of file display.cpp.

filled_triangle()

void esphome::display::Display::filled_triangle	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		int	x3,
		int	y3,
		Color	color = COLOR_ON )

Fill a triangle contained between the points [x1,y1], [x2,y2] and [x3,y3] with the given color.

Definition at line 419 of file display.cpp.

get_active_page()

const DisplayPage * esphome::display::Display::get_active_page ( ) const

inline

Definition at line 701 of file display.h.

get_clipping()

Rect esphome::display::Display::get_clipping

(

)

const

Get the current the clipping rectangle.

return rect for active clipping region

Definition at line 765 of file display.cpp.

get_display_type()

virtual DisplayType esphome::display::Display::get_display_type ( )

pure virtual

Get the type of display that the buffer corresponds to.

In case of dynamically configurable displays, returns the type the display is currently configured to.

Implemented in esphome::addressable_light::AddressableLightDisplay, esphome::epaper_spi::EPaperBase, esphome::hub75::HUB75Display, esphome::ili9xxx::ILI9XXXDisplay, esphome::inkplate::Inkplate, esphome::max7219digit::MAX7219Component, esphome::mipi_dsi::MIPI_DSI, esphome::mipi_rgb::MipiRgb, esphome::mipi_spi::MipiSpi< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION >, esphome::pcd8544::PCD8544, esphome::qspi_dbi::QspiDbi, esphome::rpi_dpi_rgb::RpiDpiRgb, esphome::sdl::Sdl, esphome::ssd1306_base::SSD1306, esphome::ssd1322_base::SSD1322, esphome::ssd1325_base::SSD1325, esphome::ssd1327_base::SSD1327, esphome::ssd1331_base::SSD1331, esphome::ssd1351_base::SSD1351, esphome::st7567_base::ST7567, esphome::st7701s::ST7701S, esphome::st7735::ST7735, esphome::st7789v::ST7789V, esphome::st7920::ST7920, esphome::waveshare_epaper::WaveshareEPaper7C, esphome::waveshare_epaper::WaveshareEPaper, and esphome::waveshare_epaper::WaveshareEPaperBWR.

get_height()

virtual int esphome::display::Display::get_height ( )

inlinevirtual

Get the calculated height of the display in pixels with rotation applied.

Reimplemented in esphome::display::DisplayBuffer, esphome::epaper_spi::EPaperBase, esphome::mipi_dsi::MIPI_DSI, esphome::mipi_rgb::MipiRgb, esphome::mipi_spi::MipiSpi< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION >, esphome::rpi_dpi_rgb::RpiDpiRgb, esphome::sdl::Sdl, and esphome::st7701s::ST7701S.

Definition at line 327 of file display.h.

get_height_internal()

virtual int esphome::display::Display::get_height_internal ( )

protectedpure virtual

Implemented in esphome::addressable_light::AddressableLightDisplay, esphome::epaper_spi::EPaperBase, esphome::hub75::HUB75Display, esphome::ili9xxx::ILI9XXXDisplay, esphome::inkplate::Inkplate, esphome::max7219digit::MAX7219Component, esphome::mipi_dsi::MIPI_DSI, esphome::mipi_rgb::MipiRgb, esphome::mipi_spi::MipiSpi< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION >, esphome::pcd8544::PCD8544, esphome::qspi_dbi::QspiDbi, esphome::rpi_dpi_rgb::RpiDpiRgb, esphome::sdl::Sdl, esphome::ssd1306_base::SSD1306, esphome::ssd1322_base::SSD1322, esphome::ssd1325_base::SSD1325, esphome::ssd1327_base::SSD1327, esphome::ssd1331_base::SSD1331, esphome::ssd1351_base::SSD1351, esphome::st7567_base::ST7567, esphome::st7701s::ST7701S, esphome::st7735::ST7735, esphome::st7789v::ST7789V, esphome::st7920::ST7920, esphome::waveshare_epaper::GDEW0154M09, esphome::waveshare_epaper::GDEW029T5, esphome::waveshare_epaper::GDEY029T94, esphome::waveshare_epaper::GDEY042T81, esphome::waveshare_epaper::GDEY0583T81, esphome::waveshare_epaper::WaveshareEPaper13P3InK, esphome::waveshare_epaper::WaveshareEPaper1P54InBV2, esphome::waveshare_epaper::WaveshareEPaper2P13InDKE, esphome::waveshare_epaper::WaveshareEPaper2P13InV3, esphome::waveshare_epaper::WaveshareEPaper2P7In, esphome::waveshare_epaper::WaveshareEPaper2P7InB, esphome::waveshare_epaper::WaveshareEPaper2P7InBV2, esphome::waveshare_epaper::WaveshareEPaper2P7InV2, esphome::waveshare_epaper::WaveshareEPaper2P9InB, esphome::waveshare_epaper::WaveshareEPaper2P9InBV3, esphome::waveshare_epaper::WaveshareEPaper2P9InD, esphome::waveshare_epaper::WaveshareEPaper2P9InDKE, esphome::waveshare_epaper::WaveshareEPaper2P9InV2R2, esphome::waveshare_epaper::WaveshareEPaper4P2In, esphome::waveshare_epaper::WaveshareEPaper4P2InBV2, esphome::waveshare_epaper::WaveshareEPaper4P2InBV2BWR, esphome::waveshare_epaper::WaveshareEPaper5P65InF, esphome::waveshare_epaper::WaveshareEPaper5P8In, esphome::waveshare_epaper::WaveshareEPaper5P8InV2, esphome::waveshare_epaper::WaveshareEPaper7P3InF, esphome::waveshare_epaper::WaveshareEPaper7P5In, esphome::waveshare_epaper::WaveshareEPaper7P5InBC, esphome::waveshare_epaper::WaveshareEPaper7P5InBV2, esphome::waveshare_epaper::WaveshareEPaper7P5InBV3, esphome::waveshare_epaper::WaveshareEPaper7P5InBV3BWR, esphome::waveshare_epaper::WaveshareEPaper7P5InHDB, esphome::waveshare_epaper::WaveshareEPaper7P5InV2, esphome::waveshare_epaper::WaveshareEPaper7P5InV2P, and esphome::waveshare_epaper::WaveshareEPaperTypeA.

get_native_height()

int esphome::display::Display::get_native_height ( )

inline

Get the native (original) height of the display in pixels.

Definition at line 332 of file display.h.

get_native_width()

int esphome::display::Display::get_native_width ( )

inline

Get the native (original) width of the display in pixels.

Definition at line 330 of file display.h.

get_regular_polygon_vertex()

void HOT esphome::display::Display::get_regular_polygon_vertex	(	int	vertex_id,
		int *	vertex_x,
		int *	vertex_y,
		int	center_x,
		int	center_y,
		int	radius,
		int	edges,
		RegularPolygonVariation	variation = VARIATION_POINTY_TOP,
		float	rotation_degrees = ROTATION_0_DEGREES )

Get the specified vertex (x,y) coordinates for the regular polygon inscribed in the circle centered on [center_x,center_y] with the given radius.

Vertex id are 0-indexed and rotate clockwise. In a pointy-topped variation of a polygon with a 0° rotation, the vertex #0 is located at the top of the polygon. In a flat-topped variation of a polygon with a 0° rotation, the vertex #0 is located on the left-side of the horizontal top edge, and the vertex #1 is located on the right-side of the horizontal top edge. Use the edges constants (e.g.: EDGES_HEXAGON) or any integer to specify the number of edges of the polygon. Use the variation to switch between the flat-topped or the pointy-topped variation of the polygon. Use the rotation in degrees to rotate the shape clockwise.

Definition at line 437 of file display.cpp.

get_rotation()

DisplayRotation esphome::display::Display::get_rotation ( ) const

inline

Definition at line 711 of file display.h.

get_text_bounds()

void esphome::display::Display::get_text_bounds	(	int	x,
		int	y,
		const char *	text,
		BaseFont *	font,
		TextAlign	align,
		int *	x1,
		int *	y1,
		int *	width,
		int *	height )

Get the text bounds of the given string.

Parameters

x	The x coordinate to place the string at, can be 0 if only interested in dimensions.
y	The y coordinate to place the string at, can be 0 if only interested in dimensions.
text	The text to measure.
font	The font to measure the text bounds with.
align	The alignment of the text. Set to TextAlign::TOP_LEFT if only interested in dimensions.
x1	A pointer to store the returned x coordinate of the upper left corner in.
y1	A pointer to store the returned y coordinate of the upper left corner in.
width	A pointer to store the returned text width in.
height	A pointer to store the returned text height in.

Definition at line 573 of file display.cpp.

get_width()

virtual int esphome::display::Display::get_width ( )

inlinevirtual

Get the calculated width of the display in pixels with rotation applied.

Reimplemented in esphome::display::DisplayBuffer, esphome::epaper_spi::EPaperBase, esphome::mipi_dsi::MIPI_DSI, esphome::mipi_rgb::MipiRgb, esphome::mipi_spi::MipiSpi< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION >, esphome::rpi_dpi_rgb::RpiDpiRgb, esphome::sdl::Sdl, and esphome::st7701s::ST7701S.

Definition at line 325 of file display.h.

get_width_internal()

virtual int esphome::display::Display::get_width_internal ( )

protectedpure virtual

Implemented in esphome::addressable_light::AddressableLightDisplay, esphome::epaper_spi::EPaperBase, esphome::hub75::HUB75Display, esphome::ili9xxx::ILI9XXXDisplay, esphome::inkplate::Inkplate, esphome::max7219digit::MAX7219Component, esphome::mipi_dsi::MIPI_DSI, esphome::mipi_rgb::MipiRgb, esphome::mipi_spi::MipiSpi< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION >, esphome::pcd8544::PCD8544, esphome::qspi_dbi::QspiDbi, esphome::rpi_dpi_rgb::RpiDpiRgb, esphome::sdl::Sdl, esphome::ssd1306_base::SSD1306, esphome::ssd1322_base::SSD1322, esphome::ssd1325_base::SSD1325, esphome::ssd1327_base::SSD1327, esphome::ssd1331_base::SSD1331, esphome::ssd1351_base::SSD1351, esphome::st7567_base::ST7567, esphome::st7701s::ST7701S, esphome::st7735::ST7735, esphome::st7789v::ST7789V, esphome::st7920::ST7920, esphome::waveshare_epaper::GDEW0154M09, esphome::waveshare_epaper::GDEW029T5, esphome::waveshare_epaper::GDEY029T94, esphome::waveshare_epaper::GDEY042T81, esphome::waveshare_epaper::GDEY0583T81, esphome::waveshare_epaper::WaveshareEPaper13P3InK, esphome::waveshare_epaper::WaveshareEPaper1P54InBV2, esphome::waveshare_epaper::WaveshareEPaper2P13InDKE, esphome::waveshare_epaper::WaveshareEPaper2P13InV3, esphome::waveshare_epaper::WaveshareEPaper2P7In, esphome::waveshare_epaper::WaveshareEPaper2P7InB, esphome::waveshare_epaper::WaveshareEPaper2P7InBV2, esphome::waveshare_epaper::WaveshareEPaper2P7InV2, esphome::waveshare_epaper::WaveshareEPaper2P9InB, esphome::waveshare_epaper::WaveshareEPaper2P9InBV3, esphome::waveshare_epaper::WaveshareEPaper2P9InD, esphome::waveshare_epaper::WaveshareEPaper2P9InDKE, esphome::waveshare_epaper::WaveshareEPaper2P9InV2R2, esphome::waveshare_epaper::WaveshareEPaper4P2In, esphome::waveshare_epaper::WaveshareEPaper4P2InBV2, esphome::waveshare_epaper::WaveshareEPaper4P2InBV2BWR, esphome::waveshare_epaper::WaveshareEPaper5P65InF, esphome::waveshare_epaper::WaveshareEPaper5P8In, esphome::waveshare_epaper::WaveshareEPaper5P8InV2, esphome::waveshare_epaper::WaveshareEPaper7P3InF, esphome::waveshare_epaper::WaveshareEPaper7P5In, esphome::waveshare_epaper::WaveshareEPaper7P5InBC, esphome::waveshare_epaper::WaveshareEPaper7P5InBV2, esphome::waveshare_epaper::WaveshareEPaper7P5InBV3, esphome::waveshare_epaper::WaveshareEPaper7P5InBV3BWR, esphome::waveshare_epaper::WaveshareEPaper7P5InHDB, esphome::waveshare_epaper::WaveshareEPaper7P5InV2, esphome::waveshare_epaper::WaveshareEPaper7P5InV2P, and esphome::waveshare_epaper::WaveshareEPaperTypeA.

graph()

void esphome::display::Display::graph	(	int	x,
		int	y,
		graph::Graph *	graph,
		Color	color_on = COLOR_ON )

Draw the graph with the top-left corner at [x,y] to the screen.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
graph	The graph id to draw
color_on	The color to replace in binary images for the on bits.

Definition at line 556 of file display.cpp.

horizontal_line()

void HOT esphome::display::Display::horizontal_line	(	int	x,
		int	y,
		int	width,
		Color	color = COLOR_ON )

Draw a horizontal line from the point [x,y] to [x+width,y] with the given color.

Definition at line 87 of file display.cpp.

image() [1/2]

void esphome::display::Display::image	(	int	x,
		int	y,
		BaseImage *	image,
		Color	color_on = COLOR_ON,
		Color	color_off = COLOR_OFF )

Draw the image with the top-left corner at [x,y] to the screen.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
image	The image to draw.
color_on	The color to replace in binary images for the on bits.
color_off	The color to replace in binary images for the off bits.

Definition at line 520 of file display.cpp.

image() [2/2]

void esphome::display::Display::image	(	int	x,
		int	y,
		BaseImage *	image,
		ImageAlign	align,
		Color	color_on = COLOR_ON,
		Color	color_off = COLOR_OFF )

Draw the image at [x,y] to the screen.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
image	The image to draw.
align	The alignment of the image.
color_on	The color to replace in binary images for the on bits.
color_off	The color to replace in binary images for the off bits.

Definition at line 524 of file display.cpp.

is_clipping()

bool esphome::display::Display::is_clipping ( ) const

inline

Definition at line 759 of file display.h.

legend()

void esphome::display::Display::legend	(	int	x,
		int	y,
		graph::Graph *	graph,
		Color	color_on = COLOR_ON )

Draw the legend for graph with the top-left corner at [x,y] to the screen.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
graph	The graph id for which the legend applies to
graph	The graph id for which the legend applies to
graph	The graph id for which the legend applies to
name_font	The font used for the trace name
value_font	The font used for the trace value and units
color_on	The color of the border

Definition at line 557 of file display.cpp.

line()

void HOT esphome::display::Display::line	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		Color	color = COLOR_ON )

Draw a straight line from the point [x1,y1] to [x2,y2] with the given color.

Definition at line 17 of file display.cpp.

line_at_angle() [1/2]

void esphome::display::Display::line_at_angle	(	int	x,
		int	y,
		int	angle,
		int	length,
		Color	color = COLOR_ON )

Draw a straight line at the given angle based on the origin [x, y] for a specified length with the given color.

Definition at line 38 of file display.cpp.

line_at_angle() [2/2]

void esphome::display::Display::line_at_angle	(	int	x,
		int	y,
		int	angle,
		int	start_radius,
		int	stop_radius,
		Color	color = COLOR_ON )

Draw a straight line at the given angle based on the origin [x, y] from a specified start and stop radius with the given color.

Definition at line 42 of file display.cpp.

menu()

void esphome::display::Display::menu	(	int	x,
		int	y,
		graphical_display_menu::GraphicalDisplayMenu *	menu,
		int	width,
		int	height )

Parameters

x	The x coordinate of the upper left corner
y	The y coordinate of the upper left corner
menu	The GraphicalDisplayMenu to draw
width	Width of the menu
height	Height of the menu

Definition at line 567 of file display.cpp.

print() [1/4]

void esphome::display::Display::print	(	int	x,
		int	y,
		BaseFont *	font,
		Color	color,
		const char *	text,
		Color	background = COLOR_OFF )

Print text with the top left at [x,y] with font.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
font	The font to draw the text with.
color	The color to draw the text with.
text	The text to draw.
background	When using multi-bit (anti-aliased) fonts, blend this background color into pixels

Definition at line 612 of file display.cpp.

print() [2/4]

void esphome::display::Display::print	(	int	x,
		int	y,
		BaseFont *	font,
		Color	color,
		TextAlign	align,
		const char *	text,
		Color	background = COLOR_OFF )

Print text with the anchor point at [x,y] with font.

Parameters

x	The x coordinate of the text alignment anchor point.
y	The y coordinate of the text alignment anchor point.
font	The font to draw the text with.
color	The color to draw the text with.
align	The alignment of the text.
text	The text to draw.
background	When using multi-bit (anti-aliased) fonts, blend this background color into pixels

Definition at line 505 of file display.cpp.

print() [3/4]

void esphome::display::Display::print	(	int	x,
		int	y,
		BaseFont *	font,
		const char *	text )

Print text with the top left at [x,y] with font.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
font	The font to draw the text with.
text	The text to draw.

Definition at line 620 of file display.cpp.

print() [4/4]

void esphome::display::Display::print	(	int	x,
		int	y,
		BaseFont *	font,
		TextAlign	align,
		const char *	text )

Print text with the anchor point at [x,y] with font.

Parameters

x	The x coordinate of the text alignment anchor point.
y	The y coordinate of the text alignment anchor point.
font	The font to draw the text with.
align	The alignment of the text.
text	The text to draw.

Definition at line 616 of file display.cpp.

printf() [1/5]

void esphome::display::Display::printf	(	int	x,
		int	y,
		BaseFont *	font,
		Color	color,
		Color	background,
		TextAlign	align,
		const char *	format,
			... )

Evaluate the printf-format format and print the result with the anchor point at [x,y] with font.

Parameters

x	The x coordinate of the text alignment anchor point.
y	The y coordinate of the text alignment anchor point.
font	The font to draw the text with.
color	The color to draw the text with.
background	The background color to use for anti-aliasing
align	The alignment of the text.
format	The format to use.
...	The arguments to use for the text formatting.

Definition at line 624 of file display.cpp.

printf() [2/5]

void esphome::display::Display::printf	(	int	x,
		int	y,
		BaseFont *	font,
		Color	color,
		const char *	format,
			... )

Evaluate the printf-format format and print the result with the top left at [x,y] with font.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
font	The font to draw the text with.
color	The color to draw the text with.
format	The format to use.
...	The arguments to use for the text formatting.

Definition at line 639 of file display.cpp.

printf() [3/5]

void esphome::display::Display::printf	(	int	x,
		int	y,
		BaseFont *	font,
		Color	color,
		TextAlign	align,
		const char *	format,
			... )

Evaluate the printf-format format and print the result with the anchor point at [x,y] with font.

Parameters

x	The x coordinate of the text alignment anchor point.
y	The y coordinate of the text alignment anchor point.
font	The font to draw the text with.
color	The color to draw the text with.
align	The alignment of the text.
format	The format to use.
...	The arguments to use for the text formatting.

Definition at line 632 of file display.cpp.

printf() [4/5]

void esphome::display::Display::printf	(	int	x,
		int	y,
		BaseFont *	font,
		const char *	format,
			... )

Evaluate the printf-format format and print the result with the top left at [x,y] with font.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
font	The font to draw the text with.
format	The format to use.
...	The arguments to use for the text formatting.

Definition at line 653 of file display.cpp.

printf() [5/5]

void esphome::display::Display::printf	(	int	x,
		int	y,
		BaseFont *	font,
		TextAlign	align,
		const char *	format,
			... )

Evaluate the printf-format format and print the result with the anchor point at [x,y] with font.

Parameters

x	The x coordinate of the text alignment anchor point.
y	The y coordinate of the text alignment anchor point.
font	The font to draw the text with.
align	The alignment of the text.
format	The format to use.
...	The arguments to use for the text formatting.

Definition at line 646 of file display.cpp.

qr_code()

void esphome::display::Display::qr_code	(	int	x,
		int	y,
		qr_code::QrCode *	qr_code,
		Color	color_on = COLOR_ON,
		int	scale = 1 )

Draw the qr_code with the top-left corner at [x,y] to the screen.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
qr_code	The qr_code to draw
color_on	The color to replace in binary images for the on bits.

Definition at line 561 of file display.cpp.

rectangle()

void esphome::display::Display::rectangle	(	int	x1,
		int	y1,
		int	width,
		int	height,
		Color	color = COLOR_ON )

Draw the outline of a rectangle with the top left point at [x1,y1] and the bottom right point at [x1+width,y1+height].

Definition at line 99 of file display.cpp.

regular_polygon() [1/3]

void HOT esphome::display::Display::regular_polygon	(	int	x,
		int	y,
		int	radius,
		int	edges,
		Color	color,
		RegularPolygonDrawing	drawing = DRAWING_OUTLINE )

Definition at line 487 of file display.cpp.

regular_polygon() [2/3]

void HOT esphome::display::Display::regular_polygon	(	int	x,
		int	y,
		int	radius,
		int	edges,
		RegularPolygonVariation	variation,
		Color	color,
		RegularPolygonDrawing	drawing = DRAWING_OUTLINE )

Definition at line 482 of file display.cpp.

regular_polygon() [3/3]

void HOT esphome::display::Display::regular_polygon	(	int	x,
		int	y,
		int	radius,
		int	edges,
		RegularPolygonVariation	variation = VARIATION_POINTY_TOP,
		float	rotation_degrees = ROTATION_0_DEGREES,
		Color	color = COLOR_ON,
		RegularPolygonDrawing	drawing = DRAWING_OUTLINE )

Draw the outline of a regular polygon inscribed in the circle centered on [x,y] with the given radius and color.

Use the edges constants (e.g.: EDGES_HEXAGON) or any integer to specify the number of edges of the polygon. Use the variation to switch between the flat-topped or the pointy-topped variation of the polygon. Use the rotation in degrees to rotate the shape clockwise. Use the drawing to switch between outlining or filling the polygon.

Definition at line 460 of file display.cpp.

set_auto_clear()

void esphome::display::Display::set_auto_clear ( bool auto_clear_enabled )

inline

Definition at line 709 of file display.h.

set_pages()

void esphome::display::Display::set_pages

(

std::vector< DisplayPage * >

pages

)

Definition at line 662 of file display.cpp.

set_rotation()

void esphome::display::Display::set_rotation ( DisplayRotation rotation )

virtual

Internal method to set the display rotation with.

Reimplemented in esphome::epaper_spi::EPaperBase, and esphome::mipi_spi::MipiSpi< BUFFERTYPE, BUFFERPIXEL, IS_BIG_ENDIAN, DISPLAYPIXEL, BUS_TYPE, WIDTH, HEIGHT, OFFSET_WIDTH, OFFSET_HEIGHT, MADCTL, HAS_HARDWARE_ROTATION >.

Definition at line 15 of file display.cpp.

set_writer()

void esphome::display::Display::set_writer

(

display_writer_t &&

writer

)

Internal method to set the display writer lambda.

Definition at line 660 of file display.cpp.

show_next_page()

void esphome::display::Display::show_next_page

(

)

Definition at line 687 of file display.cpp.

show_page()

void esphome::display::Display::show_page

(

DisplayPage *

page

)

Definition at line 678 of file display.cpp.

show_prev_page()

void esphome::display::Display::show_prev_page

(

)

Definition at line 688 of file display.cpp.

show_test_card()

void esphome::display::Display::show_test_card ( )

inline

Definition at line 766 of file display.h.

shrink_clipping() [1/2]

void esphome::display::Display::shrink_clipping

(

Rect

rect

)

substract a rectangular region to the invalidation region

• This is usually called when an element has been modified

Parameters

[in]

rect

Rectangle to add to the invalidation region

Definition at line 757 of file display.cpp.

shrink_clipping() [2/2]

void esphome::display::Display::shrink_clipping ( uint16_t left, uint16_t top, uint16_t right, uint16_t bottom )

inline

Definition at line 745 of file display.h.

sort_triangle_points_by_y_()

void esphome::display::Display::sort_triangle_points_by_y_ ( int * x1, int * y1, int * x2, int * y2, int * x3, int * y3 )

protected

Definition at line 318 of file display.cpp.

start_clipping() [1/2]

void esphome::display::Display::start_clipping ( int16_t left, int16_t top, int16_t right, int16_t bottom )

inline

Definition at line 725 of file display.h.

start_clipping() [2/2]

void esphome::display::Display::start_clipping

(

Rect

rect

)

Set the clipping rectangle for further drawing.

Parameters

[in]

rect

Pointer to Rect for clipping (or NULL for entire screen)

return true if success, false if error

Definition at line 733 of file display.cpp.

strftime() [1/5]

void esphome::display::Display::strftime	(	int	x,
		int	y,
		BaseFont *	font,
		Color	color,
		Color	background,
		TextAlign	align,
		const char *	format,
		ESPTime	time )

Evaluate the strftime-format format and print the result with the anchor point at [x,y] with font.

Parameters

x	The x coordinate of the text alignment anchor point.
y	The y coordinate of the text alignment anchor point.
font	The font to draw the text with.
color	The color to draw the text with.
background	The background color to draw the text with.
align	The alignment of the text.
format	The format to use.
...	The arguments to use for the text formatting.

Definition at line 709 of file display.cpp.

strftime() [2/5]

void esphome::display::Display::strftime	(	int	x,
		int	y,
		BaseFont *	font,
		Color	color,
		const char *	format,
		ESPTime	time )

Evaluate the strftime-format format and print the result with the top left at [x,y] with font.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
font	The font to draw the text with.
color	The color to draw the text with.
format	The strftime format to use.
time	The time to format.

Definition at line 721 of file display.cpp.

strftime() [3/5]

void esphome::display::Display::strftime	(	int	x,
		int	y,
		BaseFont *	font,
		Color	color,
		TextAlign	align,
		const char *	format,
		ESPTime	time )

Evaluate the strftime-format format and print the result with the anchor point at [x,y] with font.

Parameters

x	The x coordinate of the text alignment anchor point.
y	The y coordinate of the text alignment anchor point.
font	The font to draw the text with.
color	The color to draw the text with.
align	The alignment of the text.
format	The strftime format to use.
time	The time to format.

Definition at line 717 of file display.cpp.

strftime() [4/5]

void esphome::display::Display::strftime	(	int	x,
		int	y,
		BaseFont *	font,
		const char *	format,
		ESPTime	time )

Evaluate the strftime-format format and print the result with the top left at [x,y] with font.

Parameters

x	The x coordinate of the upper left corner.
y	The y coordinate of the upper left corner.
font	The font to draw the text with.
format	The strftime format to use.
time	The time to format.

Definition at line 729 of file display.cpp.

strftime() [5/5]

void esphome::display::Display::strftime	(	int	x,
		int	y,
		BaseFont *	font,
		TextAlign	align,
		const char *	format,
		ESPTime	time )

Evaluate the strftime-format format and print the result with the anchor point at [x,y] with font.

Parameters

x	The x coordinate of the text alignment anchor point.
y	The y coordinate of the text alignment anchor point.
font	The font to draw the text with.
align	The alignment of the text.
format	The strftime format to use.
time	The time to format.

Definition at line 725 of file display.cpp.

test_card()

void esphome::display::Display::test_card

(

)

Definition at line 819 of file display.cpp.

triangle()

void HOT esphome::display::Display::triangle	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		int	x3,
		int	y3,
		Color	color = COLOR_ON )

Draw the outline of a triangle contained between the points [x1,y1], [x2,y2] and [x3,y3] with the given color.

Definition at line 312 of file display.cpp.

vertical_line()

void HOT esphome::display::Display::vertical_line	(	int	x,
		int	y,
		int	height,
		Color	color = COLOR_ON )

Draw a vertical line from the point [x,y] to [x,y+width] with the given color.

Definition at line 93 of file display.cpp.

vprintf_()

void esphome::display::Display::vprintf_ ( int x, int y, BaseFont * font, Color color, Color background, TextAlign align, const char * format, va_list arg )

protected

Definition at line 512 of file display.cpp.

Field Documentation

auto_clear_enabled_

bool esphome::display::Display::auto_clear_enabled_ {true}

protected

Definition at line 794 of file display.h.

clipping_rectangle_

std::vector<Rect> esphome::display::Display::clipping_rectangle_

protected

Definition at line 795 of file display.h.

on_page_change_triggers_

std::vector<DisplayOnPageChangeTrigger *> esphome::display::Display::on_page_change_triggers_

protected

Definition at line 793 of file display.h.

page_

DisplayPage* esphome::display::Display::page_ {nullptr}

protected

Definition at line 791 of file display.h.

previous_page_

DisplayPage* esphome::display::Display::previous_page_ {nullptr}

protected

Definition at line 792 of file display.h.

rotation_

DisplayRotation esphome::display::Display::rotation_ {DISPLAY_ROTATION_0_DEGREES}

protected

Definition at line 789 of file display.h.

show_test_card_

bool esphome::display::Display::show_test_card_ {false}

protected

Definition at line 796 of file display.h.

writer_

display_writer_t esphome::display::Display::writer_ {}

protected

Definition at line 790 of file display.h.

---

The documentation for this class was generated from the following files:

• esphome/components/display/display.h
• esphome/components/display/display.cpp
