esphome::esp32_ble_tracker::ESPBTClient Class Reference

Base class for BLE GATT clients that connect to remote devices. More...

#include <esp32_ble_tracker.h>

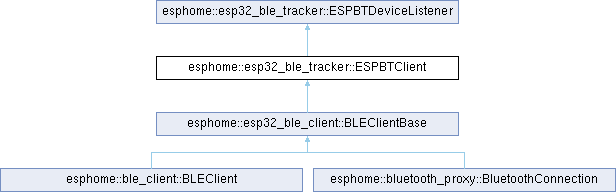

Inheritance diagram for esphome::esp32_ble_tracker::ESPBTClient:

Public Member Functions
virtual bool	gattc_event_handler (esp_gattc_cb_event_t event, esp_gatt_if_t gattc_if, esp_ble_gattc_cb_param_t *param)=0
virtual void	gap_event_handler (esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t *param)=0
virtual void	connect ()=0
virtual void	disconnect ()=0
bool	disconnect_pending () const
void	cancel_pending_disconnect ()
virtual void	set_state (ClientState st)
	Set the client state with IDLE handling (clears want_disconnect_).
ClientState	state () const
void	set_tracker_state_version (uint8_t *version)
	Called by ESP32BLETracker::register_client() to enable state change notifications.
Public Member Functions inherited from esphome::esp32_ble_tracker::ESPBTDeviceListener
virtual void	on_scan_end ()
virtual bool	parse_device (const ESPBTDevice &device)=0
virtual bool	parse_devices (const BLEScanResult *scan_results, size_t count)
virtual AdvertisementParserType	get_advertisement_parser_type ()
void	set_parent (ESP32BLETracker *parent)

Data Fields
uint8_t	app_id

Protected Member Functions
void	set_state_internal_ (ClientState st)
	Set state without IDLE handling - use for direct state transitions.

Protected Attributes
bool	want_disconnect_ {false}
Protected Attributes inherited from esphome::esp32_ble_tracker::ESPBTDeviceListener
ESP32BLETracker *	parent_ {nullptr}

Detailed Description

Base class for BLE GATT clients that connect to remote devices.

State Change Tracking Design:

ESP32BLETracker::loop() needs to know when client states change to avoid expensive polling. Rather than checking all clients every iteration (~7000/min), we use a version counter owned by ESP32BLETracker that clients increment on state changes. The tracker compares versions to skip work when nothing changed.

Ownership: ESP32BLETracker owns state_version_. Clients hold a non-owning pointer (tracker_state_version_) set during register_client(). Clients increment the counter through this pointer when their state changes. The pointer may be null if the client is not registered with a tracker.

Definition at line 232 of file esp32_ble_tracker.h.

Member Function Documentation

cancel_pending_disconnect()

void esphome::esp32_ble_tracker::ESPBTClient::cancel_pending_disconnect ( )

inline

Definition at line 240 of file esp32_ble_tracker.h.

connect()

virtual void esphome::esp32_ble_tracker::ESPBTClient::connect ( )

pure virtual

Implemented in esphome::esp32_ble_client::BLEClientBase.

disconnect()

virtual void esphome::esp32_ble_tracker::ESPBTClient::disconnect ( )

pure virtual

Implemented in esphome::esp32_ble_client::BLEClientBase.

disconnect_pending()

bool esphome::esp32_ble_tracker::ESPBTClient::disconnect_pending ( ) const

inline

Definition at line 239 of file esp32_ble_tracker.h.

gap_event_handler()

virtual void esphome::esp32_ble_tracker::ESPBTClient::gap_event_handler ( esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t * param )

pure virtual

Implemented in esphome::ble_client::BLEClient, esphome::bluetooth_proxy::BluetoothConnection, and esphome::esp32_ble_client::BLEClientBase.

gattc_event_handler()

virtual bool esphome::esp32_ble_tracker::ESPBTClient::gattc_event_handler ( esp_gattc_cb_event_t event, esp_gatt_if_t gattc_if, esp_ble_gattc_cb_param_t * param )

pure virtual

Implemented in esphome::ble_client::BLEClient, esphome::bluetooth_proxy::BluetoothConnection, and esphome::esp32_ble_client::BLEClientBase.

set_state()

virtual void esphome::esp32_ble_tracker::ESPBTClient::set_state ( ClientState st )

inlinevirtual

Set the client state with IDLE handling (clears want_disconnect_).

Notifies the tracker of state change for loop optimization.

Reimplemented in esphome::ble_client::BLEClient, and esphome::esp32_ble_client::BLEClientBase.

Definition at line 244 of file esp32_ble_tracker.h.

set_state_internal_()

void esphome::esp32_ble_tracker::ESPBTClient::set_state_internal_ ( ClientState st )

inlineprotected

Set state without IDLE handling - use for direct state transitions.

Increments the tracker's state version counter to signal that loop() should do full processing on the next iteration.

Definition at line 264 of file esp32_ble_tracker.h.

set_tracker_state_version()

void esphome::esp32_ble_tracker::ESPBTClient::set_tracker_state_version ( uint8_t * version )

inline

Called by ESP32BLETracker::register_client() to enable state change notifications.

The pointer must remain valid for the lifetime of the client (guaranteed since ESP32BLETracker is a singleton that outlives all clients).

Definition at line 255 of file esp32_ble_tracker.h.

state()

ClientState esphome::esp32_ble_tracker::ESPBTClient::state ( ) const

inline

Definition at line 250 of file esp32_ble_tracker.h.

Field Documentation

app_id

uint8_t esphome::esp32_ble_tracker::ESPBTClient::app_id

Definition at line 258 of file esp32_ble_tracker.h.

want_disconnect_

bool esphome::esp32_ble_tracker::ESPBTClient::want_disconnect_ {false}

protected

Definition at line 276 of file esp32_ble_tracker.h.

---

The documentation for this class was generated from the following file:

• esphome/components/esp32_ble_tracker/esp32_ble_tracker.h
