#include <fan.h>

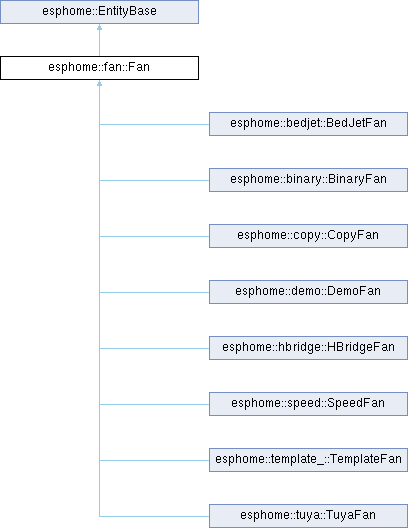

Inheritance diagram for esphome::fan::Fan:

Public Member Functions
FanCall	turn_on ()

FanCall	turn_off ()

FanCall	toggle ()

FanCall	make_call ()

void	add_on_state_callback (std::function< void()> &&callback)
	Register a callback that will be called each time the state changes.

void	publish_state ()

virtual FanTraits	get_traits ()=0

void	set_restore_mode (FanRestoreMode restore_mode)
	Set the restore mode of this fan.

StringRef	get_preset_mode () const
	Get the current preset mode.

bool	has_preset_mode () const
	Check if a preset mode is currently active.

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

void	set_name (const char *name, uint32_t object_id_hash)
	Set name with pre-computed object_id hash (avoids runtime hash calculation) Use hash=0 for dynamic names that need runtime calculation.

bool	has_own_name () const

ESPDEPRECATED("object_id mangles names and all object_id methods are planned for removal " "(see https://github.com/esphome/backlog/issues/76). " "Now is the time to stop using object_id. If still needed, use get_object_id_to() " "which will remain available longer. get_object_id() will be removed in 2026.7.0", "2025.12.0") std uint32_t	get_object_id_hash ()

StringRef	get_object_id_to (std::span< char, OBJECT_ID_MAX_LEN > buf) const
	Get object_id with zero heap allocation For static case: returns StringRef to internal storage (buffer unused) For dynamic case: formats into buffer and returns StringRef to buffer.

size_t	write_object_id_to (char *buf, size_t buf_size) const
	Write object_id directly to buffer, returns length written (excluding null) Useful for building compound strings without intermediate buffer.

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

ESPDEPRECATED("Use get_icon_ref() instead for better performance (avoids string copy). Will be removed in ESPHome 2026.5.0", "2025.11.0") std void	set_icon (const char *icon)

StringRef	get_icon_ref () const

uint32_t	get_device_id () const

void	set_device (Device *device)

Device *	get_device () const

bool	has_state () const

void	set_has_state (bool state)

	ESPDEPRECATED ("Use make_entity_preference<T>() instead, or preferences won't be migrated. " "See https://github.com/esphome/backlog/issues/85. Will be removed in 2027.1.0.", "2026.7.0") uint32_t get_preference_hash()
	Get a unique hash for storing preferences/settings for this entity.

template<typename T >
ESPPreferenceObject	make_entity_preference (uint32_t version=0)
	Create a preference object for storing this entity's state/settings.

Data Fields
bool	state {false}
	The current on/off state of the fan.

bool	oscillating {false}
	The current oscillation state of the fan.

int	speed {0}
	The current fan speed level.

FanDirection	direction {FanDirection::FORWARD}
	The current direction of the fan.

Protected Member Functions
virtual void	control (const FanCall &call)=0

optional< FanRestoreState >	restore_state_ ()

void	save_state_ ()

void	dump_traits_ (const char tag, const char prefix)

bool	set_preset_mode_ (const char *preset_mode, size_t len)
	Set the preset mode (finds and stores pointer from traits).

bool	set_preset_mode_ (const char *preset_mode)

bool	set_preset_mode_ (const std::string &preset_mode)

bool	set_preset_mode_ (StringRef preset_mode)

void	clear_preset_mode_ ()
	Clear the preset mode.

void	apply_preset_mode_ (const FanCall &call)
	Apply preset mode from a FanCall (handles speed-clears-preset convention)

const char *	find_preset_mode_ (const char *preset_mode)
	Find and return the matching preset mode pointer from traits, or nullptr if not found.

const char *	find_preset_mode_ (const char *preset_mode, size_t len)

Protected Member Functions inherited from esphome::EntityBase
ESPPreferenceObject	make_entity_preference_ (size_t size, uint32_t version)
	Non-template helper for make_entity_preference() to avoid code bloat.

void	calc_object_id_ ()

Protected Attributes
friend	FanCall

LazyCallbackManager< void()>	state_callback_ {}

ESPPreferenceObject	rtc_

FanRestoreMode	restore_mode_

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Detailed Description

Definition at line 108 of file fan.h.

Member Function Documentation

◆ add_on_state_callback()

void esphome::fan::Fan::add_on_state_callback ( std::function< void()> && callback )

Register a callback that will be called each time the state changes.

Definition at line 196 of file fan.cpp.

◆ apply_preset_mode_()

void esphome::fan::Fan::apply_preset_mode_ ( const FanCall & call )

protected

Apply preset mode from a FanCall (handles speed-clears-preset convention)

Definition at line 187 of file fan.cpp.

◆ clear_preset_mode_()

void esphome::fan::Fan::clear_preset_mode_ ( )

protected

Clear the preset mode.

Definition at line 185 of file fan.cpp.

◆ control()

virtual void esphome::fan::Fan::control ( const FanCall & call )

protectedpure virtual

Implemented in esphome::bedjet::BedJetFan, esphome::binary::BinaryFan, esphome::copy::CopyFan, esphome::demo::DemoFan, esphome::hbridge::HBridgeFan, esphome::speed::SpeedFan, esphome::template_::TemplateFan, and esphome::tuya::TuyaFan.

◆ dump_traits_()

void esphome::fan::Fan::dump_traits_	(	const char *	tag,
		const char *	prefix )

protected

Definition at line 288 of file fan.cpp.

◆ find_preset_mode_() [1/2]

const char * esphome::fan::Fan::find_preset_mode_ ( const char * preset_mode )

protected

Find and return the matching preset mode pointer from traits, or nullptr if not found.

Definition at line 146 of file fan.cpp.

◆ find_preset_mode_() [2/2]

const char * esphome::fan::Fan::find_preset_mode_	(	const char *	preset_mode,
		size_t	len )

protected

Definition at line 150 of file fan.cpp.

◆ get_preset_mode()

StringRef esphome::fan::Fan::get_preset_mode ( ) const

inline

Get the current preset mode.

Returns a StringRef of the string stored in traits, or empty ref if not set. The returned ref points to string literals from codegen (static storage). Traits are set once at startup and valid for the lifetime of the program.

Definition at line 138 of file fan.h.

◆ get_traits()

virtual FanTraits esphome::fan::Fan::get_traits ( )

pure virtual

Implemented in esphome::bedjet::BedJetFan, esphome::binary::BinaryFan, esphome::copy::CopyFan, esphome::demo::DemoFan, esphome::hbridge::HBridgeFan, esphome::speed::SpeedFan, esphome::template_::TemplateFan, and esphome::tuya::TuyaFan.

◆ has_preset_mode()

bool esphome::fan::Fan::has_preset_mode ( ) const

inline

Check if a preset mode is currently active.

Definition at line 141 of file fan.h.

◆ make_call()

FanCall esphome::fan::Fan::make_call ( )

Definition at line 144 of file fan.cpp.

◆ publish_state()

void esphome::fan::Fan::publish_state ( )

Definition at line 197 of file fan.cpp.

◆ restore_state_()

optional< FanRestoreState > esphome::fan::Fan::restore_state_ ( )

protected

Definition at line 225 of file fan.cpp.

◆ save_state_()

void esphome::fan::Fan::save_state_ ( )

protected

Definition at line 260 of file fan.cpp.

◆ set_preset_mode_() [1/4]

bool esphome::fan::Fan::set_preset_mode_ ( const char * preset_mode )

protected

Definition at line 171 of file fan.cpp.

◆ set_preset_mode_() [2/4]

bool esphome::fan::Fan::set_preset_mode_	(	const char *	preset_mode,
		size_t	len )

protected

Set the preset mode (finds and stores pointer from traits).

Returns true if changed. Passing nullptr or empty string clears the preset mode.

Definition at line 154 of file fan.cpp.

◆ set_preset_mode_() [3/4]

bool esphome::fan::Fan::set_preset_mode_ ( const std::string & preset_mode )

protected

Definition at line 175 of file fan.cpp.

◆ set_preset_mode_() [4/4]

bool esphome::fan::Fan::set_preset_mode_ ( StringRef preset_mode )

protected

Definition at line 179 of file fan.cpp.

◆ set_restore_mode()

void esphome::fan::Fan::set_restore_mode ( FanRestoreMode restore_mode )

inline

Set the restore mode of this fan.

Definition at line 132 of file fan.h.

◆ toggle()

FanCall esphome::fan::Fan::toggle ( )

Definition at line 143 of file fan.cpp.

◆ turn_off()

FanCall esphome::fan::Fan::turn_off ( )

Definition at line 142 of file fan.cpp.

◆ turn_on()

FanCall esphome::fan::Fan::turn_on ( )

Definition at line 141 of file fan.cpp.

Field Documentation

◆ direction

FanDirection esphome::fan::Fan::direction {FanDirection::FORWARD}

The current direction of the fan.

Definition at line 117 of file fan.h.

◆ FanCall

friend esphome::fan::Fan::FanCall

protected

Definition at line 144 of file fan.h.

◆ oscillating

bool esphome::fan::Fan::oscillating {false}

The current oscillation state of the fan.

Definition at line 113 of file fan.h.

◆ restore_mode_

FanRestoreMode esphome::fan::Fan::restore_mode_

protected

Definition at line 170 of file fan.h.

◆ rtc_

ESPPreferenceObject esphome::fan::Fan::rtc_

protected

Definition at line 169 of file fan.h.

◆ speed

int esphome::fan::Fan::speed {0}

The current fan speed level.

Definition at line 115 of file fan.h.

◆ state

bool esphome::fan::Fan::state {false}

The current on/off state of the fan.

Definition at line 111 of file fan.h.

◆ state_callback_

LazyCallbackManager<void()> esphome::fan::Fan::state_callback_ {}

protected

Definition at line 168 of file fan.h.

The documentation for this class was generated from the following files:

esphome/components/fan/fan.h
esphome/components/fan/fan.cpp
