esphome::http_request::HttpContainer Class Reference

#include <http_request.h>

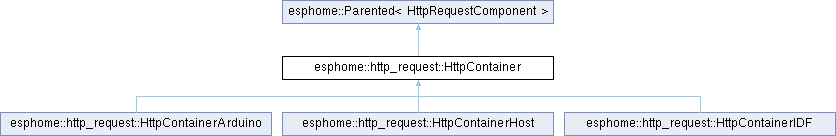

Inheritance diagram for esphome::http_request::HttpContainer:

Public Member Functions
virtual	~HttpContainer ()=default
virtual int	read (uint8_t *buf, size_t max_len)=0
	Read data from the HTTP response body.
virtual void	end ()=0
void	set_secure (bool secure)
void	set_chunked (bool chunked)
size_t	get_bytes_read () const
virtual bool	is_read_complete () const
	Check if all expected content has been read.
std::map< std::string, std::list< std::string > >	get_response_headers ()
	Get response headers.
std::string	get_response_header (const std::string &header_name)
Public Member Functions inherited from esphome::Parented< HttpRequestComponent >
	Parented ()
	Parented (HttpRequestComponent *parent)
HttpRequestComponent *	get_parent () const
	Get the parent of this object.
void	set_parent (HttpRequestComponent *parent)
	Set the parent of this object.

Data Fields
size_t	content_length {0}
int	status_code {-1}
	-1 indicates no response received yet
uint32_t	duration_ms {0}

Protected Attributes
size_t	bytes_read_ {0}
bool	secure_ {false}
bool	is_chunked_ {false}
	True if response uses chunked transfer encoding.
std::map< std::string, std::list< std::string > >	response_headers_ {}
Protected Attributes inherited from esphome::Parented< HttpRequestComponent >
HttpRequestComponent *	parent_

Detailed Description

Definition at line 201 of file http_request.h.

Constructor & Destructor Documentation

~HttpContainer()

virtual esphome::http_request::HttpContainer::~HttpContainer ( )

virtualdefault

Member Function Documentation

end()

virtual void esphome::http_request::HttpContainer::end ( )

pure virtual

Implemented in esphome::http_request::HttpContainerArduino, esphome::http_request::HttpContainerHost, and esphome::http_request::HttpContainerIDF.

get_bytes_read()

size_t esphome::http_request::HttpContainer::get_bytes_read ( ) const

inline

Definition at line 241 of file http_request.h.

get_response_header()

std::string esphome::http_request::HttpContainer::get_response_header

(

const std::string &

header_name

)

Definition at line 24 of file http_request.cpp.

get_response_headers()

std::map< std::string, std::list< std::string > > esphome::http_request::HttpContainer::get_response_headers ( )

inline

Get response headers.

Returns

The key is the lower case response header name, the value is the header value.

Definition at line 266 of file http_request.h.

is_read_complete()

virtual bool esphome::http_request::HttpContainer::is_read_complete ( ) const

inlinevirtual

Check if all expected content has been read.

Base implementation handles non-chunked responses and status-code-based no-body checks. Platform implementations may override for chunked completion detection:

• ESP-IDF: overrides to call esp_http_client_is_complete_data_received() for chunked.
• Arduino: read_chunked_() clears is_chunked_ and sets content_length on the final chunk, after which the base implementation detects completion.

Reimplemented in esphome::http_request::HttpContainerIDF.

Definition at line 249 of file http_request.h.

read()

virtual int esphome::http_request::HttpContainer::read ( uint8_t * buf, size_t max_len )

pure virtual

Read data from the HTTP response body.

WARNING: These semantics differ from BSD sockets! BSD sockets: 0 = EOF (connection closed) This method: 0 = no data yet OR all content read, negative = error/closed

Parameters

buf	Buffer to read data into
max_len	Maximum number of bytes to read

Returns

• > 0: Number of bytes read successfully
• 0: No data available yet OR all content read (check get_bytes_read() >= content_length to distinguish)
• HTTP_ERROR_CONNECTION_CLOSED (-1): Connection closed prematurely
• < -1: Other error (platform-specific error code)

Platform notes:

• ESP-IDF: blocking read, 0 only when all content read
• Arduino: non-blocking, 0 can mean "no data yet" or "all content read"

Use get_bytes_read() and content_length to track progress. When get_bytes_read() >= content_length, all data has been received.

IMPORTANT: Do not use raw return values directly. Use these helpers:

• http_read_loop_result(): for loops with per-chunk processing
• http_read_fully(): for simple "read N bytes" operations

Implemented in esphome::http_request::HttpContainerArduino, esphome::http_request::HttpContainerHost, and esphome::http_request::HttpContainerIDF.

set_chunked()

void esphome::http_request::HttpContainer::set_chunked ( bool chunked )

inline

Definition at line 239 of file http_request.h.

set_secure()

void esphome::http_request::HttpContainer::set_secure ( bool secure )

inline

Definition at line 238 of file http_request.h.

Field Documentation

bytes_read_

size_t esphome::http_request::HttpContainer::bytes_read_ {0}

protected

Definition at line 271 of file http_request.h.

content_length

size_t esphome::http_request::HttpContainer::content_length {0}

Definition at line 204 of file http_request.h.

duration_ms

uint32_t esphome::http_request::HttpContainer::duration_ms {0}

Definition at line 206 of file http_request.h.

is_chunked_

bool esphome::http_request::HttpContainer::is_chunked_ {false}

protected

True if response uses chunked transfer encoding.

Definition at line 273 of file http_request.h.

response_headers_

std::map<std::string, std::list<std::string> > esphome::http_request::HttpContainer::response_headers_ {}

protected

Definition at line 274 of file http_request.h.

secure_

bool esphome::http_request::HttpContainer::secure_ {false}

protected

Definition at line 272 of file http_request.h.

status_code

int esphome::http_request::HttpContainer::status_code {-1}

-1 indicates no response received yet

Definition at line 205 of file http_request.h.

---

The documentation for this class was generated from the following files:

• esphome/components/http_request/http_request.h
• esphome/components/http_request/http_request.cpp
