Standard I2S speaker implementation. More...

#include <i2s_audio_speaker_standard.h>

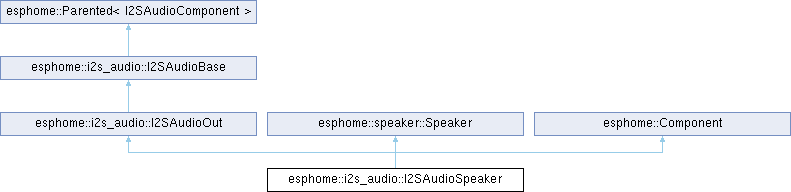

Inheritance diagram for esphome::i2s_audio::I2SAudioSpeaker:

Public Member Functions
void	dump_config () override

void	set_i2s_comm_fmt (I2SCommFmt fmt)

Public Member Functions inherited from esphome::i2s_audio::I2SAudioSpeakerBase
float	get_setup_priority () const override

void	setup () override

void	dump_config () override

void	loop () override

void	set_buffer_duration (uint32_t buffer_duration_ms)

void	set_timeout (uint32_t ms)

void	set_dout_pin (uint8_t pin)

i2s_chan_handle_t	get_tx_handle () const
	Get the I2S TX channel handle.

void	start () override

void	stop () override

void	finish () override

void	set_pause_state (bool pause_state) override

bool	get_pause_state () const override

void	stop_ (bool wait_on_empty)
	Plays the provided audio data.

esp_err_t	init_i2s_channel_ (const i2s_chan_config_t &chan_cfg, const i2s_std_config_t &std_cfg, size_t event_queue_size)
	Shared I2S channel allocation, initialization, and event queue setup.

void	stop_i2s_driver_ ()
	Stops the I2S driver and unlocks the I2S port.

virtual void	on_task_stopped ()
	Called in loop() when the task has stopped. Override for mode-specific cleanup.

void	apply_software_volume_ (uint8_t *data, size_t bytes_read)
	Apply software volume control using Q15 fixed-point scaling.

void	swap_esp32_mono_samples_ (uint8_t *data, size_t bytes_read)
	Swap adjacent 16-bit mono samples for ESP32 (non-variant) hardware quirk.

Public Member Functions inherited from esphome::i2s_audio::I2SAudioBase
void	set_i2s_role (i2s_role_t role)

void	set_slot_mode (i2s_slot_mode_t slot_mode)

void	set_std_slot_mask (i2s_std_slot_mask_t std_slot_mask)

void	set_slot_bit_width (i2s_slot_bit_width_t slot_bit_width)

void	set_sample_rate (uint32_t sample_rate)

void	set_use_apll (uint32_t use_apll)

void	set_mclk_multiple (i2s_mclk_multiple_t mclk_multiple)

Public Member Functions inherited from esphome::Parented< I2SAudioComponent >
	Parented ()

	Parented (I2SAudioComponent *parent)

I2SAudioComponent *	get_parent () const
	Get the parent of this object.

void	set_parent (I2SAudioComponent *parent)
	Set the parent of this object.

Public Member Functions inherited from esphome::speaker::Speaker
virtual size_t	play (const uint8_t *data, size_t length)=0
	Plays the provided audio data.

size_t	play (const std::vector< uint8_t > &data)

virtual bool	has_buffered_data () const =0

bool	is_running () const

bool	is_stopped () const

virtual void	set_volume (float volume)

virtual float	get_volume ()

virtual void	set_mute_state (bool mute_state)

virtual bool	get_mute_state ()

void	set_audio_dac (audio_dac::AudioDac *audio_dac)

void	set_audio_stream_info (const audio::AudioStreamInfo &audio_stream_info)

audio::AudioStreamInfo &	get_audio_stream_info ()

template<typename F >
void	add_audio_output_callback (F &&callback)
	Callback function for sending the duration of the audio written to the speaker since the last callback.

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const LogString *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning ()

void	status_set_warning (const char *message)

void	status_set_warning (const LogString *message)

void	status_set_error ()

void	status_set_error (const LogString *message)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const char *name, uint32_t length=5000)
	Set warning status flag and automatically clear it after a timeout.

void	status_momentary_error (const char *name, uint32_t length=5000)
	Set error status flag and automatically clear it after a timeout.

bool	has_overridden_loop () const

const LogString *	get_component_log_str () const ESPHOME_ALWAYS_INLINE
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out)

Protected Member Functions
void	run_speaker_task () override

esp_err_t	start_i2s_driver (audio::AudioStreamInfo &audio_stream_info) override

Protected Member Functions inherited from esphome::Component
friend	void::setup ()

friend	void::original_setup ()

void	set_component_source_ (uint8_t index)
	Set where this component was loaded from for some debug messages.

virtual void	call_setup ()

void	call_dump_config_ ()

void	enable_loop_slow_path_ ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

bool	set_status_flag_ (uint8_t flag)
	Helper to set a status LED flag on both this component and the app.

void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).

void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (uint32_t id)

bool	cancel_interval (InternalSchedulerID id)

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const char *name

	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t id

	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t initial_wait_time

ESPDEPRECATED("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const std	ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const char *name)

	ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(uint32_t id)

void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).

void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (uint32_t id)

bool	cancel_timeout (InternalSchedulerID id)

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)

bool	cancel_defer (uint32_t id)

void	status_clear_warning_slow_path_ ()

void	status_clear_error_slow_path_ ()

Protected Attributes
I2SCommFmt	i2s_comm_fmt_ {I2SCommFmt::STANDARD}

Protected Attributes inherited from esphome::i2s_audio::I2SAudioBase
i2s_role_t	i2s_role_ {}

i2s_slot_mode_t	slot_mode_

i2s_std_slot_mask_t	std_slot_mask_

i2s_slot_bit_width_t	slot_bit_width_

uint32_t	sample_rate_

bool	use_apll_

i2s_mclk_multiple_t	mclk_multiple_

Protected Attributes inherited from esphome::Parented< I2SAudioComponent >
I2SAudioComponent *	parent_

Protected Attributes inherited from esphome::speaker::Speaker
State	state_ {STATE_STOPPED}

audio::AudioStreamInfo	audio_stream_info_

float	volume_ {1.0f}

bool	mute_state_ {false}

audio_dac::AudioDac *	audio_dac_ {nullptr}

CallbackManager< void(uint32_t, int64_t)>	audio_output_callback_ {}

Protected Attributes inherited from esphome::Component
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_interval(const std voi	set_interval )(const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_interval(const std boo	cancel_interval )(const char *name)
	Cancel an interval function.

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t	initial_wait_time

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t	max_attempts

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> &&	f

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)

uint32_t	initial_wait_time

uint32_t uint8_t	max_attempts

uint32_t uint8_t std::function< RetryResult(uint8_t)> &&	f

uint32_t uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)

uint8_t	max_attempts

uint8_t std::function< RetryResult(uint8_t)> &&	f

uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)

ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_timeout(const std voi	set_timeout )(const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_timeout(const std boo	cancel_timeout )(const char *name)
	Cancel a timeout function.

ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") void defer(const std voi	defer )(const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_defer(const std boo	cancel_defer )(const char *name)
	Cancel a defer callback using the specified name, name must not be empty.

uint8_t	component_source_index_ {0}
	Index into component source PROGMEM lookup table (0 = not set)

uint8_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS}
	Warn threshold in centiseconds (max 2550ms)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

ComponentRuntimeStats	runtime_stats_

Additional Inherited Members
Static Public Member Functions inherited from esphome::i2s_audio::I2SAudioSpeakerBase
static bool	i2s_on_sent_cb (i2s_chan_handle_t handle, i2s_event_data_t event, void user_ctx)
	Callback function used to send playback timestamps to the speaker task.

Data Fields inherited from esphome::i2s_audio::I2SAudioSpeakerBase
TaskHandle_t	speaker_task_handle_ {nullptr}

EventGroupHandle_t	event_group_ {nullptr}

QueueHandle_t	i2s_event_queue_ {nullptr}

QueueHandle_t	write_records_queue_ {nullptr}

std::weak_ptr< ring_buffer::RingBuffer >	audio_ring_buffer_

uint32_t	buffer_duration_ms_

optional< uint32_t >	timeout_

bool	pause_state_ {false}

int32_t	q31_volume_factor_ {INT32_MAX}

audio::AudioStreamInfo	current_stream_info_

gpio_num_t	dout_pin_

i2s_chan_handle_t	tx_handle_ {nullptr}
