#include <nextion.h>

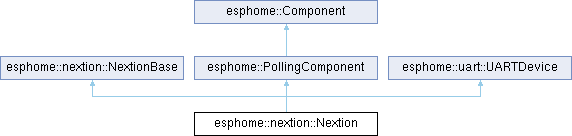

Inheritance diagram for esphome::nextion::Nextion:

Public Member Functions
void	set_max_commands_per_loop (uint16_t value)
	Set the maximum number of commands to process in each loop iteration.

uint16_t	get_max_commands_per_loop () const
	Get the current maximum number of commands allowed per loop iteration.

void	set_max_queue_size (size_t size)
	Set the maximum allowed queue size.

size_t	get_max_queue_size () const
	Get the maximum allowed queue size.

void	set_command_spacing (uint32_t spacing_ms)
	Set the command spacing for the display.

void	set_component_text (const char component, const char text)
	Set the text of a component to a static string.

void	set_component_text_printf (const char component, const char format,...) __attribute__((format(printf
	Set the text of a component to a formatted string.

void void	set_component_value (const char *component, int32_t value)
	Set the integer value of a component.

void	set_component_picture (const char *component, uint8_t picture_id)
	Set the picture of an image component.

void	set_component_background_color (const char *component, uint16_t color)
	Set the background color of a component.

void	set_component_background_color (const char component, const char color)
	Set the background color of a component.

void	set_component_background_color (const char *component, Color color) override
	Set the background color of a component.

void	set_component_pressed_background_color (const char *component, uint16_t color)
	Set the pressed background color of a component.

void	set_component_pressed_background_color (const char component, const char color)
	Set the pressed background color of a component.

void	set_component_pressed_background_color (const char *component, Color color) override
	Set the pressed background color of a component.

void	set_component_foreground_color (const char *component, uint16_t color)
	Set the foreground color of a component.

void	set_component_foreground_color (const char component, const char color)
	Set the foreground color of a component.

void	set_component_foreground_color (const char *component, Color color) override
	Set the foreground color of a component.

void	set_component_pressed_foreground_color (const char *component, uint16_t color)
	Set the pressed foreground color of a component.

void	set_component_pressed_foreground_color (const char component, const char color)
	Set the pressed foreground color of a component.

void	set_component_pressed_foreground_color (const char *component, Color color) override
	Set the pressed foreground color of a component.

void	set_component_pic (const char *component, uint8_t pic_id)
	Set the picture id of a component.

void	set_component_picc (const char *component, uint8_t pic_id)
	Set the background picture id of component.

void	set_component_font_color (const char *component, uint16_t color)
	Set the font color of a component.

void	set_component_font_color (const char component, const char color)
	Set the font color of a component.

void	set_component_font_color (const char *component, Color color) override
	Set the font color of a component.

void	set_component_pressed_font_color (const char *component, uint16_t color)
	Set the pressed font color of a component.

void	set_component_pressed_font_color (const char component, const char color)
	Set the pressed font color of a component.

void	set_component_pressed_font_color (const char *component, Color color) override
	Set the pressed font color of a component.

void	set_component_coordinates (const char *component, uint16_t x, uint16_t y)
	Set the coordinates of a component on screen.

void	set_component_font (const char *component, uint8_t font_id) override
	Set the font id for a component.

void	set_nextion_rtc_time (ESPTime time)
	Send the current time to the nextion display.

void	goto_page (const char *page)
	Show the page with a given name.

void	goto_page (uint8_t page)
	Show the page with a given id.

void	hide_component (const char *component) override
	Hide a component.

void	show_component (const char *component) override
	Show a component.

void	enable_component_touch (const char *component)
	Enable touch for a component.

void	disable_component_touch (const char *component)
	Disable touch for a component.

void	add_waveform_data (uint8_t component_id, uint8_t channel_number, uint8_t value)
	Add waveform data to a waveform component.

void	open_waveform_channel (uint8_t component_id, uint8_t channel_number, uint8_t value)

void	display_picture (uint16_t picture_id, uint16_t x_start, uint16_t y_start)
	Display a picture at coordinates.

void	fill_area (uint16_t x1, uint16_t y1, uint16_t width, uint16_t height, uint16_t color)
	Fill a rectangle with a color.

void	fill_area (uint16_t x1, uint16_t y1, uint16_t width, uint16_t height, const char *color)
	Fill a rectangle with a color.

void	fill_area (uint16_t x1, uint16_t y1, uint16_t width, uint16_t height, Color color)
	Fill a rectangle with a color.

void	line (uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, uint16_t color)
	Draw a line on the screen.

void	line (uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, const char *color)
	Draw a line on the screen.

void	line (uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, Color color)
	Draw a line on the screen.

void	rectangle (uint16_t x1, uint16_t y1, uint16_t width, uint16_t height, uint16_t color)
	Draw a rectangle outline.

void	rectangle (uint16_t x1, uint16_t y1, uint16_t width, uint16_t height, const char *color)
	Draw a rectangle outline.

void	rectangle (uint16_t x1, uint16_t y1, uint16_t width, uint16_t height, Color color)
	Draw a rectangle outline.

void	circle (uint16_t center_x, uint16_t center_y, uint16_t radius, uint16_t color)
	Draw a circle outline.

void	circle (uint16_t center_x, uint16_t center_y, uint16_t radius, const char *color)
	Draw a circle outline.

void	circle (uint16_t center_x, uint16_t center_y, uint16_t radius, Color color)
	Draw a circle outline.

void	filled_circle (uint16_t center_x, uint16_t center_y, uint16_t radius, uint16_t color)
	Draw a filled circled.

void	filled_circle (uint16_t center_x, uint16_t center_y, uint16_t radius, const char *color)
	Draw a filled circled.

void	filled_circle (uint16_t center_x, uint16_t center_y, uint16_t radius, Color color)
	Draw a filled circled.

void	qrcode (uint16_t x1, uint16_t y1, const char *content, uint16_t size=200, uint16_t background_color=65535, uint16_t foreground_color=0, uint8_t logo_pic=-1, uint8_t border_width=8)
	Draws a QR code in the screen.

void	qrcode (uint16_t x1, uint16_t y1, const char *content, uint16_t size, Color background_color=Color(255, 255, 255), Color foreground_color=Color(0, 0, 0), uint8_t logo_pic=-1, uint8_t border_width=8)
	Draws a QR code in the screen.

void	set_backlight_brightness (float brightness)
	Set the brightness of the backlight.

void	sleep (bool sleep)
	Sets Nextion mode between sleep and awake.

bool	set_protocol_reparse_mode (bool active_mode)
	Sets the Nextion display's protocol reparse mode.

void	set_component_vid (const char *component, uint8_t vid_id)
	Set the video id of a component.

void	set_component_drag (const char *component, bool drag)
	Set the drag availability of a component.

void	set_component_aph (const char *component, uint8_t aph)
	Set the opaqueness (fading) of a component.

void	set_component_position (const char *component, uint32_t x, uint32_t y)
	Set the position of a component.

void	register_touch_component (NextionComponentBase *obj)

void	register_switch_component (NextionComponentBase *obj)

void	register_binarysensor_component (NextionComponentBase *obj)

void	register_sensor_component (NextionComponentBase *obj)

void	register_textsensor_component (NextionComponentBase *obj)

void	setup () override

void	set_brightness (float brightness)

float	get_setup_priority () const override

void	update () override

void	loop () override

void	set_writer (const nextion_writer_t &writer)

void	set_wait_for_ack (bool wait_for_ack)

bool	send_command (const char *command)
	Manually send a raw command to the display.

bool	send_command_printf (const char *format,...) __attribute__((format(printf
	Manually send a raw formatted command to the display.

bool void	set_tft_url (const std::string &tft_url)
	Set the tft file URL.

bool	upload_tft (uint32_t baud_rate=0, bool exit_reparse=true)
	Uploads the TFT file to the Nextion display.

void	dump_config () override

void	soft_reset ()
	Softreset the Nextion.

void	add_sleep_state_callback (std::function< void()> &&callback)
	Add a callback to be notified of sleep state changes.

void	add_wake_state_callback (std::function< void()> &&callback)
	Add a callback to be notified of wake state changes.

void	add_setup_state_callback (std::function< void()> &&callback)
	Add a callback to be notified when the nextion completes its initialize setup.

void	add_new_page_callback (std::function< void(uint8_t)> &&callback)
	Add a callback to be notified when the nextion changes pages.

void	add_touch_event_callback (std::function< void(uint8_t, uint8_t, bool)> &&callback)
	Add a callback to be notified when Nextion has a touch event.

void	add_buffer_overflow_event_callback (std::function< void()> &&callback)
	Add a callback to be notified when the nextion reports a buffer overflow.

void	update_all_components ()

void	set_nextion_sensor_state (int queue_type, const std::string &name, float state)
	Set the nextion sensor state object.

void	set_nextion_sensor_state (NextionQueueType queue_type, const std::string &name, float state)

void	set_nextion_text_state (const std::string &name, const std::string &state)

void	add_no_result_to_queue_with_set (NextionComponentBase *component, int32_t state_value) override

void	add_no_result_to_queue_with_set (const std::string &variable_name, const std::string &variable_name_to_send, int32_t state_value) override

void	add_no_result_to_queue_with_set (NextionComponentBase *component, const std::string &state_value) override

void	add_no_result_to_queue_with_set (const std::string &variable_name, const std::string &variable_name_to_send, const std::string &state_value) override

void	add_to_get_queue (NextionComponentBase *component) override
	Queue a GET command for a component that expects a response from the Nextion display.

void	add_addt_command_to_queue (NextionComponentBase *component) override
	Add addt command to the queue.

void	update_components_by_prefix (const std::string &prefix)

void	set_touch_sleep_timeout (uint16_t touch_sleep_timeout=0)
	Set the touch sleep timeout of the display using the `thsp` command.

void	set_wake_up_page (uint8_t wake_up_page=255)
	Sets which page Nextion loads when exiting sleep mode.

void	set_start_up_page (uint8_t start_up_page=255)
	Sets which page Nextion loads when connecting to ESPHome.

void	set_auto_wake_on_touch (bool auto_wake_on_touch)
	Sets if Nextion should auto-wake from sleep when touch press occurs.

size_t	queue_size ()
	Retrieves the number of commands pending in the Nextion command queue.

bool	is_updating () override
	Check if the TFT update process is currently running.

bool	is_connected ()
	Check if the Nextion display is successfully connected.

Public Member Functions inherited from esphome::nextion::NextionBase
bool	is_sleeping ()

bool	is_setup ()

bool	is_detected ()

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message="unspecified")

void	status_set_error (const char *message="unspecified")

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Public Member Functions inherited from esphome::uart::UARTDevice
	UARTDevice ()=default

	UARTDevice (UARTComponent *parent)

void	set_uart_parent (UARTComponent *parent)

void	write_byte (uint8_t data)

void	write_array (const uint8_t *data, size_t len)

void	write_array (const std::vector< uint8_t > &data)

template<size_t N>
void	write_array (const std::array< uint8_t, N > &data)

void	write_str (const char *str)

bool	read_byte (uint8_t *data)

bool	peek_byte (uint8_t *data)

bool	read_array (uint8_t *data, size_t len)

template<size_t N>
optional< std::array< uint8_t, N > >	read_array ()

int	available ()

void	flush ()

int	read ()

size_t	write (uint8_t data)

int	peek ()

void	check_uart_settings (uint32_t baud_rate, uint8_t stop_bits=1, UARTParityOptions parity=UART_CONFIG_PARITY_NONE, uint8_t data_bits=8)
	Check that the configuration of the UART bus matches the provided values and otherwise print a warning.

Protected Member Functions
void	process_pending_in_queue_ ()
	Process any commands in the queue that are pending due to command spacing.

uint16_t	recv_ret_string_ (std::string &response, uint32_t timeout, bool recv_flag)

void	all_components_send_state_ (bool force_update=false)

bool	remove_from_q_ (bool report_empty=true)

void	process_nextion_commands_ ()

void	process_serial_ ()

bool	send_command_ (const std::string &command)
	Manually send a raw command to the display and don't wait for an acknowledgement packet.

void	add_no_result_to_queue_ (const std::string &variable_name)
	Add a command to the Nextion queue that expects no response.

bool	add_no_result_to_queue_with_ignore_sleep_printf_ (const std::string &variable_name, const char *format,...) __attribute__((format(printf

bool void	add_no_result_to_queue_with_command_ (const std::string &variable_name, const std::string &command)

void	add_no_result_to_queue_with_pending_command_ (const std::string &variable_name, const std::string &command)
	Add a command to the Nextion queue with a pending command for retry.

bool	add_no_result_to_queue_with_printf_ (const std::string &variable_name, const char *format,...) __attribute__((format(printf
	Sends a formatted command to the nextion.

bool void	add_no_result_to_queue_with_set_internal_ (const std::string &variable_name, const std::string &variable_name_to_send, int32_t state_value, bool is_sleep_safe=false)

void	add_no_result_to_queue_with_set_internal_ (const std::string &variable_name, const std::string &variable_name_to_send, const std::string &state_value, bool is_sleep_safe=false)

void	check_pending_waveform_ ()

WiFiClient *	get_wifi_client_ ()

int	upload_by_chunks_ (HTTPClient &http_client, uint32_t &range_start)
	will request chunk_size chunks from the web server and send each to the nextion

int	upload_by_chunks_ (esp_http_client_handle_t http_client, uint32_t &range_start)
	will request 4096 bytes chunks from the web server and send each to Nextion

bool	upload_end_ (bool successful)
	Ends the upload process, restart Nextion and, if successful, restarts ESP.

uint32_t	get_free_heap_ ()
	Returns the ESP Free Heap memory.

bool	check_connect_ ()

void	remove_front_no_sensors_ ()

void	print_queue_members_ ()

void	reset_ (bool reset_nextion=true)

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_dump_config ()

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
uint16_t	max_commands_per_loop_ {1000}

size_t	max_queue_size_ {0}

NextionCommandPacer	command_pacer_ {0}

std::deque< NextionQueue * >	nextion_queue_

std::deque< NextionQueue * >	waveform_queue_

uint32_t	comok_sent_ = 0

struct {

uint8_t is_connected_: 1
	Connection established with Nextion display. More...

uint8_t sent_setup_commands_: 1
	Initial setup commands have been sent. More...

uint8_t ignore_is_setup_: 1
	Temporarily ignore setup state for special operations. More...

uint8_t nextion_reports_is_setup_: 1
	Nextion has reported successful initialization. More...

uint8_t is_updating_: 1
	TFT firmware update is currently in progress. More...

uint8_t auto_wake_on_touch_: 1
	Display should wake automatically on touch (default: true) More...

uint8_t reserved_: 2
	Reserved bits for future flag additions. More...

}	connection_state_
	Status flags for Nextion display state management.

uint16_t	touch_sleep_timeout_ = 0

uint8_t	wake_up_page_ = 255

uint8_t	start_up_page_ = 255

bool	auto_wake_on_touch_ = true

WiFiClient *	wifi_client_ {nullptr}

BearSSL::WiFiClientSecure *	wifi_client_secure_ {nullptr}

std::string	tft_url_

uint32_t	content_length_ = 0

int	tft_size_ = 0

uint32_t	original_baud_rate_ = 0

bool	upload_first_chunk_sent_ = false

std::vector< NextionComponentBase * >	touch_

std::vector< NextionComponentBase * >	switchtype_

std::vector< NextionComponentBase * >	sensortype_

std::vector< NextionComponentBase * >	textsensortype_

std::vector< NextionComponentBase * >	binarysensortype_

CallbackManager< void()>	setup_callback_ {}

CallbackManager< void()>	sleep_callback_ {}

CallbackManager< void()>	wake_callback_ {}

CallbackManager< void(uint8_t)>	page_callback_ {}

CallbackManager< void(uint8_t, uint8_t, bool)>	touch_callback_ {}

CallbackManager< void()>	buffer_overflow_callback_ {}

optional< nextion_writer_t >	writer_

optional< float >	brightness_

std::string	device_model_

std::string	firmware_version_

std::string	serial_number_

std::string	flash_size_

std::string	command_data_

const uint16_t	startup_override_ms_ = 8000

const uint16_t	max_q_age_ms_ = 8000

uint32_t	started_ms_ = 0

Protected Attributes inherited from esphome::nextion::NextionBase
bool	is_setup_ = false

bool	is_sleeping_ = false

bool	is_detected_ = false

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
const char *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-1: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED) Bit 2: STATUS_LED_WARNING Bit 3: STATUS_LED_ERROR Bits 4-7: Unused - reserved for future expansion (50% of the bits are free)

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Protected Attributes inherited from esphome::uart::UARTDevice
UARTComponent *	parent_ {nullptr}

Detailed Description

Definition at line 76 of file nextion.h.

Member Function Documentation

◆ add_addt_command_to_queue()

void esphome::nextion::Nextion::add_addt_command_to_queue ( NextionComponentBase * component )

overridevirtual

Add addt command to the queue.

Parameters

component_id	The waveform component id
wave_chan_id	The waveform channel to send it to
buffer_to_send	The buffer size
buffer_size	The buffer data

Implements esphome::nextion::NextionBase.

Definition at line 1255 of file nextion.cpp.

◆ add_buffer_overflow_event_callback()

void esphome::nextion::Nextion::add_buffer_overflow_event_callback ( std::function< void()> && callback )

Add a callback to be notified when the nextion reports a buffer overflow.

Parameters

callback The void() callback.

Definition at line 224 of file nextion.cpp.

◆ add_new_page_callback()

void esphome::nextion::Nextion::add_new_page_callback ( std::function< void(uint8_t)> && callback )

Add a callback to be notified when the nextion changes pages.

Parameters

callback The void(std::string) callback.

Definition at line 216 of file nextion.cpp.

◆ add_no_result_to_queue_()

void esphome::nextion::Nextion::add_no_result_to_queue_ ( const std::string & variable_name )

protected

Add a command to the Nextion queue that expects no response.

This is typically used for write-only operations such as variable assignments or component updates where no return value or acknowledgment is expected from the display.

If the max_queue_size limit is configured and reached, the command will be skipped.

Parameters

variable_name Name of the variable or component associated with the command.

Definition at line 1030 of file nextion.cpp.

◆ add_no_result_to_queue_with_command_()

void esphome::nextion::Nextion::add_no_result_to_queue_with_command_	(	const std::string &	variable_name,
		const std::string &	command )

protected

Parameters

variable_name	Variable name for the queue
command

Definition at line 1063 of file nextion.cpp.

◆ add_no_result_to_queue_with_ignore_sleep_printf_()

bool esphome::nextion::Nextion::add_no_result_to_queue_with_ignore_sleep_printf_	(	const std::string &	variable_name,
		const char *	format,
			... )

protected

Definition at line 1105 of file nextion.cpp.

◆ add_no_result_to_queue_with_pending_command_()

void esphome::nextion::Nextion::add_no_result_to_queue_with_pending_command_	(	const std::string &	variable_name,
		const std::string &	command )

protected

Add a command to the Nextion queue with a pending command for retry.

This method creates a queue entry for a command that was blocked by command spacing. The command string is stored in the queue item's pending_command field so it can be retried later when spacing allows. This ensures commands are not lost when sent too quickly.

If the max_queue_size limit is configured and reached, the command will be dropped.

Parameters

variable_name	Name of the variable or component associated with the command
command	The actual command string to be sent when spacing allows

Definition at line 1078 of file nextion.cpp.

◆ add_no_result_to_queue_with_printf_()

bool esphome::nextion::Nextion::add_no_result_to_queue_with_printf_	(	const std::string &	variable_name,
		const char *	format,
			... )

protected

Sends a formatted command to the nextion.

Parameters

variable_name	Variable name for the queue
format	The printf-style command format, like "vis %s,0"
...	The format arguments

Definition at line 1131 of file nextion.cpp.

◆ add_no_result_to_queue_with_set() [1/4]

void esphome::nextion::Nextion::add_no_result_to_queue_with_set	(	const std::string &	variable_name,
		const std::string &	variable_name_to_send,
		const std::string &	state_value )

overridevirtual

Implements esphome::nextion::NextionBase.

Definition at line 1190 of file nextion.cpp.

◆ add_no_result_to_queue_with_set() [2/4]

void esphome::nextion::Nextion::add_no_result_to_queue_with_set	(	const std::string &	variable_name,
		const std::string &	variable_name_to_send,
		int32_t	state_value )

overridevirtual

Implements esphome::nextion::NextionBase.

Definition at line 1163 of file nextion.cpp.

◆ add_no_result_to_queue_with_set() [3/4]

void esphome::nextion::Nextion::add_no_result_to_queue_with_set	(	NextionComponentBase *	component,
		const std::string &	state_value )

overridevirtual

Parameters

variable_name	Variable name for the queue
variable_name_to_send	Variable name for the left of the command
state_value	String value to set
is_sleep_safe	The command is safe to send when the Nextion is sleeping

Implements esphome::nextion::NextionBase.

Definition at line 1186 of file nextion.cpp.

◆ add_no_result_to_queue_with_set() [4/4]

void esphome::nextion::Nextion::add_no_result_to_queue_with_set	(	NextionComponentBase *	component,
		int32_t	state_value )

overridevirtual

Parameters

variable_name	Variable name for the queue
variable_name_to_send	Variable name for the left of the command
state_value	Value to set
is_sleep_safe	The command is safe to send when the Nextion is sleeping

Implements esphome::nextion::NextionBase.

Definition at line 1158 of file nextion.cpp.

◆ add_no_result_to_queue_with_set_internal_() [1/2]

void esphome::nextion::Nextion::add_no_result_to_queue_with_set_internal_	(	const std::string &	variable_name,
		const std::string &	variable_name_to_send,
		const std::string &	state_value,
		bool	is_sleep_safe = false )

protected

Definition at line 1196 of file nextion.cpp.

◆ add_no_result_to_queue_with_set_internal_() [2/2]

void esphome::nextion::Nextion::add_no_result_to_queue_with_set_internal_	(	const std::string &	variable_name,
		const std::string &	variable_name_to_send,
		int32_t	state_value,
		bool	is_sleep_safe = false )

protected

Definition at line 1168 of file nextion.cpp.

◆ add_setup_state_callback()

void esphome::nextion::Nextion::add_setup_state_callback ( std::function< void()> && callback )

Add a callback to be notified when the nextion completes its initialize setup.

Parameters

callback The void() callback.

Definition at line 212 of file nextion.cpp.

◆ add_sleep_state_callback()

void esphome::nextion::Nextion::add_sleep_state_callback ( std::function< void()> && callback )

Add a callback to be notified of sleep state changes.

Parameters

callback The void() callback.

Definition at line 204 of file nextion.cpp.

◆ add_to_get_queue()

void esphome::nextion::Nextion::add_to_get_queue ( NextionComponentBase * component )

overridevirtual

Queue a GET command for a component that expects a response from the Nextion display.

This method is used for querying values such as sensor states, text content, or switch status. The component will be added to the Nextion queue only if the display is already set up, the queue has not reached the configured maximum size (if set), and the command is sent successfully.

Parameters

component Pointer to the Nextion component that will handle the response.

Implements esphome::nextion::NextionBase.

Definition at line 1215 of file nextion.cpp.

◆ add_touch_event_callback()

void esphome::nextion::Nextion::add_touch_event_callback ( std::function< void(uint8_t, uint8_t, bool)> && callback )

Add a callback to be notified when Nextion has a touch event.

Parameters

callback The void() callback.

Definition at line 220 of file nextion.cpp.

◆ add_wake_state_callback()

void esphome::nextion::Nextion::add_wake_state_callback ( std::function< void()> && callback )

Add a callback to be notified of wake state changes.

Parameters

callback The void() callback.

Definition at line 208 of file nextion.cpp.

◆ add_waveform_data()

void esphome::nextion::Nextion::add_waveform_data	(	uint8_t	component_id,
		uint8_t	channel_number,
		uint8_t	value )

Add waveform data to a waveform component.

Parameters

component_id	The integer component id.
channel_number	The channel number to write to.
value	The value to write.

Definition at line 232 of file nextion_commands.cpp.

◆ all_components_send_state_()

void esphome::nextion::Nextion::all_components_send_state_ ( bool force_update = false )

protected

Definition at line 935 of file nextion.cpp.

◆ check_connect_()

bool esphome::nextion::Nextion::check_connect_ ( )

protected

Definition at line 47 of file nextion.cpp.

◆ check_pending_waveform_()

void esphome::nextion::Nextion::check_pending_waveform_ ( )

protected

Definition at line 1275 of file nextion.cpp.

◆ circle() [1/3]

void esphome::nextion::Nextion::circle	(	uint16_t	center_x,
		uint16_t	center_y,
		uint16_t	radius,
		Color	color )

Draw a circle outline.

Parameters

center_x	The center x coordinate.
center_y	The center y coordinate.
radius	The circle radius.
color	The color to draw with (as Color).

Definition at line 312 of file nextion_commands.cpp.

◆ circle() [2/3]

void esphome::nextion::Nextion::circle	(	uint16_t	center_x,
		uint16_t	center_y,
		uint16_t	radius,
		const char *	color )

Draw a circle outline.

Parameters

center_x	The center x coordinate.
center_y	The center y coordinate.
radius	The circle radius.
color	The color to draw with (as a string). Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 307 of file nextion_commands.cpp.

◆ circle() [3/3]

void esphome::nextion::Nextion::circle	(	uint16_t	center_x,
		uint16_t	center_y,
		uint16_t	radius,
		uint16_t	color )

Draw a circle outline.

Parameters

center_x	The center x coordinate.
center_y	The center y coordinate.
radius	The circle radius.
color	The color to draw with (number). Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 302 of file nextion_commands.cpp.

◆ disable_component_touch()

void esphome::nextion::Nextion::disable_component_touch ( const char * component )

Disable touch for a component.

Parameters

component The component name.

Example:

disable_component_touch("button");

esphome::nextion::Nextion::disable_component_touch

void disable_component_touch(const char *component)

Disable touch for a component.

Definition nextion_commands.cpp:216

Disables touch for component named button.

Definition at line 216 of file nextion_commands.cpp.

◆ display_picture()

void esphome::nextion::Nextion::display_picture	(	uint16_t	picture_id,
		uint16_t	x_start,
		uint16_t	y_start )

Display a picture at coordinates.

Parameters

picture_id	The picture id.
x1	The x coordinate.
y1	The y coordniate.

Example:

display_picture(2, 15, 25);

esphome::nextion::Nextion::display_picture

void display_picture(uint16_t picture_id, uint16_t x_start, uint16_t y_start)

Display a picture at coordinates.

Definition nextion_commands.cpp:248

Displays the picture who has the id 2 at the x coordinates 15 and y coordinates 25.

Definition at line 248 of file nextion_commands.cpp.

◆ dump_config()

void esphome::nextion::Nextion::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 146 of file nextion.cpp.

◆ enable_component_touch()

void esphome::nextion::Nextion::enable_component_touch ( const char * component )

Enable touch for a component.

Parameters

component The component name.

Example:

enable_component_touch("button");

esphome::nextion::Nextion::enable_component_touch

void enable_component_touch(const char *component)

Enable touch for a component.

Definition nextion_commands.cpp:212

Enables touch for component named button.

Definition at line 212 of file nextion_commands.cpp.

◆ fill_area() [1/3]

void esphome::nextion::Nextion::fill_area	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	width,
		uint16_t	height,
		Color	color )

Fill a rectangle with a color.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
width	The width to draw.
height	The height to draw.
color	The color to draw with (as Color).

Example:

auto blue = Color(0, 0, 255);

fill_area(50, 50, 100, 100, blue);

esphome::nextion::Nextion::fill_area

void fill_area(uint16_t x1, uint16_t y1, uint16_t width, uint16_t height, uint16_t color)

Fill a rectangle with a color.

Definition nextion_commands.cpp:253

esphome::Color

Definition color.h:12

Fills an area that starts at x coordinate 50 and y coordinate 50 with a height of 100 and width of 100 with blue color.

Definition at line 263 of file nextion_commands.cpp.

◆ fill_area() [2/3]

void esphome::nextion::Nextion::fill_area	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	width,
		uint16_t	height,
		const char *	color )

Fill a rectangle with a color.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
width	The width to draw.
height	The height to draw.
color	The color to draw with (as a string).

Example:

fill_area(50, 50, 100, 100, "RED");

Fills an area that starts at x coordinate 50 and y coordinate 50 with a height of 100 and width of 100 with the red color. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 258 of file nextion_commands.cpp.

◆ fill_area() [3/3]

void esphome::nextion::Nextion::fill_area	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	width,
		uint16_t	height,
		uint16_t	color )

Fill a rectangle with a color.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
width	The width to draw.
height	The height to draw.
color	The color to draw with (number).

Example:

fill_area(50, 50, 100, 100, 63488);

Fills an area that starts at x coordinate 50 and y coordinate 50 with a height of 100 and width of 100 with the red color. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 253 of file nextion_commands.cpp.

◆ filled_circle() [1/3]

void esphome::nextion::Nextion::filled_circle	(	uint16_t	center_x,
		uint16_t	center_y,
		uint16_t	radius,
		Color	color )

Draw a filled circled.

Parameters

center_x	The center x coordinate.
center_y	The center y coordinate.
radius	The circle radius.
color	The color to draw with (as Color).

Example:

auto blue = Color(0, 0, 255);

it.filled_cricle(25, 25, 10, blue);

Makes a filled circle at the x coordinate 25 and y coordinate 25 with a radius of 10 with blue color.

Definition at line 327 of file nextion_commands.cpp.

◆ filled_circle() [2/3]

void esphome::nextion::Nextion::filled_circle	(	uint16_t	center_x,
		uint16_t	center_y,
		uint16_t	radius,
		const char *	color )

Draw a filled circled.

Parameters

center_x	The center x coordinate.
center_y	The center y coordinate.
radius	The circle radius.
color	The color to draw with (as a string).

Example:

it.filled_cricle(25, 25, 10, "BLUE");

Makes a filled circle at the x coordinate 25 and y coordinate 25 with a radius of 10 with the blue color. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 322 of file nextion_commands.cpp.

◆ filled_circle() [3/3]

void esphome::nextion::Nextion::filled_circle	(	uint16_t	center_x,
		uint16_t	center_y,
		uint16_t	radius,
		uint16_t	color )

Draw a filled circled.

Parameters

center_x	The center x coordinate.
center_y	The center y coordinate.
radius	The circle radius.
color	The color to draw with (number).

Example:

it.filled_cricle(25, 25, 10, 63488);

Makes a filled circle at the x coordinate 25 and y coordinate 25 with a radius of 10 with the red color. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 317 of file nextion_commands.cpp.

◆ get_free_heap_()

uint32_t esphome::nextion::Nextion::get_free_heap_ ( )

inlineprotected

Returns the ESP Free Heap memory.

This is framework independent.

Returns: Free Heap in bytes.

Definition at line 24 of file nextion_upload_arduino.cpp.

◆ get_max_commands_per_loop()

uint16_t esphome::nextion::Nextion::get_max_commands_per_loop ( ) const

inline

Get the current maximum number of commands allowed per loop iteration.

Returns: Configured command limit per loop

Definition at line 92 of file nextion.h.

◆ get_max_queue_size()

size_t esphome::nextion::Nextion::get_max_queue_size ( ) const

inline

Get the maximum allowed queue size.

Returns: Current limit (0 = unlimited)

Definition at line 105 of file nextion.h.

◆ get_setup_priority()

float esphome::nextion::Nextion::get_setup_priority ( ) const

overridevirtual

Reimplemented from esphome::Component.

Definition at line 194 of file nextion.cpp.

◆ get_wifi_client_()

WiFiClient * esphome::nextion::Nextion::get_wifi_client_ ( )

protected

Definition at line 339 of file nextion_upload_arduino.cpp.

◆ goto_page() [1/2]

void esphome::nextion::Nextion::goto_page ( const char * page )

Show the page with a given name.

Parameters

page	The name of the page.

Example:

it.goto_page("main");

Switches to the page named main. Pages are named in the Nextion Editor.

Definition at line 183 of file nextion_commands.cpp.

◆ goto_page() [2/2]

void esphome::nextion::Nextion::goto_page ( uint8_t page )

Show the page with a given id.

Parameters

page	The id of the page.

Example:

it.goto_page(2);

Switches to the page named main. Pages are named in the Nextion Editor.

Definition at line 184 of file nextion_commands.cpp.

◆ hide_component()

void esphome::nextion::Nextion::hide_component ( const char * component )

overridevirtual

Hide a component.

Parameters

component The component name.

Example:

hide_component("button");

esphome::nextion::Nextion::hide_component

void hide_component(const char *component) override

Hide a component.

Definition nextion_commands.cpp:204

Hides the component named button.

Implements esphome::nextion::NextionBase.

Definition at line 204 of file nextion_commands.cpp.

◆ is_connected()

bool esphome::nextion::Nextion::is_connected ( )

inline

Check if the Nextion display is successfully connected.

This method returns whether a successful connection has been established with the Nextion display. A connection is considered established when:

The initial handshake with the display is completed successfully, or
The handshake is skipped via USE_NEXTION_CONFIG_SKIP_CONNECTION_HANDSHAKE flag

The connection status is particularly useful when:

Troubleshooting communication issues
Ensuring the display is ready before sending commands
Implementing connection-dependent behaviors

Returns: true if the Nextion display is connected and ready to receive commands; false if the display is not yet connected or connection was lost

Definition at line 1297 of file nextion.h.

◆ is_updating()

bool esphome::nextion::Nextion::is_updating ( )

overridevirtual

Check if the TFT update process is currently running.

This method provides a way to determine if the Nextion display is in the process of updating its TFT firmware. When a TFT update is in progress, certain operations or commands may be restricted or could interfere with the update process. By checking the state of the update process, the system can make informed decisions about performing actions that involve communication with the Nextion display.

Returns: true if the TFT update process is active, indicating that the Nextion display is currently updating its firmware. This implies that caution should be taken with commands sent to the display to avoid interrupting the update process.; false if the TFT update process is not active, indicating that the Nextion display is not currently updating its firmware and is in a normal operational state, ready to receive and process commands as usual.

Reimplemented from esphome::nextion::NextionBase.

Definition at line 1297 of file nextion.cpp.

◆ line() [1/3]

void esphome::nextion::Nextion::line	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	x2,
		uint16_t	y2,
		Color	color )

Draw a line on the screen.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
x2	The ending x coordinate.
y2	The ending y coordinate.
color	The color to draw with (as Color).

Example:

auto blue = Color(0, 0, 255);

it.line(50, 50, 75, 75, blue);

Makes a line that starts at x coordinate 50 and y coordinate 50 and ends at x coordinate 75 and y coordinate 75 with blue color.

Definition at line 279 of file nextion_commands.cpp.

◆ line() [2/3]

void esphome::nextion::Nextion::line	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	x2,
		uint16_t	y2,
		const char *	color )

Draw a line on the screen.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
x2	The ending x coordinate.
y2	The ending y coordinate.
color	The color to draw with (as a string).

Example:

it.line(50, 50, 75, 75, "BLUE");

Makes a line that starts at x coordinate 50 and y coordinate 50 and ends at x coordinate 75 and y coordinate 75 with the blue color. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 274 of file nextion_commands.cpp.

◆ line() [3/3]

void esphome::nextion::Nextion::line	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	x2,
		uint16_t	y2,
		uint16_t	color )

Draw a line on the screen.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
x2	The ending x coordinate.
y2	The ending y coordinate.
color	The color to draw with (number).

Example:

it.line(50, 50, 75, 75, 63488);

Makes a line that starts at x coordinate 50 and y coordinate 50 and ends at x coordinate 75 and y coordinate 75 with the red color. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 269 of file nextion_commands.cpp.

◆ loop()

void esphome::nextion::Nextion::loop ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 298 of file nextion.cpp.

◆ open_waveform_channel()

void esphome::nextion::Nextion::open_waveform_channel	(	uint8_t	component_id,
		uint8_t	channel_number,
		uint8_t	value )

Definition at line 237 of file nextion_commands.cpp.

◆ print_queue_members_()

void esphome::nextion::Nextion::print_queue_members_ ( )

protected

Definition at line 279 of file nextion.cpp.

◆ process_nextion_commands_()

void esphome::nextion::Nextion::process_nextion_commands_ ( )

protected

Definition at line 404 of file nextion.cpp.

◆ process_pending_in_queue_()

void esphome::nextion::Nextion::process_pending_in_queue_ ( )

protected

Process any commands in the queue that are pending due to command spacing.

This method checks if the first item in the nextion_queue_ has a pending command that was previously blocked by command spacing. If spacing now allows and a pending command exists, it attempts to send the command. Once successfully sent, the pending command is cleared and the queue item continues normal processing.

Called from loop() to retry sending commands that were delayed by spacing.

Definition at line 349 of file nextion.cpp.

◆ process_serial_()

void esphome::nextion::Nextion::process_serial_ ( )

protected

Definition at line 395 of file nextion.cpp.

◆ qrcode() [1/2]

void esphome::nextion::Nextion::qrcode	(	uint16_t	x1,
		uint16_t	y1,
		const char *	content,
		uint16_t	size,
		Color	background_color = Color(255, 255, 255),
		Color	foreground_color = Color(0, 0, 0),
		uint8_t	logo_pic = -1,
		uint8_t	border_width = 8 )

Draws a QR code in the screen.

Parameters

x1	The top left x coordinate to start the QR code.
y1	The top left y coordinate to start the QR code.
content	The content of the QR code (as a plain text - Nextion will generate the QR code).
size	The size (in pixels) for the QR code. Defaults to 200px.
background_color	The background color to draw with (as Color). Defaults to 65535 (white).
foreground_color	The foreground color to draw with (as Color). Defaults to 0 (black).
logo_pic	The picture id for the logo in the center of the QR code. Defaults to -1 (no logo).
border_width	The border width (in pixels) for the QR code. Defaults to 8px.

Example:

auto blue = Color(0, 0, 255);
auto red = Color(255, 0, 0);
it.qrcode(25, 25, "WIFI:S:MySSID;T:WPA;P:MyPassW0rd;;", 150, blue, red);

Draws a QR code with a Wi-Fi network credentials starting at the given coordinates (25,25) with size of 150px in red on a blue background.

Definition at line 339 of file nextion_commands.cpp.

◆ qrcode() [2/2]

void esphome::nextion::Nextion::qrcode	(	uint16_t	x1,
		uint16_t	y1,
		const char *	content,
		uint16_t	size = 200,
		uint16_t	background_color = 65535,
		uint16_t	foreground_color = 0,
		uint8_t	logo_pic = -1,
		uint8_t	border_width = 8 )

Draws a QR code in the screen.

Parameters

x1	The top left x coordinate to start the QR code.
y1	The top left y coordinate to start the QR code.
content	The content of the QR code (as a plain text - Nextion will generate the QR code).
size	The size (in pixels) for the QR code. Defaults to 200px.
background_color	The background color to draw with (as rgb565 integer). Defaults to 65535 (white).
foreground_color	The foreground color to draw with (as rgb565 integer). Defaults to 0 (black).
logo_pic	The picture id for the logo in the center of the QR code. Defaults to -1 (no logo).
border_width	The border width (in pixels) for the QR code. Defaults to 8px.

Example:

it.qrcode(25, 25, "WIFI:S:MySSID;T:WPA;P:MyPassW0rd;;");

Draws a QR code with a Wi-Fi network credentials starting at the given coordinates (25,25).

Definition at line 332 of file nextion_commands.cpp.

◆ queue_size()

size_t esphome::nextion::Nextion::queue_size ( )

inline

Retrieves the number of commands pending in the Nextion command queue.

This function returns the current count of commands that have been queued but not yet processed for the Nextion display. The Nextion command queue is used to store commands that are sent to the Nextion display for various operations like updating the display, changing interface elements, or other interactive features. A larger queue size might indicate a higher processing time or potential delays in command execution. This function is useful for monitoring the command flow and managing the execution efficiency of the Nextion display interface.

Returns: size_t The number of commands currently in the Nextion queue. This count includes all commands that have been added to the queue and are awaiting processing.

Definition at line 1258 of file nextion.h.

◆ rectangle() [1/3]

void esphome::nextion::Nextion::rectangle	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	width,
		uint16_t	height,
		Color	color )

Draw a rectangle outline.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
width	The width of the rectangle.
height	The height of the rectangle.
color	The color to draw with (as Color).

Example:

auto blue = Color(0, 0, 255);

it.rectangle(25, 35, 40, 50, blue);

Makes a outline of a rectangle that starts at x coordinate 25 and y coordinate 35 and has a width of 40 and a length of 50 with blue color.

Definition at line 296 of file nextion_commands.cpp.

◆ rectangle() [2/3]

void esphome::nextion::Nextion::rectangle	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	width,
		uint16_t	height,
		const char *	color )

Draw a rectangle outline.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
width	The width of the rectangle.
height	The height of the rectangle.
color	The color to draw with (as a string).

Example:

it.rectangle(25, 35, 40, 50, "BLUE");

Makes a outline of a rectangle that starts at x coordinate 25 and y coordinate 35 and has a width of 40 and a length of 50 with the blue color. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 290 of file nextion_commands.cpp.

◆ rectangle() [3/3]

void esphome::nextion::Nextion::rectangle	(	uint16_t	x1,
		uint16_t	y1,
		uint16_t	width,
		uint16_t	height,
		uint16_t	color )

Draw a rectangle outline.

Parameters

x1	The starting x coordinate.
y1	The starting y coordinate.
width	The width of the rectangle.
height	The height of the rectangle.
color	The color to draw with (number).

Example:

it.rectangle(25, 35, 40, 50, 63488);

Makes a outline of a rectangle that starts at x coordinate 25 and y coordinate 35 and has a width of 40 and a length of 50 with the red color. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 284 of file nextion_commands.cpp.

◆ recv_ret_string_()

uint16_t esphome::nextion::Nextion::recv_ret_string_	(	std::string &	response,
		uint32_t	timeout,
		bool	recv_flag )

protected

Definition at line 974 of file nextion.cpp.

◆ register_binarysensor_component()

void esphome::nextion::Nextion::register_binarysensor_component ( NextionComponentBase * obj )

inline

Definition at line 1032 of file nextion.h.

◆ register_sensor_component()

void esphome::nextion::Nextion::register_sensor_component ( NextionComponentBase * obj )

inline

Definition at line 1033 of file nextion.h.

◆ register_switch_component()

void esphome::nextion::Nextion::register_switch_component ( NextionComponentBase * obj )

inline

Definition at line 1031 of file nextion.h.

◆ register_textsensor_component()

void esphome::nextion::Nextion::register_textsensor_component ( NextionComponentBase * obj )

inline

Definition at line 1034 of file nextion.h.

◆ register_touch_component()

void esphome::nextion::Nextion::register_touch_component ( NextionComponentBase * obj )

inline

Definition at line 1030 of file nextion.h.

◆ remove_from_q_()

bool esphome::nextion::Nextion::remove_from_q_ ( bool report_empty = true )

protected

Definition at line 366 of file nextion.cpp.

◆ remove_front_no_sensors_()

void esphome::nextion::Nextion::remove_front_no_sensors_ ( )

protected

◆ reset_()

void esphome::nextion::Nextion::reset_ ( bool reset_nextion = true )

protected

Definition at line 136 of file nextion.cpp.

◆ send_command()

bool esphome::nextion::Nextion::send_command ( const char * command )

Manually send a raw command to the display.

Parameters

command The pcommand, like "page 0"

Returns: Whether the send was successful.

Definition at line 246 of file nextion.cpp.

◆ send_command_()

bool esphome::nextion::Nextion::send_command_ ( const std::string & command )

protected

Manually send a raw command to the display and don't wait for an acknowledgement packet.

Parameters

command The command to write, for example "vis b0,0".

Definition at line 26 of file nextion.cpp.

◆ send_command_printf()

bool esphome::nextion::Nextion::send_command_printf	(	const char *	format,
			... )

Manually send a raw formatted command to the display.

Parameters

format	The printf-style command format, like "vis %s,0"
...	The format arguments

Returns: Whether the send was successful.

Definition at line 257 of file nextion.cpp.

◆ set_auto_wake_on_touch()

void esphome::nextion::Nextion::set_auto_wake_on_touch ( bool auto_wake_on_touch )

Sets if Nextion should auto-wake from sleep when touch press occurs.

Parameters

auto_wake_on_touch True or false. When auto_wake is true and Nextion is in sleep mode, the first touch will only trigger the auto wake mode and not trigger a Touch Event.

Example:

it.set_auto_wake_on_touch(true);

The display will wake up by touch.

Definition at line 194 of file nextion_commands.cpp.

◆ set_backlight_brightness()

void esphome::nextion::Nextion::set_backlight_brightness ( float brightness )

Set the brightness of the backlight.

Parameters

brightness The brightness percentage from 0 to 1.0.

Example:

it.set_backlight_brightness(.3);

Changes the brightness of the display to 30%.

Definition at line 186 of file nextion_commands.cpp.

◆ set_brightness()

void esphome::nextion::Nextion::set_brightness ( float brightness )

inline

Definition at line 1037 of file nextion.h.

◆ set_command_spacing()

void esphome::nextion::Nextion::set_command_spacing ( uint32_t spacing_ms )

inline

Set the command spacing for the display.

Parameters

spacing_ms Time in milliseconds between commands

Definition at line 113 of file nextion.h.

◆ set_component_aph()

void esphome::nextion::Nextion::set_component_aph	(	const char *	component,
		uint8_t	aph )

Set the opaqueness (fading) of a component.

Parameters

component	The component name.
aph	An integer between 0 and 127 related to the opaqueness/fading level.

Example:

it.set_component_aph("textview", 64);

This will set the opaqueness level of the component textview to 64.

Note: Requires Nextion Intelligent series display.

Definition at line 163 of file nextion_commands.cpp.

◆ set_component_background_color() [1/3]

void esphome::nextion::Nextion::set_component_background_color	(	const char *	component,
		Color	color )

overridevirtual

Set the background color of a component.

Parameters

component	The component name.
color	The color (as Color).

Example:

auto blue = Color(0, 0, 255);

it.set_component_background_color("button", blue);

This will change the background color of the component button to blue.

Implements esphome::nextion::NextionBase.

Definition at line 68 of file nextion_commands.cpp.

◆ set_component_background_color() [2/3]

void esphome::nextion::Nextion::set_component_background_color	(	const char *	component,
		const char *	color )

Set the background color of a component.

Parameters

component	The component name.
color	The color (as a string).

Example:

it.set_component_background_color("button", "RED");

This will change the background color of the component button to red. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 64 of file nextion_commands.cpp.

◆ set_component_background_color() [3/3]

void esphome::nextion::Nextion::set_component_background_color	(	const char *	component,
		uint16_t	color )

Set the background color of a component.

Parameters

component	The component name.
color	The color (as a uint16_t).

Example:

it.set_component_background_color("button", 63488);

This will change the background color of the component button to red. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 60 of file nextion_commands.cpp.

◆ set_component_coordinates()

void esphome::nextion::Nextion::set_component_coordinates	(	const char *	component,
		uint16_t	x,
		uint16_t	y )

Set the coordinates of a component on screen.

Parameters

component	The component name.
x	The x coordinate.
y	The y coordinate.

Example:

it.set_component_coordinates("pic", 55, 100);

This will move the position of the component pic to the x coordinate 55 and y coordinate 100.

Definition at line 242 of file nextion_commands.cpp.

◆ set_component_drag()

void esphome::nextion::Nextion::set_component_drag	(	const char *	component,
		bool	drag )

Set the drag availability of a component.

Parameters

component	The component name.
drag	False: Drag not available, True: Drag available.

Example:

it.set_component_drag("textview", true);

This will enable drag to the component textview.

Note: Requires Nextion Intelligent series display.

Definition at line 159 of file nextion_commands.cpp.

◆ set_component_font()

void esphome::nextion::Nextion::set_component_font	(	const char *	component,
		uint8_t	font_id )

overridevirtual

Set the font id for a component.

Parameters

component	The component name.
font_id	The ID of the font (number).

Example:

it.set_component_font("textview", "3");

Changes the font of the component named textveiw. Font IDs are set in the Nextion Editor.

Implements esphome::nextion::NextionBase.

Definition at line 200 of file nextion_commands.cpp.

◆ set_component_font_color() [1/3]

void esphome::nextion::Nextion::set_component_font_color	(	const char *	component,
		Color	color )

overridevirtual

Set the font color of a component.

Parameters

component	The component name.
color	The color (as Color).

Example:

it.set_component_font_color("textview", Color::BLACK);

esphome::Color::BLACK

static const Color BLACK

Definition color.h:173

This will change the font color of the component textview to black.

Implements esphome::nextion::NextionBase.

Definition at line 126 of file nextion_commands.cpp.

◆ set_component_font_color() [2/3]

void esphome::nextion::Nextion::set_component_font_color	(	const char *	component,
		const char *	color )

Set the font color of a component.

Parameters

component	The component name.
color	The color (as a string).

Example:

it.set_component_font_color("textview", "RED");

This will change the font color of the component textview to a red color. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 122 of file nextion_commands.cpp.

◆ set_component_font_color() [3/3]

void esphome::nextion::Nextion::set_component_font_color	(	const char *	component,
		uint16_t	color )

Set the font color of a component.

Parameters

component	The component name.
color	The color (as a uint16_t).

Example:

it.set_component_font_color("textview", 63488);

This will change the font color of the component textview to a red color. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 118 of file nextion_commands.cpp.

◆ set_component_foreground_color() [1/3]

void esphome::nextion::Nextion::set_component_foreground_color	(	const char *	component,
		Color	color )

overridevirtual

Set the foreground color of a component.

Parameters

component	The component name.
color	The color (as Color).

Example:

it.set_component_foreground_color("button", Color::BLACK);

This will change the foreground color of the component button to black.

Implements esphome::nextion::NextionBase.

Definition at line 97 of file nextion_commands.cpp.

◆ set_component_foreground_color() [2/3]

void esphome::nextion::Nextion::set_component_foreground_color	(	const char *	component,
		const char *	color )

Set the foreground color of a component.

Parameters

component	The component name.
color	The color (as a string).

Example:

it.set_component_foreground_color("button", "RED");

This will change the foreground color of the component button to red. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 93 of file nextion_commands.cpp.

◆ set_component_foreground_color() [3/3]

void esphome::nextion::Nextion::set_component_foreground_color	(	const char *	component,
		uint16_t	color )

Set the foreground color of a component.

Parameters

component	The component name.
color	The color (as a uint16_t).

Example:

it.set_component_foreground_color("button", 63488);

This will change the foreground color of the component button to red. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 89 of file nextion_commands.cpp.

◆ set_component_pic()

void esphome::nextion::Nextion::set_component_pic	(	const char *	component,
		uint8_t	pic_id )

Set the picture id of a component.

Parameters

component	The component name.
pic_id	The picture ID.

Example:

it.set_component_pic("textview", 1);

This will change the picture id of the component textview.

Definition at line 146 of file nextion_commands.cpp.

◆ set_component_picc()

void esphome::nextion::Nextion::set_component_picc	(	const char *	component,
		uint8_t	pic_id )

Set the background picture id of component.

Parameters

component	The component name.
pic_id	The picture ID.

Example:

it.set_component_picc("textview", 1);

This will change the background picture id of the component textview.

Definition at line 150 of file nextion_commands.cpp.

◆ set_component_picture()

void esphome::nextion::Nextion::set_component_picture	(	const char *	component,
		uint8_t	picture_id )

Set the picture of an image component.

Parameters

component	The component name.
value	The picture id.

Example:

it.set_component_picture("pic", 4);

This will change the image of the component pic to the image with ID 4.

Definition at line 220 of file nextion_commands.cpp.

◆ set_component_position()

void esphome::nextion::Nextion::set_component_position	(	const char *	component,
		uint32_t	x,
		uint32_t	y )

Set the position of a component.

Parameters

component	The component name.
x	The new X (horizontal) coordinate for the component.
y	The new Y (vertical) coordinate for the component.

Example:

it.set_component_aph("textview", 64, 35);

This will move the component textview to the column 64 of row 35 of the display.

Note: Requires Nextion Intelligent series display.

Definition at line 167 of file nextion_commands.cpp.

◆ set_component_pressed_background_color() [1/3]

void esphome::nextion::Nextion::set_component_pressed_background_color	(	const char *	component,
		Color	color )

overridevirtual

Set the pressed background color of a component.

Parameters

component	The component name.
color	The color (as Color).

Example:

auto red = Color(255, 0, 0);

it.set_component_pressed_background_color("button", red);

This will change the pressed background color of the component button to red. This is the background color that is shown when the component is pressed.

Implements esphome::nextion::NextionBase.

Definition at line 83 of file nextion_commands.cpp.

◆ set_component_pressed_background_color() [2/3]

void esphome::nextion::Nextion::set_component_pressed_background_color	(	const char *	component,
		const char *	color )

Set the pressed background color of a component.

Parameters

component	The component name.
color	The color (as a string).

Example:

it.set_component_pressed_background_color("button", "RED");

This will change the pressed background color of the component button to red. This is the background color that is shown when the component is pressed. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 79 of file nextion_commands.cpp.

◆ set_component_pressed_background_color() [3/3]

void esphome::nextion::Nextion::set_component_pressed_background_color	(	const char *	component,
		uint16_t	color )

Set the pressed background color of a component.

Parameters

component	The component name.
color	The color (as a uint16_t).

Example:

it.set_component_pressed_background_color("button", 63488);

This will change the pressed background color of the component button to red. This is the background color that is shown when the component is pressed. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 74 of file nextion_commands.cpp.

◆ set_component_pressed_font_color() [1/3]

void esphome::nextion::Nextion::set_component_pressed_font_color	(	const char *	component,
		Color	color )

overridevirtual

Set the pressed font color of a component.

Parameters

component	The component name.
color	The color (as Color).

Example:

it.set_component_pressed_font_color("button", Color::BLACK);

This will change the pressed font color of the component button to black.

Implements esphome::nextion::NextionBase.

Definition at line 140 of file nextion_commands.cpp.

◆ set_component_pressed_font_color() [2/3]

void esphome::nextion::Nextion::set_component_pressed_font_color	(	const char *	component,
		const char *	color )

Set the pressed font color of a component.

Parameters

component	The component name.
color	The color (as a string).

Example:

it.set_component_pressed_font_color("button", "RED");

This will change the pressed font color of the component button to a red color. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 136 of file nextion_commands.cpp.

◆ set_component_pressed_font_color() [3/3]

void esphome::nextion::Nextion::set_component_pressed_font_color	(	const char *	component,
		uint16_t	color )

Set the pressed font color of a component.

Parameters

component	The component name.
color	The color (as a uint16_t).

Example:

it.set_component_pressed_font_color("button", 63488);

This will change the pressed font color of the component button to a red. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 132 of file nextion_commands.cpp.

◆ set_component_pressed_foreground_color() [1/3]

void esphome::nextion::Nextion::set_component_pressed_foreground_color	(	const char *	component,
		Color	color )

overridevirtual

Set the pressed foreground color of a component.

Parameters

component	The component name.
color	The color (as Color).

Example:

auto blue = Color(0, 0, 255);

it.set_component_pressed_foreground_color("button", blue);

This will change the pressed foreground color of the component button to blue. This is the foreground color that is shown when the component is pressed.

Implements esphome::nextion::NextionBase.

Definition at line 112 of file nextion_commands.cpp.

◆ set_component_pressed_foreground_color() [2/3]

void esphome::nextion::Nextion::set_component_pressed_foreground_color	(	const char *	component,
		const char *	color )

Set the pressed foreground color of a component.

Parameters

component	The component name.
color	The color (as a string).

Example:

it.set_component_pressed_foreground_color("button", "RED");

This will change the pressed foreground color of the component button to red. This is the foreground color that is shown when the component is pressed. Use Nextion Instruction Set for a list of Nextion HMI colors constants.

Definition at line 108 of file nextion_commands.cpp.

◆ set_component_pressed_foreground_color() [3/3]

void esphome::nextion::Nextion::set_component_pressed_foreground_color	(	const char *	component,
		uint16_t	color )

Set the pressed foreground color of a component.

Parameters

component	The component name.
color	The color (as a uint16_t).

Example:

it.set_component_pressed_foreground_color("button", 63488 );

This will change the pressed foreground color of the component button to red. This is the foreground color that is shown when the component is pressed. Use this color picker to convert color codes to Nextion HMI colors.

Definition at line 103 of file nextion_commands.cpp.

◆ set_component_text()

void esphome::nextion::Nextion::set_component_text	(	const char *	component,
		const char *	text )

Set the text of a component to a static string.

Parameters

component	The component name.
text	The static text to set.

Example:

it.set_component_text("textview", "Hello World!");

This will set the txt property of the component textview to Hello World.

Definition at line 224 of file nextion_commands.cpp.

◆ set_component_text_printf()

void esphome::nextion::Nextion::set_component_text_printf	(	const char *	component,
		const char *	format,
			... )

Set the text of a component to a formatted string.

Parameters

component	The component name.
format	The printf-style format string.
...	The arguments to the format.

Example:

it.set_component_text_printf("textview", "The uptime is: %.0f", id(uptime_sensor).state);

state

bool state

Definition fan.h:0

This will change the text on the component named textview to The uptime is: Then the value of uptime_sensor. with zero decimals of accuracy (whole number). For example when uptime_sensor = 506, then, The uptime is: 506 will be displayed.

Definition at line 172 of file nextion_commands.cpp.

◆ set_component_value()

void esphome::nextion::Nextion::set_component_value	(	const char *	component,
		int32_t	value )

Set the integer value of a component.

Parameters

component	The component name.
value	The value to set.

Example:

it.set_component_value("gauge", 50);

This will change the property value of the component gauge to 50.

Definition at line 228 of file nextion_commands.cpp.

◆ set_component_vid()

void esphome::nextion::Nextion::set_component_vid	(	const char *	component,
		uint8_t	vid_id )

Set the video id of a component.

Parameters

component	The component name.
vid_id	The video ID.

Example:

it.set_component_vid("textview", 1);

This will change the video id of the component textview.

Note: Requires Nextion Intelligent series display.

Definition at line 155 of file nextion_commands.cpp.

◆ set_max_commands_per_loop()

void esphome::nextion::Nextion::set_max_commands_per_loop ( uint16_t value )

inline

Set the maximum number of commands to process in each loop iteration.

Parameters

value Maximum number of commands (default: 20)

Limiting the number of commands per loop helps prevent stack overflows when a large number of commands are queued at once, especially during boot.

Definition at line 86 of file nextion.h.

◆ set_max_queue_size()

void esphome::nextion::Nextion::set_max_queue_size ( size_t size )

inline

Set the maximum allowed queue size.

Parameters

size	Max number of entries allowed in nextion_queue_

Definition at line 99 of file nextion.h.

◆ set_nextion_rtc_time()

void esphome::nextion::Nextion::set_nextion_rtc_time ( ESPTime time )

Send the current time to the nextion display.

Parameters

time	The time instance to send (get this with id(my_time).now() ).

Definition at line 347 of file nextion_commands.cpp.

◆ set_nextion_sensor_state() [1/2]

void esphome::nextion::Nextion::set_nextion_sensor_state	(	int	queue_type,
		const std::string &	name,
		float	state )

Set the nextion sensor state object.

Parameters

[in]	queue_type	Index of NextionQueueType.
[in]	name	Component/variable name.
[in]	state	State to set.

Definition at line 883 of file nextion.cpp.

◆ set_nextion_sensor_state() [2/2]

void esphome::nextion::Nextion::set_nextion_sensor_state	(	NextionQueueType	queue_type,
		const std::string &	name,
		float	state )

Definition at line 887 of file nextion.cpp.

◆ set_nextion_text_state()

void esphome::nextion::Nextion::set_nextion_text_state	(	const std::string &	name,
		const std::string &	state )

Definition at line 924 of file nextion.cpp.

◆ set_protocol_reparse_mode()

bool esphome::nextion::Nextion::set_protocol_reparse_mode ( bool active_mode )

Sets the Nextion display's protocol reparse mode.

This function toggles the Nextion display's protocol reparse mode between active and passive. In active mode, the display actively parses incoming data. In passive mode, it does not parse data unless specifically instructed to do so. This is useful for managing how the Nextion display interprets incoming commands, especially during initialization or in scenarios where precise control over command processing is needed.

Parameters

active_mode

A boolean value indicating the desired reparse mode.

true to set the display to active protocol reparse mode, where it actively parses incoming commands.
false to set the display to passive protocol reparse mode, where command parsing is done only on explicit instruction.

Returns: bool Returns true if all commands were sent successfully to the Nextion display, indicating that the mode was set as expected. Returns false if any of the commands failed to send, indicating that the desired reparse mode may not be correctly set.

Definition at line 40 of file nextion_commands.cpp.

◆ set_start_up_page()

void esphome::nextion::Nextion::set_start_up_page ( uint8_t start_up_page = 255 )

inline

Sets which page Nextion loads when connecting to ESPHome.

Parameters

start_up_page The page id, from 0 to the last page in Nextion. Set 255 (not set to any existing page) to wakes up to current page.

Example:

it.set_start_up_page(2);

The display will go to page 2 when it establishes a connection to ESPHome.

Definition at line 1228 of file nextion.h.

◆ set_tft_url()

bool void esphome::nextion::Nextion::set_tft_url ( const std::string & tft_url )

inline

Set the tft file URL.

https seems problematic with Arduino..

Definition at line 1065 of file nextion.h.

◆ set_touch_sleep_timeout()

void esphome::nextion::Nextion::set_touch_sleep_timeout ( uint16_t touch_sleep_timeout = 0 )

Set the touch sleep timeout of the display using the thsp command.

Sets internal No-touch-then-sleep timer to specified value in seconds. Nextion will auto-enter sleep mode if and when this timer expires.

Parameters

touch_sleep_timeout Timeout in seconds. Range: 3 to 65535 seconds (minimum 3 seconds, maximum ~18 hours 12 minutes 15 seconds) Use 0 to disable touch sleep timeout.

Note: Once thsp is set, it will persist until reboot or reset. The Nextion device needs to exit sleep mode to issue thsp=0 to disable sleep on no touch.; The display will only wake up by a restart or by setting up thup (auto wake on touch). See set_auto_wake_on_touch() to configure wake behavior.

Example:

// Set 30 second touch timeout
it.set_touch_sleep_timeout(30);

// Set maximum timeout (~18 hours)
it.set_touch_sleep_timeout(65535);

// Disable touch sleep timeout
it.set_touch_sleep_timeout(0);

Related Nextion instruction: thsp=<value>

See also: set_auto_wake_on_touch() Configure automatic wake on touch; sleep() Manually control sleep state

Definition at line 18 of file nextion_commands.cpp.

◆ set_wait_for_ack()

void esphome::nextion::Nextion::set_wait_for_ack ( bool wait_for_ack )

◆ set_wake_up_page()

void esphome::nextion::Nextion::set_wake_up_page ( uint8_t wake_up_page = 255 )

Sets which page Nextion loads when exiting sleep mode.

Note this can be set even when Nextion is in sleep mode.

Parameters

wake_up_page The page id, from 0 to the last page in Nextion. Set 255 (not set to any existing page) to wakes up to current page.

Example:

it.set_wake_up_page(2);

The display will wake up to page 2.

Definition at line 13 of file nextion_commands.cpp.

◆ set_writer()

void esphome::nextion::Nextion::set_writer ( const nextion_writer_t & writer )

Definition at line 1292 of file nextion.cpp.

◆ setup()

void esphome::nextion::Nextion::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 12 of file nextion.cpp.

◆ show_component()

void esphome::nextion::Nextion::show_component ( const char * component )

overridevirtual

Show a component.

Parameters

component The component name.

Example:

show_component("button");

esphome::nextion::Nextion::show_component

void show_component(const char *component) override

Show a component.

Definition nextion_commands.cpp:208

Shows the component named button.

Implements esphome::nextion::NextionBase.

Definition at line 208 of file nextion_commands.cpp.

◆ sleep()

void esphome::nextion::Nextion::sleep ( bool sleep )

Sets Nextion mode between sleep and awake.

Parameters

True	or false. Sleep=true to enter sleep mode or sleep=false to exit sleep mode.

Definition at line 29 of file nextion_commands.cpp.

◆ soft_reset()

void esphome::nextion::Nextion::soft_reset ( )

Softreset the Nextion.

Definition at line 11 of file nextion_commands.cpp.

◆ update()

void esphome::nextion::Nextion::update ( )

overridevirtual

Implements esphome::PollingComponent.

Definition at line 195 of file nextion.cpp.

◆ update_all_components()

void esphome::nextion::Nextion::update_all_components ( )

Definition at line 228 of file nextion.cpp.

◆ update_components_by_prefix()

void esphome::nextion::Nextion::update_components_by_prefix ( const std::string & prefix )

Definition at line 955 of file nextion.cpp.

◆ upload_by_chunks_() [1/2]

int esphome::nextion::Nextion::upload_by_chunks_	(	esp_http_client_handle_t	http_client,
		uint32_t &	range_start )

protected

will request 4096 bytes chunks from the web server and send each to Nextion

Parameters

esp_http_client_handle_t	http_client HTTP client handler.
int	range_start Position of next byte to transfer.

Returns: position of last byte transferred, -1 for failure.

Definition at line 22 of file nextion_upload_idf.cpp.

◆ upload_by_chunks_() [2/2]

int esphome::nextion::Nextion::upload_by_chunks_	(	HTTPClient &	http_client,
		uint32_t &	range_start )

protected

will request chunk_size chunks from the web server and send each to the nextion

Parameters

HTTPClient	http_client HTTP client handler.
int	range_start Position of next byte to transfer.

Returns: position of last byte transferred, -1 for failure.

Definition at line 32 of file nextion_upload_arduino.cpp.

◆ upload_end_()

bool esphome::nextion::Nextion::upload_end_ ( bool successful )

protected

Ends the upload process, restart Nextion and, if successful, restarts ESP.

Parameters

bool	url successful True: Transfer completed successfuly, False: Transfer failed.

Returns: bool True: Transfer completed successfuly, False: Transfer failed.

Definition at line 11 of file nextion_upload.cpp.

◆ upload_tft()

bool esphome::nextion::Nextion::upload_tft	(	uint32_t	baud_rate = 0,
		bool	exit_reparse = true )

Uploads the TFT file to the Nextion display.

This function initiates the upload of a TFT file to the Nextion display. Users can specify a target baud rate for the transfer. If the provided baud rate is not supported by Nextion, the function defaults to using the current baud rate set for the display. If no baud rate is specified (or if 0 is passed), the current baud rate is used.

Supported baud rates are: 2400, 4800, 9600, 19200, 31250, 38400, 57600, 115200, 230400, 250000, 256000, 512000 and 921600. Selecting a baud rate supported by both the Nextion display and the host hardware is essential for ensuring a successful upload process.

Parameters

baud_rate	The desired baud rate for the TFT file transfer, specified as an unsigned 32-bit integer. If the specified baud rate is not supported, or if 0 is passed, the function will use the current baud rate. The default value is 0, which implies using the current baud rate.
exit_reparse	If true, the function exits reparse mode before uploading the TFT file. This parameter defaults to true, ensuring that the display is ready to receive and apply the new TFT file without needing to manually reset or reconfigure. Exiting reparse mode is recommended for most upload scenarios to ensure the display properly processes the uploaded file command.

Returns: bool True: Transfer completed successfuly, False: Transfer failed.

Definition at line 150 of file nextion_upload_arduino.cpp.

Field Documentation

◆ auto_wake_on_touch_ [1/2]

uint8_t esphome::nextion::Nextion::auto_wake_on_touch_

Display should wake automatically on touch (default: true)

Definition at line 1342 of file nextion.h.

◆ auto_wake_on_touch_ [2/2]

bool esphome::nextion::Nextion::auto_wake_on_touch_ = true

protected

Definition at line 1353 of file nextion.h.

◆ binarysensortype_

std::vector<NextionComponentBase *> esphome::nextion::Nextion::binarysensortype_

protected

Definition at line 1449 of file nextion.h.

◆ brightness_

optional<float> esphome::nextion::Nextion::brightness_

protected

Definition at line 1458 of file nextion.h.

◆ buffer_overflow_callback_

CallbackManager<void()> esphome::nextion::Nextion::buffer_overflow_callback_ {}

protected

Definition at line 1455 of file nextion.h.

◆ command_data_

std::string esphome::nextion::Nextion::command_data_

protected

Definition at line 1474 of file nextion.h.

◆ command_pacer_

NextionCommandPacer esphome::nextion::Nextion::command_pacer_ {0}

protected

Definition at line 1308 of file nextion.h.

◆ comok_sent_

uint32_t esphome::nextion::Nextion::comok_sent_ = 0

protected

Definition at line 1327 of file nextion.h.

◆ [struct]

struct { ... } esphome::nextion::Nextion::connection_state_

Status flags for Nextion display state management.

Uses bitfields to pack multiple boolean states into a single byte, saving 5 bytes of RAM compared to individual bool variables. Zero-initialized status flags (all start as false)

◆ content_length_

uint32_t esphome::nextion::Nextion::content_length_ = 0

protected

Definition at line 1402 of file nextion.h.

◆ device_model_

std::string esphome::nextion::Nextion::device_model_

protected

Definition at line 1461 of file nextion.h.

◆ firmware_version_

std::string esphome::nextion::Nextion::firmware_version_

protected

Definition at line 1462 of file nextion.h.

◆ flash_size_

std::string esphome::nextion::Nextion::flash_size_

protected

Definition at line 1464 of file nextion.h.

◆ ignore_is_setup_

uint8_t esphome::nextion::Nextion::ignore_is_setup_

Temporarily ignore setup state for special operations.

Definition at line 1339 of file nextion.h.

◆ is_connected_

uint8_t esphome::nextion::Nextion::is_connected_

Connection established with Nextion display.

Definition at line 1337 of file nextion.h.

◆ is_updating_

uint8_t esphome::nextion::Nextion::is_updating_

TFT firmware update is currently in progress.

Definition at line 1341 of file nextion.h.

◆ max_commands_per_loop_

uint16_t esphome::nextion::Nextion::max_commands_per_loop_ {1000}

protected

Definition at line 1301 of file nextion.h.

◆ max_q_age_ms_

const uint16_t esphome::nextion::Nextion::max_q_age_ms_ = 8000

protected

Definition at line 1476 of file nextion.h.

◆ max_queue_size_

size_t esphome::nextion::Nextion::max_queue_size_ {0}

protected

Definition at line 1304 of file nextion.h.

◆ nextion_queue_

std::deque<NextionQueue *> esphome::nextion::Nextion::nextion_queue_

protected

Definition at line 1323 of file nextion.h.

◆ nextion_reports_is_setup_

uint8_t esphome::nextion::Nextion::nextion_reports_is_setup_

Nextion has reported successful initialization.

Definition at line 1340 of file nextion.h.

◆ original_baud_rate_

uint32_t esphome::nextion::Nextion::original_baud_rate_ = 0

protected

Definition at line 1404 of file nextion.h.

◆ page_callback_

CallbackManager<void(uint8_t)> esphome::nextion::Nextion::page_callback_ {}

protected

Definition at line 1453 of file nextion.h.

◆ reserved_

uint8_t esphome::nextion::Nextion::reserved_

Reserved bits for future flag additions.

Definition at line 1343 of file nextion.h.

◆ sensortype_

std::vector<NextionComponentBase *> esphome::nextion::Nextion::sensortype_

protected

Definition at line 1447 of file nextion.h.

◆ sent_setup_commands_

uint8_t esphome::nextion::Nextion::sent_setup_commands_

Initial setup commands have been sent.

Definition at line 1338 of file nextion.h.

◆ serial_number_

std::string esphome::nextion::Nextion::serial_number_

protected

Definition at line 1463 of file nextion.h.

◆ setup_callback_

CallbackManager<void()> esphome::nextion::Nextion::setup_callback_ {}

protected

Definition at line 1450 of file nextion.h.

◆ sleep_callback_

CallbackManager<void()> esphome::nextion::Nextion::sleep_callback_ {}

protected

Definition at line 1451 of file nextion.h.

◆ start_up_page_

uint8_t esphome::nextion::Nextion::start_up_page_ = 255

protected

Definition at line 1351 of file nextion.h.

◆ started_ms_

uint32_t esphome::nextion::Nextion::started_ms_ = 0

protected

Definition at line 1477 of file nextion.h.

◆ startup_override_ms_

const uint16_t esphome::nextion::Nextion::startup_override_ms_ = 8000

protected

Definition at line 1475 of file nextion.h.

◆ switchtype_

std::vector<NextionComponentBase *> esphome::nextion::Nextion::switchtype_

protected

Definition at line 1446 of file nextion.h.

◆ textsensortype_

std::vector<NextionComponentBase *> esphome::nextion::Nextion::textsensortype_

protected

Definition at line 1448 of file nextion.h.

◆ tft_size_

int esphome::nextion::Nextion::tft_size_ = 0

protected

Definition at line 1403 of file nextion.h.

◆ tft_url_

std::string esphome::nextion::Nextion::tft_url_

protected

Definition at line 1401 of file nextion.h.

◆ touch_

std::vector<NextionComponentBase *> esphome::nextion::Nextion::touch_

protected

Definition at line 1445 of file nextion.h.

◆ touch_callback_

CallbackManager<void(uint8_t, uint8_t, bool)> esphome::nextion::Nextion::touch_callback_ {}

protected

Definition at line 1454 of file nextion.h.

◆ touch_sleep_timeout_

uint16_t esphome::nextion::Nextion::touch_sleep_timeout_ = 0

protected

Definition at line 1348 of file nextion.h.

◆ upload_first_chunk_sent_

bool esphome::nextion::Nextion::upload_first_chunk_sent_ = false

protected

Definition at line 1405 of file nextion.h.

◆ wake_callback_

CallbackManager<void()> esphome::nextion::Nextion::wake_callback_ {}

protected

Definition at line 1452 of file nextion.h.

◆ wake_up_page_

uint8_t esphome::nextion::Nextion::wake_up_page_ = 255

protected

Definition at line 1349 of file nextion.h.

◆ waveform_queue_

std::deque<NextionQueue *> esphome::nextion::Nextion::waveform_queue_

protected

Definition at line 1324 of file nextion.h.

◆ wifi_client_

WiFiClient* esphome::nextion::Nextion::wifi_client_ {nullptr}

protected

Definition at line 1397 of file nextion.h.

◆ wifi_client_secure_

BearSSL::WiFiClientSecure* esphome::nextion::Nextion::wifi_client_secure_ {nullptr}

protected

Definition at line 1398 of file nextion.h.

◆ writer_

optional<nextion_writer_t> esphome::nextion::Nextion::writer_

protected

Definition at line 1457 of file nextion.h.

The documentation for this class was generated from the following files:

esphome/components/nextion/nextion.h
esphome/components/nextion/nextion.cpp
esphome/components/nextion/nextion_commands.cpp
esphome/components/nextion/nextion_upload.cpp
esphome/components/nextion/nextion_upload_arduino.cpp
esphome/components/nextion/nextion_upload_idf.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ add_addt_command_to_queue()

◆ add_buffer_overflow_event_callback()

◆ add_new_page_callback()

◆ add_no_result_to_queue_()

◆ add_no_result_to_queue_with_command_()

◆ add_no_result_to_queue_with_ignore_sleep_printf_()

◆ add_no_result_to_queue_with_pending_command_()

◆ add_no_result_to_queue_with_printf_()

◆ add_no_result_to_queue_with_set() [1/4]

◆ add_no_result_to_queue_with_set() [2/4]

◆ add_no_result_to_queue_with_set() [3/4]

◆ add_no_result_to_queue_with_set() [4/4]

◆ add_no_result_to_queue_with_set_internal_() [1/2]

◆ add_no_result_to_queue_with_set_internal_() [2/2]

◆ add_setup_state_callback()

◆ add_sleep_state_callback()

◆ add_to_get_queue()

◆ add_touch_event_callback()

◆ add_wake_state_callback()

◆ add_waveform_data()

◆ all_components_send_state_()

◆ check_connect_()

◆ check_pending_waveform_()

◆ circle() [1/3]

◆ circle() [2/3]

◆ circle() [3/3]

◆ disable_component_touch()

◆ display_picture()

◆ dump_config()

◆ enable_component_touch()

◆ fill_area() [1/3]

◆ fill_area() [2/3]

◆ fill_area() [3/3]

◆ filled_circle() [1/3]

◆ filled_circle() [2/3]

◆ filled_circle() [3/3]

◆ get_free_heap_()

◆ get_max_commands_per_loop()

◆ get_max_queue_size()

◆ get_setup_priority()

◆ get_wifi_client_()

◆ goto_page() [1/2]

◆ goto_page() [2/2]

◆ hide_component()

◆ is_connected()

◆ is_updating()

◆ line() [1/3]

◆ line() [2/3]

◆ line() [3/3]

◆ loop()

◆ open_waveform_channel()

◆ print_queue_members_()

◆ process_nextion_commands_()

◆ process_pending_in_queue_()

◆ process_serial_()

◆ qrcode() [1/2]

◆ qrcode() [2/2]

◆ queue_size()

◆ rectangle() [1/3]

◆ rectangle() [2/3]

◆ rectangle() [3/3]

◆ recv_ret_string_()

◆ register_binarysensor_component()

◆ register_sensor_component()

◆ register_switch_component()

◆ register_textsensor_component()

◆ register_touch_component()

◆ remove_from_q_()

◆ remove_front_no_sensors_()

◆ reset_()

◆ send_command()

◆ send_command_()

◆ send_command_printf()

◆ set_auto_wake_on_touch()

◆ set_backlight_brightness()
