#include <rc522_i2c.h>

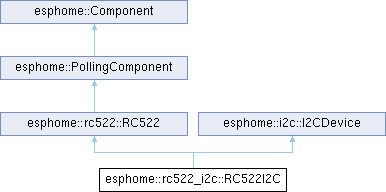

Inheritance diagram for esphome::rc522_i2c::RC522I2C:

Public Member Functions
void	dump_config () override

Public Member Functions inherited from esphome::rc522::RC522
void	setup () override

void	update () override

float	get_setup_priority () const override

void	loop () override

void	register_tag (RC522BinarySensor *tag)

void	register_ontag_trigger (RC522Trigger *trig)

void	register_ontagremoved_trigger (RC522Trigger *trig)

void	set_reset_pin (GPIOPin *reset)

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

uint32_t	get_component_state () const

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message="unspecified")

void	status_set_error (const char *message="unspecified")

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Public Member Functions inherited from esphome::i2c::I2CDevice
	I2CDevice ()=default
	we use the C++ default constructor

void	set_i2c_address (uint8_t address)
	We store the address of the device on the bus.

uint8_t	get_i2c_address () const
	Returns the I2C address of the object.

void	set_i2c_bus (I2CBus *bus)
	we store the pointer to the I2CBus to use

I2CRegister	reg (uint8_t a_register)
	calls the I2CRegister constructor

I2CRegister16	reg16 (uint16_t a_register)
	calls the I2CRegister16 constructor

ErrorCode	read (uint8_t *data, size_t len)
	reads an array of bytes from the device using an I2CBus

ErrorCode	read_register (uint8_t a_register, uint8_t *data, size_t len, bool stop=true)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	read_register16 (uint16_t a_register, uint8_t *data, size_t len, bool stop=true)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	write (const uint8_t *data, size_t len, bool stop=true)
	writes an array of bytes to a device using an I2CBus

ErrorCode	write_register (uint8_t a_register, const uint8_t *data, size_t len, bool stop=true)
	writes an array of bytes to a specific register in the I²C device

ErrorCode	write_register16 (uint16_t a_register, const uint8_t *data, size_t len, bool stop=true)
	write an array of bytes to a specific register in the I²C device

bool	read_bytes (uint8_t a_register, uint8_t *data, uint8_t len)
	Compat APIs All methods below have been added for compatibility reasons.

bool	read_bytes_raw (uint8_t *data, uint8_t len)

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes (uint8_t a_register)

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes_raw ()

bool	read_bytes_16 (uint8_t a_register, uint16_t *data, uint8_t len)

bool	read_byte (uint8_t a_register, uint8_t *data, bool stop=true)

optional< uint8_t >	read_byte (uint8_t a_register)

bool	read_byte_16 (uint8_t a_register, uint16_t *data)

bool	write_bytes (uint8_t a_register, const uint8_t *data, uint8_t len, bool stop=true)

bool	write_bytes (uint8_t a_register, const std::vector< uint8_t > &data)

template<size_t N>
bool	write_bytes (uint8_t a_register, const std::array< uint8_t, N > &data)

bool	write_bytes_16 (uint8_t a_register, const uint16_t *data, uint8_t len)

bool	write_byte (uint8_t a_register, uint8_t data, bool stop=true)

bool	write_byte_16 (uint8_t a_register, uint16_t data)

Protected Member Functions
uint8_t	pcd_read_register (PcdRegister reg) override
	Reads a uint8_t from the specified register in the MFRC522 chip.

void	pcd_read_register (PcdRegister reg, uint8_t count, uint8_t *values, uint8_t rx_align) override
	Reads a number of uint8_ts from the specified register in the MFRC522 chip.

void	pcd_write_register (PcdRegister reg, uint8_t value) override

void	pcd_write_register (PcdRegister reg, uint8_t count, uint8_t *values) override
	Writes a number of uint8_ts to the specified register in the MFRC522 chip.

Protected Member Functions inherited from esphome::rc522::RC522
void	pcd_reset_ ()
	Performs a soft reset on the MFRC522 chip and waits for it to be ready again.

void	initialize_ ()

void	pcd_antenna_on_ ()
	Turns the antenna on by enabling pins TX1 and TX2.

void	pcd_antenna_off_ ()
	Turns the antenna off by disabling pins TX1 and TX2.

void	pcd_set_register_bit_mask_ (PcdRegister reg, uint8_t mask)
	Sets the bits given in mask in register reg.

void	pcd_clear_register_bit_mask_ (PcdRegister reg, uint8_t mask)
	Clears the bits given in mask from register reg.

void	pcd_transceive_data_ (uint8_t send_len)
	Transfers data to the MFRC522 FIFO, executes a command, waits for completion and transfers data back from the FIFO.

void	pcd_calculate_crc_ (uint8_t *data, uint8_t length)
	Use the CRC coprocessor in the MFRC522 to calculate a CRC_A.

StatusCode	await_transceive_ ()

StatusCode	await_crc_ ()

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_dump_config ()

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Additional Inherited Members
Protected Types inherited from esphome::rc522::RC522
enum	StatusCode : uint8_t { STATUS_OK , STATUS_WAITING , STATUS_ERROR , STATUS_COLLISION , STATUS_TIMEOUT , STATUS_NO_ROOM , STATUS_INTERNAL_ERROR , STATUS_INVALID , STATUS_CRC_WRONG , STATUS_MIFARE_NACK = 0xff }

enum	State { STATE_NONE = 0 , STATE_SETUP , STATE_INIT , STATE_PICC_REQUEST_A , STATE_READ_SERIAL , STATE_SELECT_SERIAL , STATE_SELECT_SERIAL_DONE , STATE_READ_SERIAL_DONE , STATE_DONE }

enum	PcdRegister : uint8_t { COMMAND_REG = 0x01 << 1 , COM_I_EN_REG = 0x02 << 1 , DIV_I_EN_REG = 0x03 << 1 , COM_IRQ_REG = 0x04 << 1 , DIV_IRQ_REG = 0x05 << 1 , ERROR_REG = 0x06 << 1 , STATUS1_REG = 0x07 << 1 , STATUS2_REG = 0x08 << 1 , FIFO_DATA_REG = 0x09 << 1 , FIFO_LEVEL_REG = 0x0A << 1 , WATER_LEVEL_REG = 0x0B << 1 , CONTROL_REG = 0x0C << 1 , BIT_FRAMING_REG = 0x0D << 1 , COLL_REG = 0x0E << 1 , MODE_REG = 0x11 << 1 , TX_MODE_REG = 0x12 << 1 , RX_MODE_REG = 0x13 << 1 , TX_CONTROL_REG = 0x14 << 1 , TX_ASK_REG = 0x15 << 1 , TX_SEL_REG = 0x16 << 1 , RX_SEL_REG = 0x17 << 1 , RX_THRESHOLD_REG = 0x18 << 1 , DEMOD_REG = 0x19 << 1 , MF_TX_REG = 0x1C << 1 , MF_RX_REG = 0x1D << 1 , SERIAL_SPEED_REG = 0x1F << 1 , CRC_RESULT_REG_H = 0x21 << 1 , CRC_RESULT_REG_L = 0x22 << 1 , MOD_WIDTH_REG = 0x24 << 1 , RF_CFG_REG = 0x26 << 1 , GS_N_REG = 0x27 << 1 , CW_GS_P_REG = 0x28 << 1 , MOD_GS_P_REG = 0x29 << 1 , T_MODE_REG = 0x2A << 1 , T_PRESCALER_REG = 0x2B << 1 , T_RELOAD_REG_H = 0x2C << 1 , T_RELOAD_REG_L = 0x2D << 1 , T_COUNTER_VALUE_REG_H = 0x2E << 1 , T_COUNTER_VALUE_REG_L = 0x2F << 1 , TEST_SEL1_REG = 0x31 << 1 , TEST_SEL2_REG = 0x32 << 1 , TEST_PIN_EN_REG = 0x33 << 1 , TEST_PIN_VALUE_REG = 0x34 << 1 , TEST_BUS_REG = 0x35 << 1 , AUTO_TEST_REG = 0x36 << 1 , VERSION_REG = 0x37 << 1 , ANALOG_TEST_REG = 0x38 << 1 , TEST_DA_C1_REG = 0x39 << 1 , TEST_DA_C2_REG = 0x3A << 1 , TEST_ADC_REG = 0x3B << 1 }

enum	PcdCommand : uint8_t { PCD_IDLE = 0x00 , PCD_MEM = 0x01 , PCD_GENERATE_RANDOM_ID = 0x02 , PCD_CALC_CRC = 0x03 , PCD_TRANSMIT = 0x04 , PCD_NO_CMD_CHANGE = 0x07 , PCD_RECEIVE = 0x08 , PCD_TRANSCEIVE , PCD_MF_AUTHENT = 0x0E , PCD_SOFT_RESET = 0x0F }

enum	PiccCommand : uint8_t { PICC_CMD_REQA = 0x26 , PICC_CMD_WUPA = 0x52 , PICC_CMD_CT = 0x88 , PICC_CMD_SEL_CL1 = 0x93 , PICC_CMD_SEL_CL2 = 0x95 , PICC_CMD_SEL_CL3 = 0x97 , PICC_CMD_HLTA = 0x50 , PICC_CMD_RATS = 0xE0 , PICC_CMD_MF_AUTH_KEY_A = 0x60 , PICC_CMD_MF_AUTH_KEY_B = 0x61 , PICC_CMD_MF_READ , PICC_CMD_MF_WRITE = 0xA0 , PICC_CMD_MF_DECREMENT , PICC_CMD_MF_INCREMENT , PICC_CMD_MF_RESTORE = 0xC2 , PICC_CMD_MF_TRANSFER = 0xB0 , PICC_CMD_UL_WRITE = 0xA2 }

enum	RC522Error { NONE = 0 , RESET_FAILED }

Protected Attributes inherited from esphome::rc522::RC522
enum esphome::rc522::RC522::State	STATE_NONE

bool	awaiting_comm_

uint32_t	awaiting_comm_time_

uint8_t	buffer_ [9]
	buffer for communication, the first bits [0..back_idx-1] are for tx , [back_idx..back_idx+back_len] for rx

uint8_t	send_len_

uint8_t	back_length_
	In: Max number of uint8_ts to write to *backData. Out: The number of uint8_ts returned.

uint8_t	uid_buffer_ [10]

uint8_t	uid_idx_ = 0

uint8_t	error_counter_ = 0

uint8_t	rx_align_

uint8_t *	valid_bits_

GPIOPin *	reset_pin_ {nullptr}

uint8_t	reset_count_ {0}

uint32_t	reset_timeout_ {0}

std::vector< RC522BinarySensor * >	binary_sensors_

std::vector< RC522Trigger * >	triggers_ontag_

std::vector< RC522Trigger * >	triggers_ontagremoved_

std::vector< uint8_t >	current_uid_

enum esphome::rc522::RC522::RC522Error	NONE

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
uint32_t	component_state_ {0x0000}
	State of this component.

float	setup_priority_override_ {NAN}

const char *	component_source_ {nullptr}

uint32_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}

std::string	error_message_ {}

Protected Attributes inherited from esphome::i2c::I2CDevice
uint8_t	address_ {0x00}
	store the address of the device on the bus

I2CBus *	bus_ {nullptr}
	pointer to I2CBus instance

Detailed Description

Definition at line 10 of file rc522_i2c.h.

Member Function Documentation

◆ dump_config()

void esphome::rc522_i2c::RC522I2C::dump_config ( )

overridevirtual

Reimplemented from esphome::rc522::RC522.

Definition at line 9 of file rc522_i2c.cpp.

◆ pcd_read_register() [1/2]

uint8_t esphome::rc522_i2c::RC522I2C::pcd_read_register ( PcdRegister reg )

overrideprotectedvirtual

Reads a uint8_t from the specified register in the MFRC522 chip.

The interface is described in the datasheet section 8.1.2.

Parameters

reg	The register to read from. One of the PCD_Register enums.

Implements esphome::rc522::RC522.

Definition at line 18 of file rc522_i2c.cpp.

◆ pcd_read_register() [2/2]

void esphome::rc522_i2c::RC522I2C::pcd_read_register	(	PcdRegister	reg,
		uint8_t	count,
		uint8_t *	values,
		uint8_t	rx_align )

overrideprotectedvirtual

Reads a number of uint8_ts from the specified register in the MFRC522 chip.

The interface is described in the datasheet section 8.1.2.

Parameters

reg	The register to read from. One of the PCD_Register enums.
count	The number of uint8_ts to read
values	uint8_t array to store the values in.
rx_align	Only bit positions rxAlign..7 in values[0] are updated.

Implements esphome::rc522::RC522.

Definition at line 31 of file rc522_i2c.cpp.

◆ pcd_write_register() [1/2]

void esphome::rc522_i2c::RC522I2C::pcd_write_register	(	PcdRegister	reg,
		uint8_t	count,
		uint8_t *	values )

overrideprotectedvirtual

Writes a number of uint8_ts to the specified register in the MFRC522 chip.

The interface is described in the datasheet section 8.1.2.

Parameters

reg	The register to write to. One of the PCD_Register enums.
count	The number of uint8_ts to write to the register
values	The values to write. uint8_t array.

Implements esphome::rc522::RC522.

Definition at line 62 of file rc522_i2c.cpp.

◆ pcd_write_register() [2/2]

void esphome::rc522_i2c::RC522I2C::pcd_write_register	(	PcdRegister	reg,
		uint8_t	value )

overrideprotectedvirtual

Parameters

reg	The register to write to. One of the PCD_Register enums.
value	The value to write.

Implements esphome::rc522::RC522.

Definition at line 52 of file rc522_i2c.cpp.

The documentation for this class was generated from the following files:

esphome/components/rc522_i2c/rc522_i2c.h
esphome/components/rc522_i2c/rc522_i2c.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ dump_config()

◆ pcd_read_register() [1/2]

◆ pcd_read_register() [2/2]

◆ pcd_write_register() [1/2]

◆ pcd_write_register() [2/2]
