esphome::sensor::SlidingWindowFilter Class Reference

Base class for filters that use a sliding window of values. More...

#include <filter.h>

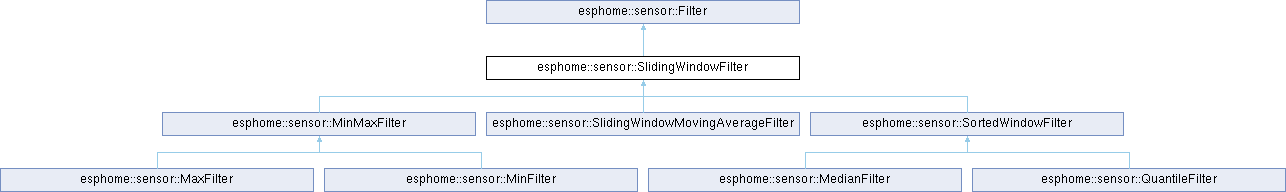

Inheritance diagram for esphome::sensor::SlidingWindowFilter:

Public Member Functions
	SlidingWindowFilter (size_t window_size, size_t send_every, size_t send_first_at)
optional< float >	new_value (float value) final
Public Member Functions inherited from esphome::sensor::Filter
virtual void	initialize (Sensor *parent, Filter *next)
	Initialize this filter, please note this can be called more than once.
void	input (float value)
void	output (float value)

Protected Member Functions
virtual float	compute_result ()=0
	Called by new_value() to compute the filtered result from the current window.

Protected Attributes
FixedVector< float >	window_
	Access the sliding window values (ring buffer implementation) Use: for (size_t i = 0; i < window_count_; i++) { float val = window_[i]; }.
size_t	window_head_ {0}
	Index where next value will be written.
size_t	window_count_ {0}
	Number of valid values in window (0 to window_size_)
size_t	window_size_
	Maximum window size.
size_t	send_every_
	Send result every N values.
size_t	send_at_
	Counter for send_every.
Protected Attributes inherited from esphome::sensor::Filter
friend	Sensor
Filter *	next_ {nullptr}
Sensor *	parent_ {nullptr}

Detailed Description

Base class for filters that use a sliding window of values.

Uses a ring buffer to efficiently maintain a fixed-size sliding window without reallocations or pop_front() overhead. Eliminates deque fragmentation issues.

Definition at line 53 of file filter.h.

Constructor & Destructor Documentation

SlidingWindowFilter()

esphome::sensor::SlidingWindowFilter::SlidingWindowFilter	(	size_t	window_size,
		size_t	send_every,
		size_t	send_first_at )

Definition at line 44 of file filter.cpp.

Member Function Documentation

compute_result()

virtual float esphome::sensor::SlidingWindowFilter::compute_result ( )

protectedpure virtual

Called by new_value() to compute the filtered result from the current window.

Implemented in esphome::sensor::MaxFilter, esphome::sensor::MedianFilter, esphome::sensor::MinFilter, esphome::sensor::QuantileFilter, and esphome::sensor::SlidingWindowMovingAverageFilter.

new_value()

optional< float > esphome::sensor::SlidingWindowFilter::new_value ( float value )

finalvirtual

Implements esphome::sensor::Filter.

Definition at line 50 of file filter.cpp.

Field Documentation

send_at_

size_t esphome::sensor::SlidingWindowFilter::send_at_

protected

Counter for send_every.

Definition at line 70 of file filter.h.

send_every_

size_t esphome::sensor::SlidingWindowFilter::send_every_

protected

Send result every N values.

Definition at line 69 of file filter.h.

window_

FixedVector<float> esphome::sensor::SlidingWindowFilter::window_

protected

Access the sliding window values (ring buffer implementation) Use: for (size_t i = 0; i < window_count_; i++) { float val = window_[i]; }.

Definition at line 65 of file filter.h.

window_count_

size_t esphome::sensor::SlidingWindowFilter::window_count_ {0}

protected

Number of valid values in window (0 to window_size_)

Definition at line 67 of file filter.h.

window_head_

size_t esphome::sensor::SlidingWindowFilter::window_head_ {0}

protected

Index where next value will be written.

Definition at line 66 of file filter.h.

window_size_

size_t esphome::sensor::SlidingWindowFilter::window_size_

protected

Maximum window size.

Definition at line 68 of file filter.h.

---

The documentation for this class was generated from the following files:

• esphome/components/sensor/filter.h
• esphome/components/sensor/filter.cpp
