#include <tcl112.h>

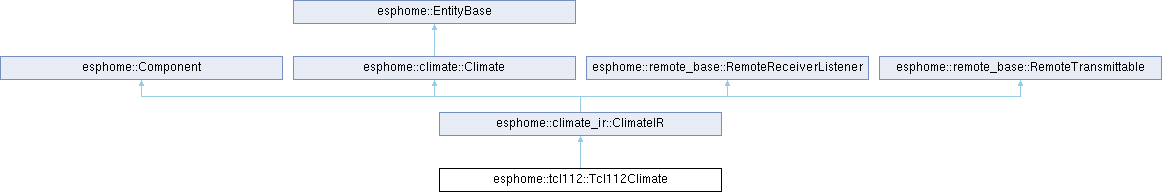

Inheritance diagram for esphome::tcl112::Tcl112Climate:

Public Member Functions
	Tcl112Climate ()

Public Member Functions inherited from esphome::climate_ir::ClimateIR
	ClimateIR (float minimum_temperature, float maximum_temperature, float temperature_step=1.0f, bool supports_dry=false, bool supports_fan_only=false, std::set< climate::ClimateFanMode > fan_modes={}, std::set< climate::ClimateSwingMode > swing_modes={}, std::set< climate::ClimatePreset > presets={})

void	setup () override

void	dump_config () override

void	set_supports_cool (bool supports_cool)

void	set_supports_heat (bool supports_heat)

void	set_sensor (sensor::Sensor *sensor)

Public Member Functions inherited from esphome::Component
virtual void	loop ()
	This method will be called repeatedly.

virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

uint32_t	get_component_state () const

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message="unspecified")

void	status_set_error (const char *message="unspecified")

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Public Member Functions inherited from esphome::climate::Climate
	Climate ()

void	add_on_state_callback (std::function< void(Climate &)> &&callback)
	Add a callback for the climate device state, each time the state of the climate device is updated (using publish_state), this callback will be called.

void	add_on_control_callback (std::function< void(ClimateCall &)> &&callback)
	Add a callback for the climate device configuration; each time the configuration parameters of a climate device is updated (using perform() of a ClimateCall), this callback will be called, before any on_state callback.

ClimateCall	make_call ()
	Make a climate device control call, this is used to control the climate device, see the ClimateCall description for more info.

void	publish_state ()
	Publish the state of the climate device, to be called from integrations.

ClimateTraits	get_traits ()
	Get the traits of this climate device with all overrides applied.

void	set_visual_min_temperature_override (float visual_min_temperature_override)

void	set_visual_max_temperature_override (float visual_max_temperature_override)

void	set_visual_temperature_step_override (float target, float current)

void	set_visual_min_humidity_override (float visual_min_humidity_override)

void	set_visual_max_humidity_override (float visual_max_humidity_override)

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

bool	has_own_name () const

std::string	get_object_id () const

void	set_object_id (const char *object_id)

uint32_t	get_object_id_hash ()

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

std::string	get_icon () const

void	set_icon (const char *icon)

Public Member Functions inherited from esphome::remote_base::RemoteReceiverListener
Public Member Functions inherited from esphome::remote_base::RemoteTransmittable
	RemoteTransmittable ()

	RemoteTransmittable (RemoteTransmitterBase *transmitter)

void	set_transmitter (RemoteTransmitterBase *transmitter)

Protected Member Functions
void	transmit_state () override
	Transmit via IR the state of this climate controller.

bool	on_receive (remote_base::RemoteReceiveData data) override
	Handle received IR Buffer.

Protected Member Functions inherited from esphome::climate_ir::ClimateIR
void	control (const climate::ClimateCall &call) override
	Override control to change settings of the climate device.

climate::ClimateTraits	traits () override
	Return the traits of this controller.

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_setup ()

virtual void	call_dump_config ()

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Member Functions inherited from esphome::climate::Climate
bool	set_fan_mode_ (ClimateFanMode mode)
	Set fan mode. Reset custom fan mode. Return true if fan mode has been changed.

bool	set_custom_fan_mode_ (const std::string &mode)
	Set custom fan mode. Reset primary fan mode. Return true if fan mode has been changed.

bool	set_preset_ (ClimatePreset preset)
	Set preset. Reset custom preset. Return true if preset has been changed.

bool	set_custom_preset_ (const std::string &preset)
	Set custom preset. Reset primary preset. Return true if preset has been changed.

optional< ClimateDeviceRestoreState >	restore_state_ ()
	Restore the state of the climate device, call this from your setup() method.

void	save_state_ ()
	Internal method to save the state of the climate device to recover memory.

void	dump_traits_ (const char *tag)

Protected Member Functions inherited from esphome::EntityBase
virtual uint32_t	hash_base ()
	The hash_base() function has been deprecated.

void	calc_object_id_ ()

Protected Member Functions inherited from esphome::remote_base::RemoteTransmittable
template<typename Protocol >
void	transmit_ (const typename Protocol::ProtocolData &data, uint32_t send_times=1, uint32_t send_wait=0)

Additional Inherited Members
Data Fields inherited from esphome::climate::Climate
ClimateMode	mode {CLIMATE_MODE_OFF}
	The active mode of the climate device.

ClimateAction	action {CLIMATE_ACTION_OFF}
	The active state of the climate device.

float	current_temperature {NAN}
	The current temperature of the climate device, as reported from the integration.

float	current_humidity {NAN}
	The current humidity of the climate device, as reported from the integration.

union {

float target_temperature
	The target temperature of the climate device. More...

struct {

float target_temperature_low {NAN}
	The minimum target temperature of the climate device, for climate devices with split target temperature. More...

float target_temperature_high {NAN}
	The maximum target temperature of the climate device, for climate devices with split target temperature. More...

}

};

float	target_humidity
	The target humidity of the climate device.

optional< ClimateFanMode >	fan_mode
	The active fan mode of the climate device.

ClimateSwingMode	swing_mode
	The active swing mode of the climate device.

optional< std::string >	custom_fan_mode
	The active custom fan mode of the climate device.

optional< ClimatePreset >	preset
	The active preset of the climate device.

optional< std::string >	custom_preset
	The active custom preset mode of the climate device.

Protected Attributes inherited from esphome::climate_ir::ClimateIR
float	minimum_temperature_

float	maximum_temperature_

float	temperature_step_

bool	supports_cool_ {true}

bool	supports_heat_ {true}

bool	supports_dry_ {false}

bool	supports_fan_only_ {false}

std::set< climate::ClimateFanMode >	fan_modes_ = {}

std::set< climate::ClimateSwingMode >	swing_modes_ = {}

std::set< climate::ClimatePreset >	presets_ = {}

sensor::Sensor *	sensor_ {nullptr}

Protected Attributes inherited from esphome::Component
uint32_t	component_state_ {0x0000}
	State of this component.

float	setup_priority_override_ {NAN}

const char *	component_source_ {nullptr}

uint32_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}

std::string	error_message_ {}

Protected Attributes inherited from esphome::climate::Climate
friend	ClimateCall

CallbackManager< void(Climate &)>	state_callback_ {}

CallbackManager< void(ClimateCall &)>	control_callback_ {}

ESPPreferenceObject	rtc_

optional< float >	visual_min_temperature_override_ {}

optional< float >	visual_max_temperature_override_ {}

optional< float >	visual_target_temperature_step_override_ {}

optional< float >	visual_current_temperature_step_override_ {}

optional< float >	visual_min_humidity_override_ {}

optional< float >	visual_max_humidity_override_ {}

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	object_id_c_str_ {nullptr}

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_

bool	has_own_name_ {false}

bool	internal_ {false}

bool	disabled_by_default_ {false}

EntityCategory	entity_category_ {ENTITY_CATEGORY_NONE}

Protected Attributes inherited from esphome::remote_base::RemoteTransmittable
RemoteTransmitterBase *	transmitter_

Detailed Description

Definition at line 12 of file tcl112.h.

Constructor & Destructor Documentation

◆ Tcl112Climate()

esphome::tcl112::Tcl112Climate::Tcl112Climate ( )

inline

Definition at line 14 of file tcl112.h.

Member Function Documentation

◆ on_receive()

bool esphome::tcl112::Tcl112Climate::on_receive ( remote_base::RemoteReceiveData data )

overrideprotectedvirtual

Handle received IR Buffer.

Reimplemented from esphome::climate_ir::ClimateIR.

Definition at line 146 of file tcl112.cpp.

◆ transmit_state()

void esphome::tcl112::Tcl112Climate::transmit_state ( )

overrideprotectedvirtual

Transmit via IR the state of this climate controller.

Implements esphome::climate_ir::ClimateIR.

Definition at line 35 of file tcl112.cpp.

The documentation for this class was generated from the following files:

esphome/components/tcl112/tcl112.h
esphome/components/tcl112/tcl112.cpp
