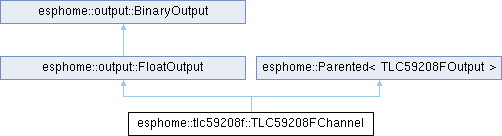

Inheritance diagram for esphome::tlc59208f::TLC59208FChannel:

Public Member Functions
void	set_channel (uint8_t channel)

Public Member Functions inherited from esphome::output::FloatOutput
void	set_max_power (float max_power)
	Set the maximum power output of this component.

void	set_min_power (float min_power)
	Set the minimum power output of this component.

void	set_zero_means_zero (bool zero_means_zero)
	Sets this output to ignore min_power for a 0 state.

void	set_level (float state)
	Set the level of this float output, this is called from the front-end.

virtual void	update_frequency (float frequency)
	Set the frequency of the output for PWM outputs.

float	get_max_power () const
	Get the maximum power output.

float	get_min_power () const
	Get the minimum power output.

Public Member Functions inherited from esphome::output::BinaryOutput
void	set_inverted (bool inverted)
	Set the inversion state of this binary output.

void	set_power_supply (power_supply::PowerSupply *power_supply)
	Use this to connect up a power supply to this output.

virtual void	set_state (bool state)
	Enable or disable this binary output.

virtual void	turn_on ()
	Enable this binary output.

virtual void	turn_off ()
	Disable this binary output.

bool	is_inverted () const
	Return whether this binary output is inverted.

Public Member Functions inherited from esphome::Parented< TLC59208FOutput >
	Parented ()

	Parented (TLC59208FOutput *parent)

TLC59208FOutput *	get_parent () const
	Get the parent of this object.

void	set_parent (TLC59208FOutput *parent)
	Set the parent of this object.

Protected Member Functions
void	write_state (float state) override

Protected Member Functions inherited from esphome::output::FloatOutput
void	write_state (bool state) override
	Implement BinarySensor's write_enabled; this should never be called.

Protected Member Functions inherited from esphome::output::BinaryOutput

Protected Attributes
uint8_t	channel_

Protected Attributes inherited from esphome::output::FloatOutput
float	max_power_ {1.0f}

float	min_power_ {0.0f}

bool	zero_means_zero_

Protected Attributes inherited from esphome::output::BinaryOutput
bool	inverted_ {false}

power_supply::PowerSupplyRequester	power_ {}

Protected Attributes inherited from esphome::Parented< TLC59208FOutput >
TLC59208FOutput *	parent_

Detailed Description

Definition at line 25 of file tlc59208f_output.h.

Member Function Documentation

void esphome::tlc59208f::TLC59208FChannel::set_channel ( uint8_t channel )

inline

Definition at line 27 of file tlc59208f_output.h.

void esphome::tlc59208f::TLC59208FChannel::write_state ( float state )

overrideprotectedvirtual

Definition at line 148 of file tlc59208f_output.cpp.

uint8_t esphome::tlc59208f::TLC59208FChannel::channel_

protected

Definition at line 34 of file tlc59208f_output.h.

The documentation for this class was generated from the following files:
