esphome::InternalGPIOPin Class Reference

#include <gpio.h>

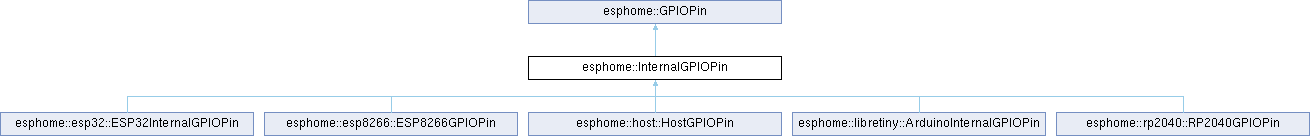

Inheritance diagram for esphome::InternalGPIOPin:

Public Member Functions
template<typename T >
void	attach_interrupt (void(*func)(T *), T *arg, gpio::InterruptType type) const
virtual void	detach_interrupt () const =0
virtual ISRInternalGPIOPin	to_isr () const =0
virtual uint8_t	get_pin () const =0
bool	is_internal () override
virtual bool	is_inverted () const =0
Public Member Functions inherited from esphome::GPIOPin
virtual void	setup ()=0
virtual void	pin_mode (gpio::Flags flags)=0
virtual gpio::Flags	get_flags () const =0
	Retrieve GPIO pin flags.
virtual bool	digital_read ()=0
virtual void	digital_write (bool value)=0
virtual size_t	dump_summary (char *buffer, size_t len) const
	Write a summary of this pin to the provided buffer.

Protected Member Functions
virtual void	attach_interrupt (void(*func)(void *), void *arg, gpio::InterruptType type) const =0

Additional Inherited Members
Data Fields inherited from esphome::GPIOPin
virtual ESPDEPRECATED("Override dump_summary(char*, size_t) instead. Will be removed in 2026.7.0.", "2026.1.0") virtual std boo	is_internal )()
	Get a summary of this pin as a string.

Detailed Description

Definition at line 105 of file gpio.h.

Member Function Documentation

attach_interrupt() [1/2]

template<typename T >

void esphome::InternalGPIOPin::attach_interrupt ( void(* func )(T *), T * arg, gpio::InterruptType type ) const

inline

Definition at line 107 of file gpio.h.

attach_interrupt() [2/2]

virtual void esphome::InternalGPIOPin::attach_interrupt ( void(* func )(void *), void * arg, gpio::InterruptType type ) const

protectedpure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::rp2040::RP2040GPIOPin, and esphome::zephyr::ZephyrGPIOPin.

detach_interrupt()

virtual void esphome::InternalGPIOPin::detach_interrupt ( ) const

pure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::rp2040::RP2040GPIOPin, and esphome::zephyr::ZephyrGPIOPin.

get_pin()

virtual uint8_t esphome::InternalGPIOPin::get_pin ( ) const

pure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::rp2040::RP2040GPIOPin, and esphome::zephyr::ZephyrGPIOPin.

is_internal()

bool esphome::InternalGPIOPin::is_internal ( )

inlineoverride

Definition at line 117 of file gpio.h.

is_inverted()

virtual bool esphome::InternalGPIOPin::is_inverted ( ) const

pure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::rp2040::RP2040GPIOPin, and esphome::zephyr::ZephyrGPIOPin.

to_isr()

virtual ISRInternalGPIOPin esphome::InternalGPIOPin::to_isr ( ) const

pure virtual

Implemented in esphome::esp32::ESP32InternalGPIOPin, esphome::esp8266::ESP8266GPIOPin, esphome::host::HostGPIOPin, esphome::libretiny::ArduinoInternalGPIOPin, esphome::rp2040::RP2040GPIOPin, and esphome::zephyr::ZephyrGPIOPin.

---

The documentation for this class was generated from the following file:

• esphome/core/gpio.h
