Abstract camera base class. More...

#include <camera.h>

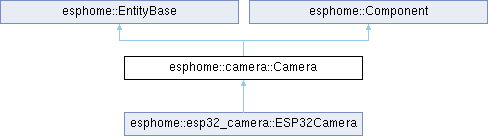

Inheritance diagram for esphome::camera::Camera:

Public Member Functions
	Camera ()

virtual void	add_image_callback (std::function< void(std::shared_ptr< CameraImage >)> &&callback)=0

virtual CameraImageReader *	create_image_reader ()=0
	Returns a new camera image reader that keeps track of the JPEG data in the camera image.

virtual void	request_image (CameraRequester requester)=0

virtual void	start_stream (CameraRequester requester)=0

virtual void	stop_stream (CameraRequester requester)=0

virtual	~Camera ()

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

bool	has_own_name () const

std::string	get_object_id () const

void	set_object_id (const char *object_id)

uint32_t	get_object_id_hash ()

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

std::string	get_icon () const

void	set_icon (const char *icon)

uint32_t	get_device_id () const

void	set_device (Device *device)

bool	has_state () const

void	set_has_state (bool state)

Public Member Functions inherited from esphome::Component
virtual void	setup ()
	Where the component's initialization should happen.

virtual void	loop ()
	This method will be called repeatedly.

virtual void	dump_config ()

virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message="unspecified")

void	status_set_error (const char *message="unspecified")

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Static Public Member Functions
static Camera *	instance ()
	The singleton instance of the camera implementation.

Static Protected Attributes
static Camera *	global_camera = nullptr

Additional Inherited Members
Protected Member Functions inherited from esphome::EntityBase
virtual uint32_t	hash_base ()
	The hash_base() function has been deprecated.

void	calc_object_id_ ()

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_setup ()

virtual void	call_dump_config ()

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	object_id_c_str_ {nullptr}

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Protected Attributes inherited from esphome::Component
const char *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-1: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED) Bit 2: STATUS_LED_WARNING Bit 3: STATUS_LED_ERROR Bits 4-7: Unused - reserved for future expansion (50% of the bits are free)

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Detailed Description

Abstract camera base class.

Collaborates with API. 1) API server starts and installs callback (add_image_callback) which is called by the camera when a new image is available. 2) New API client connects and creates a new image reader (create_image_reader). 3) API connection receives protobuf CameraImageRequest and calls request_image. 3.a) API connection receives protobuf CameraImageRequest and calls start_stream. 4) Camera implementation provides JPEG data in the CameraImage and calls callback. 5) API connection sets the image in the image reader. 6) API connection consumes data from the image reader and returns the image when finished. 7.a) Camera captures a new image and continues with 4) until start_stream is called.

Definition at line 57 of file camera.h.

Constructor & Destructor Documentation

◆ Camera()

esphome::camera::Camera::Camera ( )

Definition at line 9 of file camera.cpp.

◆ ~Camera()

virtual esphome::camera::Camera::~Camera ( )

inlinevirtual

Definition at line 70 of file camera.h.

Member Function Documentation

◆ add_image_callback()

virtual void esphome::camera::Camera::add_image_callback ( std::function< void(std::shared_ptr< CameraImage >)> && callback )

pure virtual

◆ create_image_reader()

virtual CameraImageReader * esphome::camera::Camera::create_image_reader ( )

pure virtual

Returns a new camera image reader that keeps track of the JPEG data in the camera image.

Implemented in esphome::esp32_camera::ESP32Camera.

◆ instance()

Camera * esphome::camera::Camera::instance ( )

static

The singleton instance of the camera implementation.

Definition at line 19 of file camera.cpp.

◆ request_image()

virtual void esphome::camera::Camera::request_image ( CameraRequester requester )

pure virtual

Implemented in esphome::esp32_camera::ESP32Camera.

◆ start_stream()

virtual void esphome::camera::Camera::start_stream ( CameraRequester requester )

pure virtual

Implemented in esphome::esp32_camera::ESP32Camera.

◆ stop_stream()

virtual void esphome::camera::Camera::stop_stream ( CameraRequester requester )

pure virtual

Implemented in esphome::esp32_camera::ESP32Camera.

Field Documentation

◆ global_camera

Camera * esphome::camera::Camera::global_camera = nullptr

staticprotected

Definition at line 76 of file camera.h.

The documentation for this class was generated from the following files:

esphome/components/camera/camera.h
esphome/components/camera/camera.cpp
