#include <canbus.h>

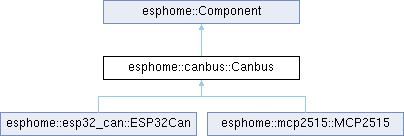

Inheritance diagram for esphome::canbus::Canbus:

Public Member Functions
	Canbus ()

void	setup () override

void	dump_config () override

float	get_setup_priority () const override

void	loop () override

void	send_data (uint32_t can_id, bool use_extended_id, bool remote_transmission_request, const std::vector< uint8_t > &data)

void	send_data (uint32_t can_id, bool use_extended_id, const std::vector< uint8_t > &data)

void	set_can_id (uint32_t can_id)

void	set_use_extended_id (bool use_extended_id)

void	set_bitrate (CanSpeed bit_rate)

void	add_trigger (CanbusTrigger *trigger)

void	add_callback (std::function< void(uint32_t can_id, bool extended_id, bool rtr, const std::vector< uint8_t > &data)> callback)
	Add a callback to be called when a CAN message is received.

Public Member Functions inherited from esphome::Component
float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

uint32_t	get_component_state () const

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message="unspecified")

void	status_set_error (const char *message="unspecified")

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Protected Member Functions
virtual bool	setup_internal ()

virtual Error	send_message (struct CanFrame *frame)

virtual Error	read_message (struct CanFrame *frame)

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_setup ()

virtual void	call_dump_config ()

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
std::vector< CanbusTrigger * >	triggers_ {}

uint32_t	can_id_

bool	use_extended_id_

CanSpeed	bit_rate_

CallbackManager< void(uint32_t can_id, bool extended_id, bool rtr, const std::vector< uint8_t > &data)>	callback_manager_ {}

Protected Attributes inherited from esphome::Component
uint32_t	component_state_ {0x0000}
	State of this component.

float	setup_priority_override_ {NAN}

const char *	component_source_ {nullptr}

uint32_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}

std::string	error_message_ {}

Detailed Description

Definition at line 65 of file canbus.h.

Constructor & Destructor Documentation

◆ Canbus()

esphome::canbus::Canbus::Canbus ( )

inline

Definition at line 67 of file canbus.h.

Member Function Documentation

◆ add_callback()

void esphome::canbus::Canbus::add_callback ( std::function< void(uint32_t can_id, bool extended_id, bool rtr, const std::vector< uint8_t > &data)> callback )

inline

Add a callback to be called when a CAN message is received.

All received messages are passed to the callback without filtering.

The callback function receives:

can_id of the received data
extended_id True if the can_id is an extended id
rtr If this is a remote transmission request
data The message data

Definition at line 94 of file canbus.h.

◆ add_trigger()

void esphome::canbus::Canbus::add_trigger ( CanbusTrigger * trigger )

Definition at line 58 of file canbus.cpp.

◆ dump_config()

void esphome::canbus::Canbus::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 17 of file canbus.cpp.

◆ get_setup_priority()

float esphome::canbus::Canbus::get_setup_priority ( ) const

inlineoverridevirtual

Reimplemented from esphome::Component.

Definition at line 70 of file canbus.h.

◆ loop()

void esphome::canbus::Canbus::loop ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 67 of file canbus.cpp.

◆ read_message()

virtual Error esphome::canbus::Canbus::read_message ( struct CanFrame * frame )

protectedvirtual

Reimplemented in esphome::esp32_can::ESP32Can, and esphome::mcp2515::MCP2515.

◆ send_data() [1/2]

void esphome::canbus::Canbus::send_data	(	uint32_t	can_id,
		bool	use_extended_id,
		bool	remote_transmission_request,
		const std::vector< uint8_t > &	data )

Definition at line 25 of file canbus.cpp.

◆ send_data() [2/2]

void esphome::canbus::Canbus::send_data	(	uint32_t	can_id,
		bool	use_extended_id,
		const std::vector< uint8_t > &	data )

inline

Definition at line 75 of file canbus.h.

◆ send_message()

virtual Error esphome::canbus::Canbus::send_message ( struct CanFrame * frame )

protectedvirtual

Reimplemented in esphome::esp32_can::ESP32Can, and esphome::mcp2515::MCP2515.

◆ set_bitrate()

void esphome::canbus::Canbus::set_bitrate ( CanSpeed bit_rate )

inline

Definition at line 81 of file canbus.h.

◆ set_can_id()

void esphome::canbus::Canbus::set_can_id ( uint32_t can_id )

inline

Definition at line 79 of file canbus.h.

◆ set_use_extended_id()

void esphome::canbus::Canbus::set_use_extended_id ( bool use_extended_id )

inline

Definition at line 80 of file canbus.h.

◆ setup()

void esphome::canbus::Canbus::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 9 of file canbus.cpp.

◆ setup_internal()

virtual bool esphome::canbus::Canbus::setup_internal ( )

protectedvirtual

Reimplemented in esphome::esp32_can::ESP32Can, and esphome::mcp2515::MCP2515.

Field Documentation

◆ bit_rate_

CanSpeed esphome::canbus::Canbus::bit_rate_

protected

Definition at line 104 of file canbus.h.

◆ callback_manager_

CallbackManager<void(uint32_t can_id, bool extended_id, bool rtr, const std::vector<uint8_t> &data)> esphome::canbus::Canbus::callback_manager_ {}

protected

Definition at line 106 of file canbus.h.

◆ can_id_

uint32_t esphome::canbus::Canbus::can_id_

protected

Definition at line 102 of file canbus.h.

◆ triggers_

std::vector<CanbusTrigger *> esphome::canbus::Canbus::triggers_ {}

protected

Definition at line 101 of file canbus.h.

◆ use_extended_id_

bool esphome::canbus::Canbus::use_extended_id_

protected

Definition at line 103 of file canbus.h.

The documentation for this class was generated from the following files:

esphome/components/canbus/canbus.h
esphome/components/canbus/canbus.cpp
