esphome::light::LightEffect Class Reference

#include <light_effect.h>

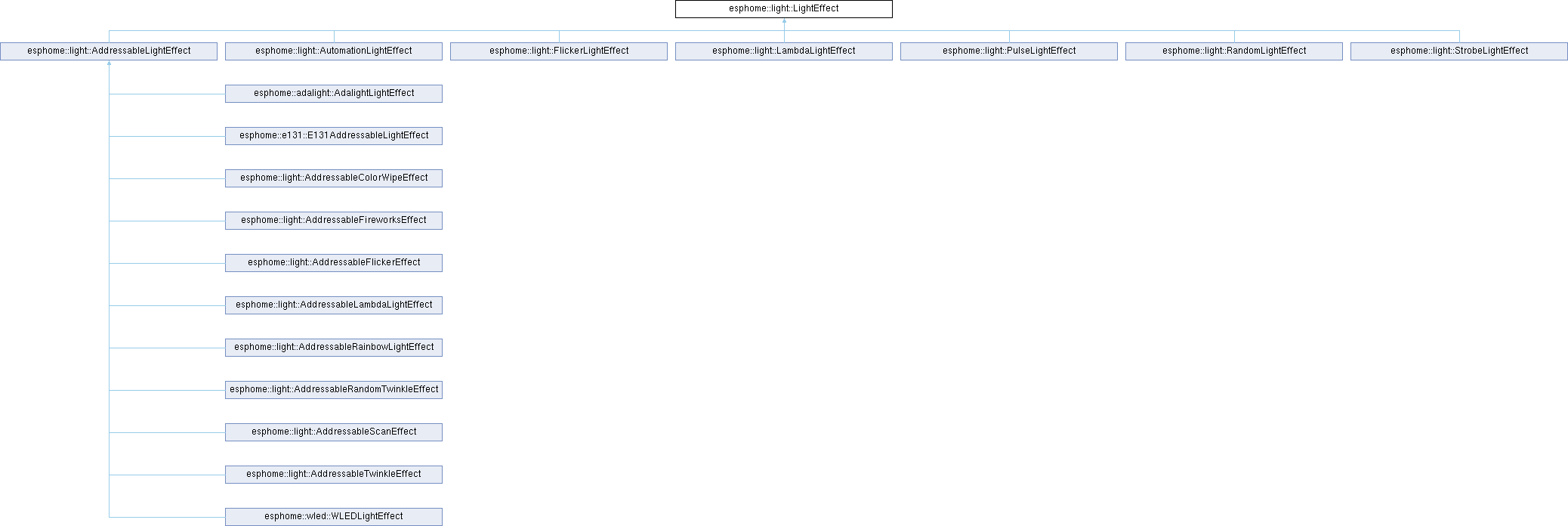

Inheritance diagram for esphome::light::LightEffect:

Public Member Functions
	LightEffect (std::string name)
virtual void	start ()
	Initialize this LightEffect. Will be called once after creation.
virtual void	start_internal ()
virtual void	stop ()
	Called when this effect is about to be removed.
virtual void	apply ()=0
	Apply this effect. Use the provided state for starting transitions, ...
const std::string &	get_name ()
virtual void	init ()
	Internal method called by the LightState when this light effect is registered in it.
void	init_internal (LightState *state)
uint32_t	get_index () const
	Get the index of this effect in the parent light's effect list.
bool	is_active () const
	Check if this effect is currently active.
LightState *	get_light_state () const
	Get a reference to the parent light state.

Protected Member Functions
uint32_t	get_index_in_parent_ () const
	Internal method to find this effect's index in the parent light's effect list.

Protected Attributes
LightState *	state_ {nullptr}
std::string	name_

Detailed Description

Definition at line 12 of file light_effect.h.

Constructor & Destructor Documentation

LightEffect()

esphome::light::LightEffect::LightEffect ( std::string name )

inlineexplicit

Definition at line 14 of file light_effect.h.

Member Function Documentation

apply()

virtual void esphome::light::LightEffect::apply ( )

pure virtual

Apply this effect. Use the provided state for starting transitions, ...

Implemented in esphome::light::AddressableLightEffect, esphome::light::AutomationLightEffect, esphome::light::FlickerLightEffect, esphome::light::LambdaLightEffect, esphome::light::PulseLightEffect, esphome::light::RandomLightEffect, and esphome::light::StrobeLightEffect.

get_index()

uint32_t esphome::light::LightEffect::get_index

(

)

const

Get the index of this effect in the parent light's effect list.

Returns 0 if not found or not initialized.

Definition at line 7 of file light_effect.cpp.

get_index_in_parent_()

uint32_t esphome::light::LightEffect::get_index_in_parent_ ( ) const

protected

Internal method to find this effect's index in the parent light's effect list.

Definition at line 21 of file light_effect.cpp.

get_light_state()

LightState * esphome::light::LightEffect::get_light_state ( ) const

inline

Get a reference to the parent light state.

Returns nullptr if not initialized.

Definition at line 46 of file light_effect.h.

get_name()

const std::string & esphome::light::LightEffect::get_name ( )

inline

Definition at line 27 of file light_effect.h.

init()

virtual void esphome::light::LightEffect::init ( )

inlinevirtual

Internal method called by the LightState when this light effect is registered in it.

Definition at line 30 of file light_effect.h.

init_internal()

void esphome::light::LightEffect::init_internal ( LightState * state )

inline

Definition at line 32 of file light_effect.h.

is_active()

bool esphome::light::LightEffect::is_active

(

)

const

Check if this effect is currently active.

Definition at line 14 of file light_effect.cpp.

start()

virtual void esphome::light::LightEffect::start ( )

inlinevirtual

Initialize this LightEffect. Will be called once after creation.

Reimplemented in esphome::adalight::AdalightLightEffect, esphome::e131::E131AddressableLightEffect, esphome::light::AddressableFireworksEffect, esphome::light::AddressableLambdaLightEffect, esphome::light::LambdaLightEffect, and esphome::wled::WLEDLightEffect.

Definition at line 17 of file light_effect.h.

start_internal()

virtual void esphome::light::LightEffect::start_internal ( )

inlinevirtual

Reimplemented in esphome::light::AddressableLightEffect.

Definition at line 19 of file light_effect.h.

stop()

virtual void esphome::light::LightEffect::stop ( )

inlinevirtual

Called when this effect is about to be removed.

Reimplemented in esphome::adalight::AdalightLightEffect, esphome::e131::E131AddressableLightEffect, esphome::light::AddressableLightEffect, esphome::light::AutomationLightEffect, and esphome::wled::WLEDLightEffect.

Definition at line 22 of file light_effect.h.

Field Documentation

name_

std::string esphome::light::LightEffect::name_

protected

Definition at line 50 of file light_effect.h.

state_

LightState* esphome::light::LightEffect::state_ {nullptr}

protected

Definition at line 49 of file light_effect.h.

---

The documentation for this class was generated from the following files:

• esphome/components/light/light_effect.h
• esphome/components/light/light_effect.cpp
