| | ModbusFloatOutput (uint16_t start_address, uint8_t offset, SensorValueType value_type, int register_count) |
| |
| void | dump_config () override |
| |
| void | set_parent (ModbusController *parent) |
| |
| void | set_write_multiply (float factor) |
| |
| void | parse_and_publish (std::span< const uint8_t > data) override |
| |
| void | set_write_template (write_transform_func_t f) |
| |
| void | set_use_write_mutiple (bool use_write_multiple) |
| |
| void | set_max_power (float max_power) |
| | Set the maximum power output of this component.
|
| |
| void | set_min_power (float min_power) |
| | Set the minimum power output of this component.
|
| |
| void | set_zero_means_zero (bool zero_means_zero) |
| | Sets this output to ignore min_power for a 0 state.
|
| |
| template<bool _use_output_float_power_scaling = false> |
| void | set_max_power (float max_power) |
| |
| template<bool _use_output_float_power_scaling = false> |
| void | set_min_power (float min_power) |
| |
| template<bool _use_output_float_power_scaling = false> |
| void | set_zero_means_zero (bool zero_means_zero) |
| |
| void | set_level (float state) |
| | Set the level of this float output, this is called from the front-end.
|
| |
| virtual void | update_frequency (float frequency) |
| | Set the frequency of the output for PWM outputs.
|
| |
| float | get_max_power () const |
| | Get the maximum power output.
|
| |
| float | get_min_power () const |
| | Get the minimum power output.
|
| |
| float | get_max_power () const |
| | Get the maximum power output.
|
| |
| float | get_min_power () const |
| | Get the minimum power output.
|
| |
| void | set_inverted (bool inverted) |
| | Set the inversion state of this binary output.
|
| |
| void | set_power_supply (power_supply::PowerSupply *power_supply) |
| | Use this to connect up a power supply to this output.
|
| |
| virtual void | set_state (bool state) |
| | Enable or disable this binary output.
|
| |
| virtual void | turn_on () |
| | Enable this binary output.
|
| |
| virtual void | turn_off () |
| | Disable this binary output.
|
| |
| bool | is_inverted () const |
| | Return whether this binary output is inverted.
|
| |
| virtual void | setup () |
| | Where the component's initialization should happen.
|
| |
| virtual void | loop () |
| | This method will be called repeatedly.
|
| |
| virtual float | get_setup_priority () const |
| | priority of setup().
|
| |
| float | get_actual_setup_priority () const |
| |
| void | set_setup_priority (float priority) |
| |
| void | call () |
| |
| virtual void | on_shutdown () |
| |
| virtual void | on_safe_shutdown () |
| |
| virtual bool | teardown () |
| | Called during teardown to allow component to gracefully finish operations.
|
| |
| virtual void | on_powerdown () |
| | Called after teardown is complete to power down hardware.
|
| |
| uint8_t | get_component_state () const |
| |
| void | reset_to_construction_state () |
| | Reset this component back to the construction state to allow setup to run again.
|
| |
| bool | is_in_loop_state () const |
| | Check if this component has completed setup and is in the loop state.
|
| |
| bool | is_idle () const |
| | Check if this component is idle.
|
| |
| void | mark_failed () |
| | Mark this component as failed.
|
| |
| void | mark_failed (const LogString *message) |
| |
| void | disable_loop () |
| | Disable this component's loop.
|
| |
| void | enable_loop () |
| | Enable this component's loop.
|
| |
| void | enable_loop_soon_any_context () |
| | Thread and ISR-safe version of enable_loop() that can be called from any context.
|
| |
| bool | is_failed () const |
| |
| bool | is_ready () const |
| |
| virtual bool | can_proceed () |
| |
| bool | status_has_warning () const |
| |
| bool | status_has_error () const |
| |
| void | status_set_warning () |
| |
| void | status_set_warning (const char *message) |
| |
| void | status_set_warning (const LogString *message) |
| |
| void | status_set_error () |
| |
| void | status_set_error (const LogString *message) |
| |
| void | status_clear_warning () |
| |
| void | status_clear_error () |
| |
| void | status_momentary_warning (const char *name, uint32_t length=5000) |
| | Set warning status flag and automatically clear it after a timeout.
|
| |
| void | status_momentary_error (const char *name, uint32_t length=5000) |
| | Set error status flag and automatically clear it after a timeout.
|
| |
| bool | has_overridden_loop () const |
| |
| const LogString * | get_component_log_str () const ESPHOME_ALWAYS_INLINE |
| | Get the integration where this component was declared as a LogString for logging.
|
| |
| bool | should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out) |
| |
| bool | addresses_bits () const |
| | Coils and discrete inputs address individual bits; every other type addresses 16-bit registers.
|
| |
| uint16_t | write_address () const |
| | Address a write entity (switch/number/select) targets, derived from its resolved position within the range so that a write lands on the register the sensor reads from.
|
| |
| void | set_offset_from_start_address (uint8_t offset) |
| | Records the offset as configured, and seeds the resolved position with it.
|
| |
| void | set_address (uint16_t address) |
| | Sets the configured address, and points the range base at it.
|
| |
| void | set_custom_data (const std::vector< uint8_t > &data) |
| |
| virtual size_t | get_register_size () const |
| |
| void | set_register_size (uint8_t register_size) |
| |
|
| void | write_state (float value) override |
| | Write a value to the device.
|
| |
| void | write_state (bool state) override |
| | Implement BinarySensor's write_enabled; this should never be called.
|
| |
| friend | void::setup () |
| |
| friend | void::original_setup () |
| |
| void | set_component_source_ (uint8_t index) |
| | Set where this component was loaded from for some debug messages.
|
| |
| virtual void | call_setup () |
| |
| void | call_dump_config_ () |
| |
| void | enable_loop_slow_path_ () |
| |
| void | set_component_state_ (uint8_t state) |
| | Helper to set component state (clears state bits and sets new state)
|
| |
| bool | set_status_flag_ (uint8_t flag) |
| | Helper to set a status LED flag on both this component and the app.
|
| |
| void | set_interval (const char *name, uint32_t interval, std::function< void()> &&f) |
| | Set an interval function with a const char* name.
|
| |
| void | set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f) |
| | Set an interval function with a numeric ID (zero heap allocation).
|
| |
| void | set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f) |
| |
| void | set_interval (uint32_t interval, std::function< void()> &&f) |
| |
| bool | cancel_interval (const char *name) |
| | Cancel an interval function.
|
| |
| bool | cancel_interval (uint32_t id) |
| |
| bool | cancel_interval (InternalSchedulerID id) |
| |
| void | set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f) |
| | Set a timeout function with a const char* name.
|
| |
| void | set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f) |
| | Set a timeout function with a numeric ID (zero heap allocation).
|
| |
| void | set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f) |
| |
| void | set_timeout (uint32_t timeout, std::function< void()> &&f) |
| |
| bool | cancel_timeout (const char *name) |
| | Cancel a timeout function.
|
| |
| bool | cancel_timeout (uint32_t id) |
| |
| bool | cancel_timeout (InternalSchedulerID id) |
| |
| void | defer (const char *name, std::function< void()> &&f) |
| | Defer a callback to the next loop() call with a const char* name.
|
| |
| void | defer (std::function< void()> &&f) |
| | Defer a callback to the next loop() call.
|
| |
| void | defer (uint32_t id, std::function< void()> &&f) |
| | Defer a callback with a numeric ID (zero heap allocation)
|
| |
| bool | cancel_defer (const char *name) |
| | Cancel a defer callback using the specified name, name must not be empty.
|
| |
| bool | cancel_defer (uint32_t id) |
| |
| void | status_clear_warning_slow_path_ () |
| |
| void | status_clear_error_slow_path_ () |
| |
Definition at line 11 of file modbus_output.h.

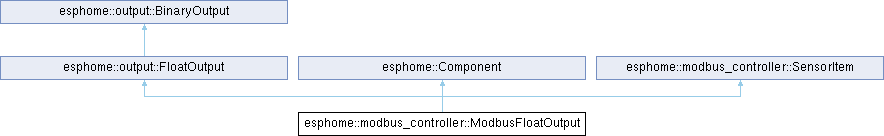

Public Member Functions inherited from esphome::output::FloatOutput
