#include <radon_eye_rd200.h>

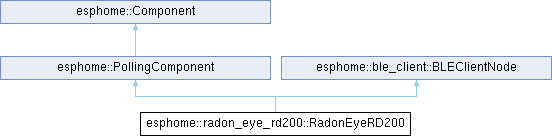

Inheritance diagram for esphome::radon_eye_rd200::RadonEyeRD200:

Data Structures
union	RadonValue

Public Member Functions
	RadonEyeRD200 ()

void	dump_config () override

void	update () override

void	gattc_event_handler (esp_gattc_cb_event_t event, esp_gatt_if_t gattc_if, esp_ble_gattc_cb_param_t *param) override

void	set_radon (sensor::Sensor *radon)

void	set_radon_long_term (sensor::Sensor *radon_long_term)

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
virtual void	setup ()
	Where the component's initialization should happen.

virtual void	loop ()
	This method will be called repeatedly.

virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_warning (const LogString *message)

void	status_set_error (const char *message=nullptr)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const LogString *source)
	Set where this component was loaded from for some debug messages.

const LogString *	get_component_log_str () const
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time)

Public Member Functions inherited from esphome::ble_client::BLEClientNode
virtual void	gap_event_handler (esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t *param)

virtual void	loop ()

void	set_address (uint64_t address)

BLEClient *	parent ()

void	set_ble_client_parent (BLEClient *parent)

Protected Member Functions
bool	is_valid_radon_value_ (float radon)

void	read_sensors_ (uint8_t *value, uint16_t value_len)

void	write_query_message_ ()

void	request_read_values_ ()

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
sensor::Sensor *	radon_sensor_ {nullptr}

sensor::Sensor *	radon_long_term_sensor_ {nullptr}

uint16_t	read_handle_

uint16_t	write_handle_

esp32_ble_tracker::ESPBTUUID	service_uuid_

esp32_ble_tracker::ESPBTUUID	sensors_write_characteristic_uuid_

esp32_ble_tracker::ESPBTUUID	sensors_read_characteristic_uuid_

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
const LogString *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Protected Attributes inherited from esphome::ble_client::BLEClientNode
BLEClient *	parent_

uint64_t	address_

Additional Inherited Members
Data Fields inherited from esphome::ble_client::BLEClientNode
espbt::ESPBTClient *	client

espbt::ClientState	node_state

Detailed Description

Definition at line 21 of file radon_eye_rd200.h.

Constructor & Destructor Documentation

◆ RadonEyeRD200()

esphome::radon_eye_rd200::RadonEyeRD200::RadonEyeRD200 ( )

Definition at line 170 of file radon_eye_rd200.cpp.

Member Function Documentation

◆ dump_config()

void esphome::radon_eye_rd200::RadonEyeRD200::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 165 of file radon_eye_rd200.cpp.

◆ gattc_event_handler()

void esphome::radon_eye_rd200::RadonEyeRD200::gattc_event_handler	(	esp_gattc_cb_event_t	event,
		esp_gatt_if_t	gattc_if,
		esp_ble_gattc_cb_param_t *	param )

overridevirtual

Reimplemented from esphome::ble_client::BLEClientNode.

Definition at line 10 of file radon_eye_rd200.cpp.

◆ is_valid_radon_value_()

bool esphome::radon_eye_rd200::RadonEyeRD200::is_valid_radon_value_ ( float radon )

protected

Definition at line 132 of file radon_eye_rd200.cpp.

◆ read_sensors_()

void esphome::radon_eye_rd200::RadonEyeRD200::read_sensors_	(	uint8_t *	value,
		uint16_t	value_len )

protected

Definition at line 70 of file radon_eye_rd200.cpp.

◆ request_read_values_()

void esphome::radon_eye_rd200::RadonEyeRD200::request_read_values_ ( )

protected

Definition at line 157 of file radon_eye_rd200.cpp.

◆ set_radon()

void esphome::radon_eye_rd200::RadonEyeRD200::set_radon ( sensor::Sensor * radon )

inline

Definition at line 31 of file radon_eye_rd200.h.

◆ set_radon_long_term()

void esphome::radon_eye_rd200::RadonEyeRD200::set_radon_long_term ( sensor::Sensor * radon_long_term )

inline

Definition at line 32 of file radon_eye_rd200.h.

◆ update()

void esphome::radon_eye_rd200::RadonEyeRD200::update ( )

overridevirtual

Implements esphome::PollingComponent.

Definition at line 134 of file radon_eye_rd200.cpp.

◆ write_query_message_()

void esphome::radon_eye_rd200::RadonEyeRD200::write_query_message_ ( )

protected

Definition at line 146 of file radon_eye_rd200.cpp.

Field Documentation

◆ radon_long_term_sensor_

sensor::Sensor* esphome::radon_eye_rd200::RadonEyeRD200::radon_long_term_sensor_ {nullptr}

protected

Definition at line 42 of file radon_eye_rd200.h.

◆ radon_sensor_

sensor::Sensor* esphome::radon_eye_rd200::RadonEyeRD200::radon_sensor_ {nullptr}

protected

Definition at line 41 of file radon_eye_rd200.h.

◆ read_handle_

uint16_t esphome::radon_eye_rd200::RadonEyeRD200::read_handle_

protected

Definition at line 44 of file radon_eye_rd200.h.

◆ sensors_read_characteristic_uuid_

esp32_ble_tracker::ESPBTUUID esphome::radon_eye_rd200::RadonEyeRD200::sensors_read_characteristic_uuid_

protected

Definition at line 48 of file radon_eye_rd200.h.

◆ sensors_write_characteristic_uuid_

esp32_ble_tracker::ESPBTUUID esphome::radon_eye_rd200::RadonEyeRD200::sensors_write_characteristic_uuid_

protected

Definition at line 47 of file radon_eye_rd200.h.

◆ service_uuid_

esp32_ble_tracker::ESPBTUUID esphome::radon_eye_rd200::RadonEyeRD200::service_uuid_

protected

Definition at line 46 of file radon_eye_rd200.h.

◆ write_handle_

uint16_t esphome::radon_eye_rd200::RadonEyeRD200::write_handle_

protected

Definition at line 45 of file radon_eye_rd200.h.

The documentation for this class was generated from the following files:

esphome/components/radon_eye_rd200/radon_eye_rd200.h
esphome/components/radon_eye_rd200/radon_eye_rd200.cpp
